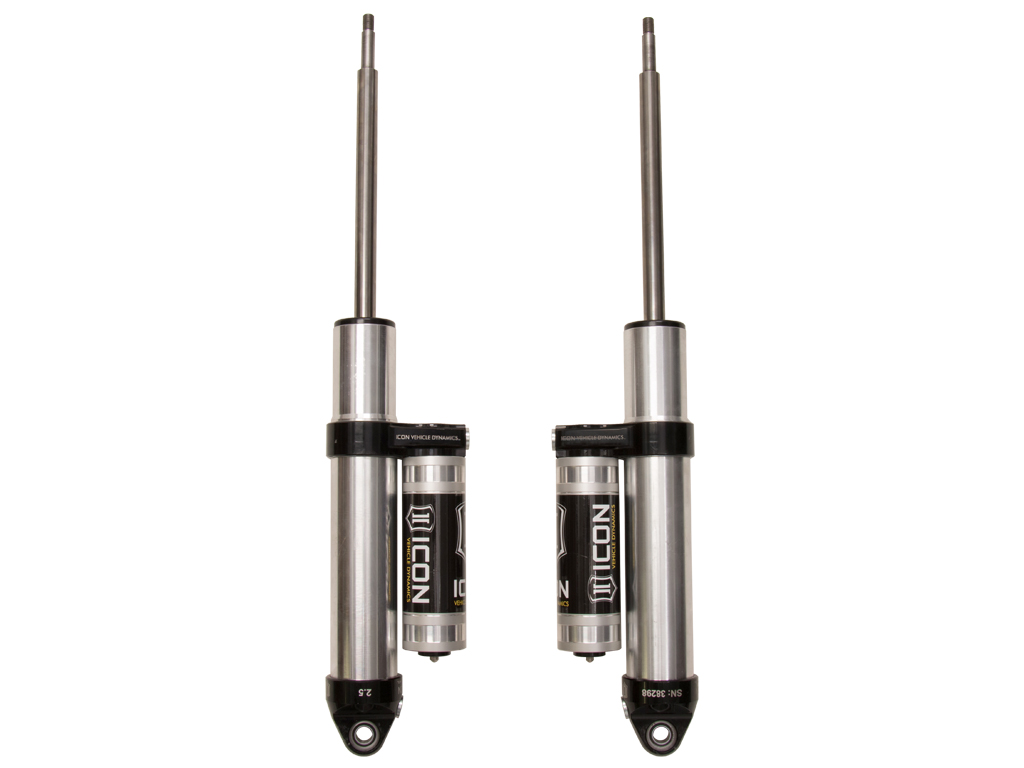

ICON Vehicle Dynamics Suspension Shock Absorber Set - 217704P

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PB PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 217704P
Old price: $1,287.51
$1,226.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Products specifications

Attribute name Attribute value
Adjustable No
Attributed Description ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 16.13 IN; Fully Open Length: 25.16 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Shoulder of Stem; Stroke Length Rear: 9.0 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: Yes
Boot Included No
Bore Diameter 2.25
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Shaft Diameter 0.875
Shock Absorber Rod End Measuring Point Shoulder of Stem
Cylinder Color Silver
Upper Mount Type Stem
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Gas Charged Yes
California Prop 65 Warning Yes
External Reservoir Yes
Cylinder Material Aluminum
Shock Absorber Body End Measuring Point CENTER OF EYELET
Shaft Material Chrome
Lower Mount Type Eyelet
Damping Type Oil
Grade Type Performance
Service Parts 252001 - 2.5 FIXED SPANNER WRENCH, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 257341STEM - 7/8 SHAFT 17.58 OAL, 11.00 TRAVEL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 611006 - 9/16 HD STEM BUSHING KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Country of Origin US
Condition New
🚗 Compatible with
9 vehicles are compatible with this product · 2014–2022
