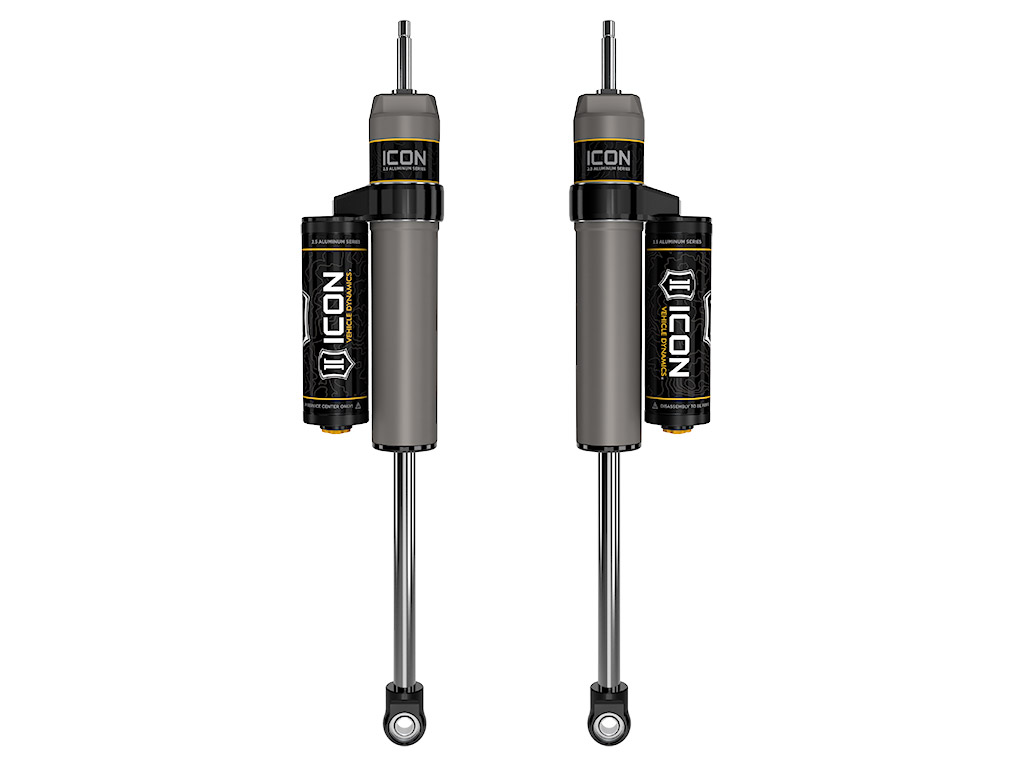

ICON Vehicle Dynamics Suspension Shock Absorber Set - 217716P

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
19-23 RAM 1500 0-3" REAR 2.5 VS PB PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 217716P
Old price: $1,253.17
$1,193.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) equipped shocks.

Note: APPLICATION NOTE #105: Not for vehicles with rear factory air ride

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Adjustable No
Boot Included No
Bore Diameter 2.25
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Shaft Diameter 0.875
Tube Outside Diameter 2.5
Cylinder Diameter 2.5
Upper Mount Type Eyelet
Damping Type Oil
Grade Type Performance
Shock Absorber Body End Measuring Point Shoulder of Stem
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Gas Charged Yes
California Prop 65 Warning Yes
External Reservoir Yes
Cylinder Color Gray
Cylinder Material Aluminum
Shock Absorber Rod End Measuring Point CENTER OF EYELET
Shaft Material Chrome
Valving Type Digressive
Lower Mount Type Eyelet
Add-On Part 211015 - 19-23 RAM 1500 2-3" 2.5 VS RR COILOVER KIT, 212150 - 09-23 RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT, 252001 - 2.5 FIXED SPANNER WRENCH
Country of Origin US
Condition New
🚗 Compatible with
5 vehicles are compatible with this product · 2019–2023
