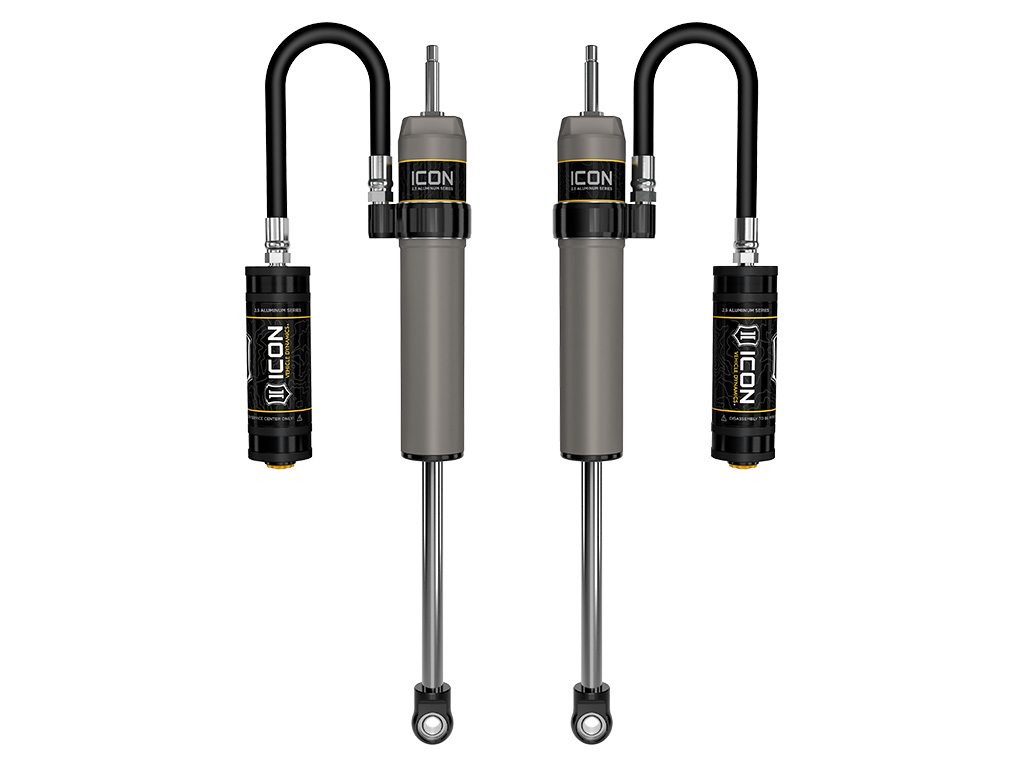

ICON Vehicle Dynamics Suspension Shock Absorber Set - 57800P

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
96-02 4RUNNER REAR 2.5 VS RR PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 57800P
Old price: $1,276.06
$1,215.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 53015 - 96-02 4RUNNER 1" REAR COIL SPRING KIT, 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Shaft Diameter 0.875
Bore Diameter 2.25
Tube Outside Diameter 2.5
Cylinder Diameter 2.5
Cylinder Material Aluminum
Boot Included No
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Damping Type Oil
Grade Type Performance
Reservoir Type Remote
Shock Absorber Body End Measuring Point Shoulder of Stem
Upper Mount Type Stem
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Gas Charged Yes
California Prop 65 Warning Yes
External Reservoir Yes
Shock Absorber Rod End Measuring Point CENTER OF EYELET
Shaft Material Chrome
Valving Type Digressive
Lower Mount Type Eyelet
Cylinder Color Gray
Adjustable No
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
Country of Origin US
Condition New
🚗 Compatible with
7 vehicles are compatible with this product · 1996–2002
