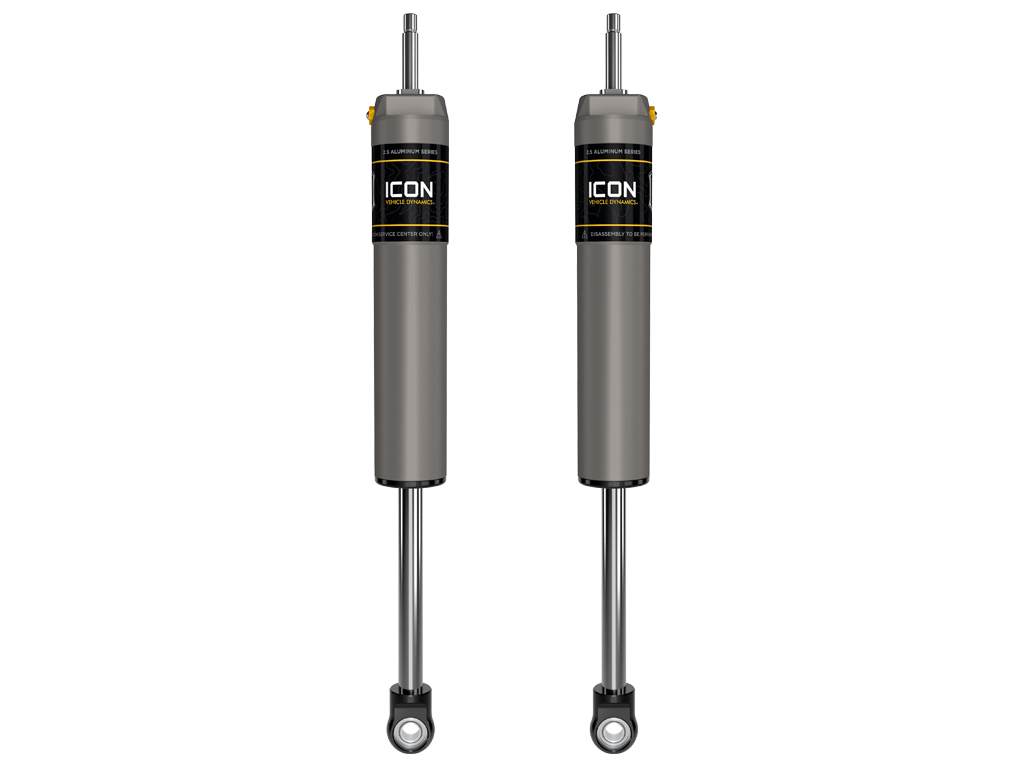

ICON Vehicle Dynamics Suspension Shock Absorber Set - 67620P

Name: ICON Vehicle Dynamics Suspension Shock Absorber Set - 67620P
SKU: 67620P
Price: 812.00 USD
Availability: OutOfStock

05-25 FSD 4WD 7" FRONT 2.5 VS IR PAIR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 67620P

Old price: $852.60

Price: $812.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

Note: APPLICATION NOTE #1: Only fits 4WD models

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0, 252010 - 2.5 IFP REBUILD KIT, 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL, 252004 - ECONOMY NEEDLE CHARGING TOOL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 611006 - 9/16 HD STEM BUSHING KIT, 252001 - 2.5 FIXED SPANNER WRENCH
Shaft Diameter	0.875
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Rod End Measuring Point	Center of Eylet
Tube Outside Diameter	2.5
Upper Mount Type	Stem
Valving Type	Digressive
Active or Passive Suspension	Passive
Adjustable	No
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Attributed Description	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Boot Included	No
Bore Diameter	2.25
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color	Gray
Cylinder Diameter	2.5
Cylinder Material	Aluminum
Damping Type	Oil
External Reservoir	No
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Lower Mount Type	Eyelet
Mounting Hardware Included	Yes
Reservoir Type	Internal
Country of Origin	US
Condition	New
