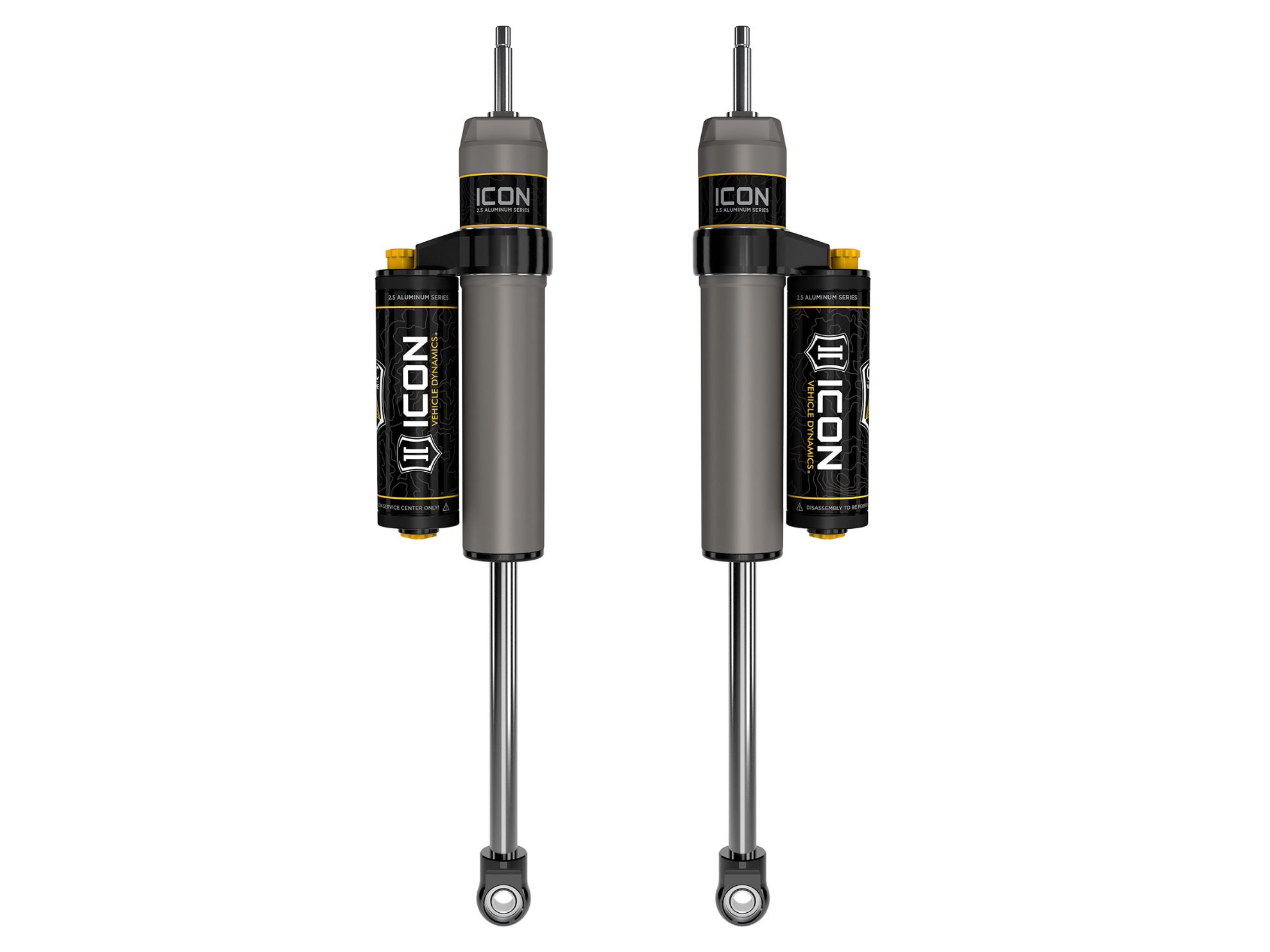

ICON Vehicle Dynamics Suspension Shock Absorber Set - 67720CP

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
05-25 FSD 4WD 7" FRONT 2.5 VS PB CDCV PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 67720CP
Old price: $1,602.24
$1,525.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Note: OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Products specifications

Attribute name Attribute value
Active or Passive Suspension Passive
Adjustable Yes
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color Gray
Cylinder Diameter 2.5
Cylinder Material Aluminum
Damping Adjustment Type Manual
Damping Type Oil
External Reservoir Yes
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Lower Mount Type Eyelet
Mounting Hardware Included Yes
OEM Wheels & Tires Fitment Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Reservoir Type Piggyback
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257341S - 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter 0.875
Shaft Material Chrome
Shock Absorber Body End Measuring Point Shoulder of Stem
Shock Absorber Rod End Measuring Point Center of Eylet
Tube Outside Diameter 2.5
Upper Mount Type Stem
Valving Type Digressive
Boot Included No
Bore Diameter 2.25
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Country of Origin US
Condition New
🚗 Compatible with
42 vehicles are compatible with this product · 2005–2025
