ICON Vehicle Dynamics Suspension Shock Absorber Set - 87842CP

97-23 PATROL (Y61) FRONT 2.5 VS RR CDCV PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 87842CP
Old price: $1,487.79
$1,416.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

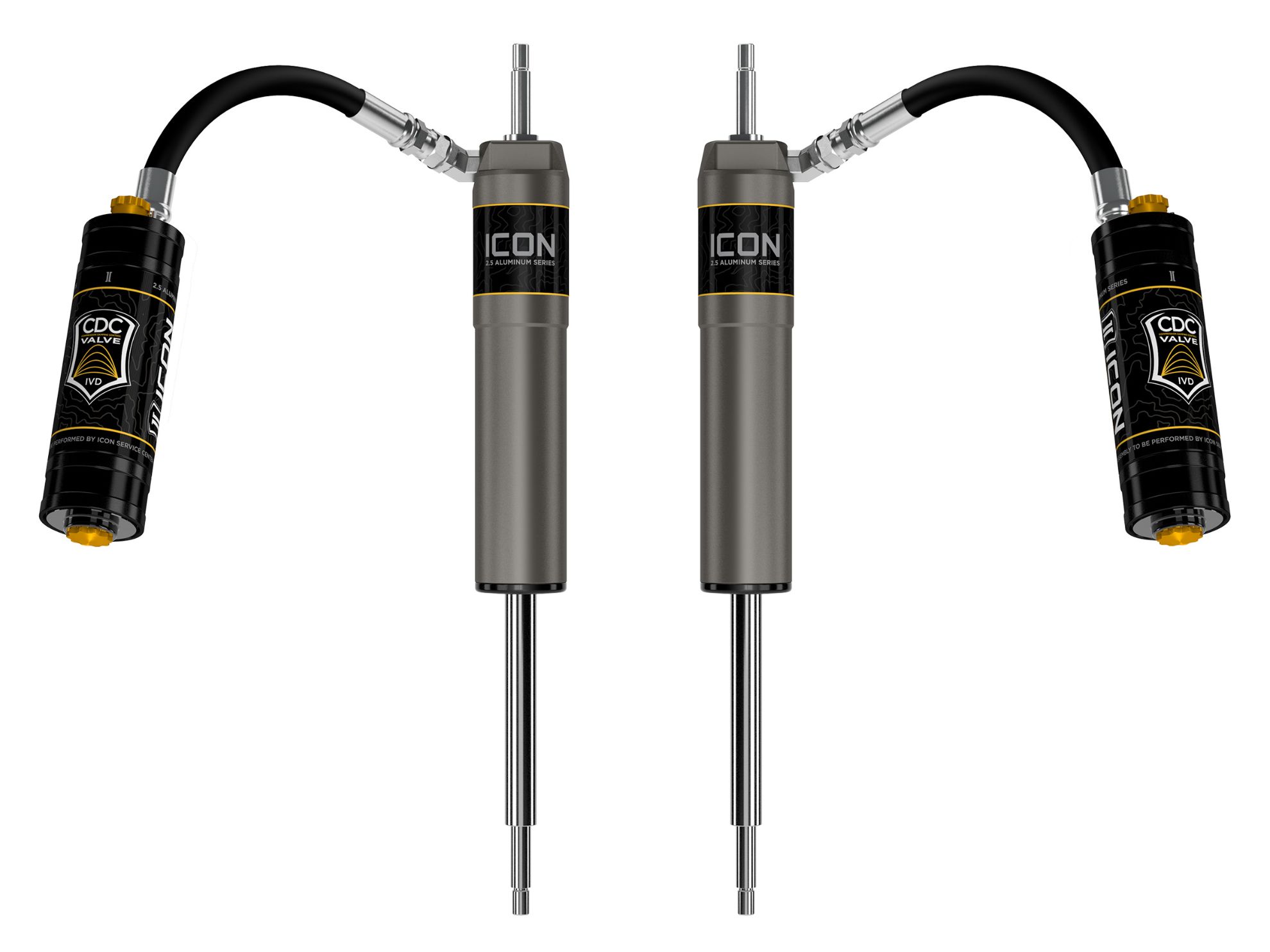

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Application: ICON 97-23 PATROL (Y61) FRONT 2.5 VS RR CDCV PAIR

Note: APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Yes
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Boot Included No
Bore Diameter 2.25
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color Grey
Cylinder Diameter 2.5
Cylinder Material Aluminum
Damping Adjustment Type Manual
Damping Type Oil
External Reservoir Yes
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Lower Mount Type Stem
Mounting Hardware Included Yes
Reservoir Type Remote
Shaft Diameter 0.875
Shaft Material Chrome
Shock Absorber Body End Measuring Point Shoulder of Stem
Shock Absorber Rod End Measuring Point Shoulder of Stem
Tube Outside Diameter 2.5
Upper Mount Type Stem
Valving Type Digressive
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 257341 - 7/8 SHAFT 15.85 OAL, 11.00 TRAVEL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257338STEM - 7/8 SHAFT 13.98 OAL 8.00 TRAVEL, 252001 - 2.5 FIXED SPANNER WRENCH, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611006 - 9/16 HD STEM BUSHING KIT
Country of Origin US
Condition New
