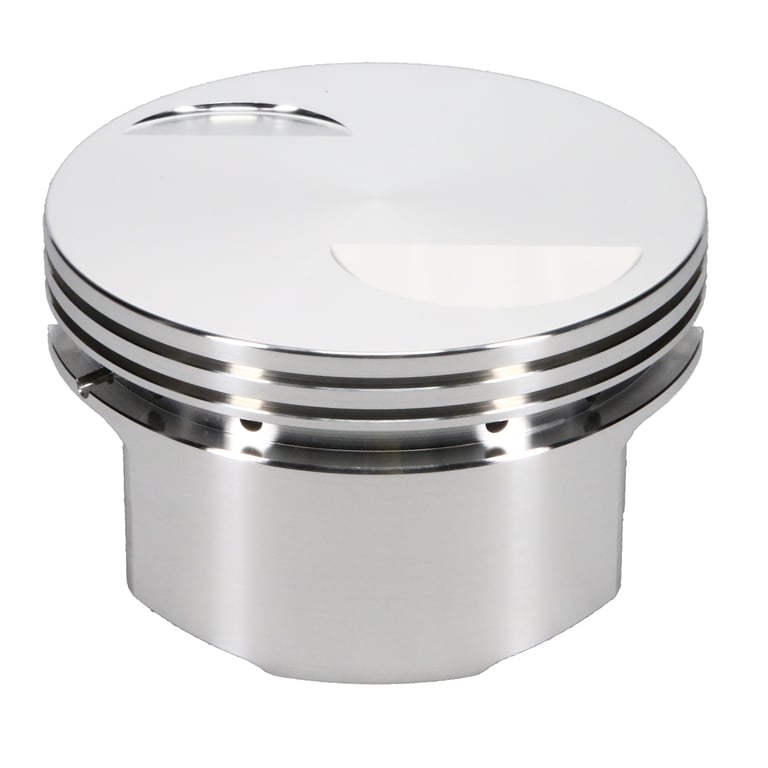

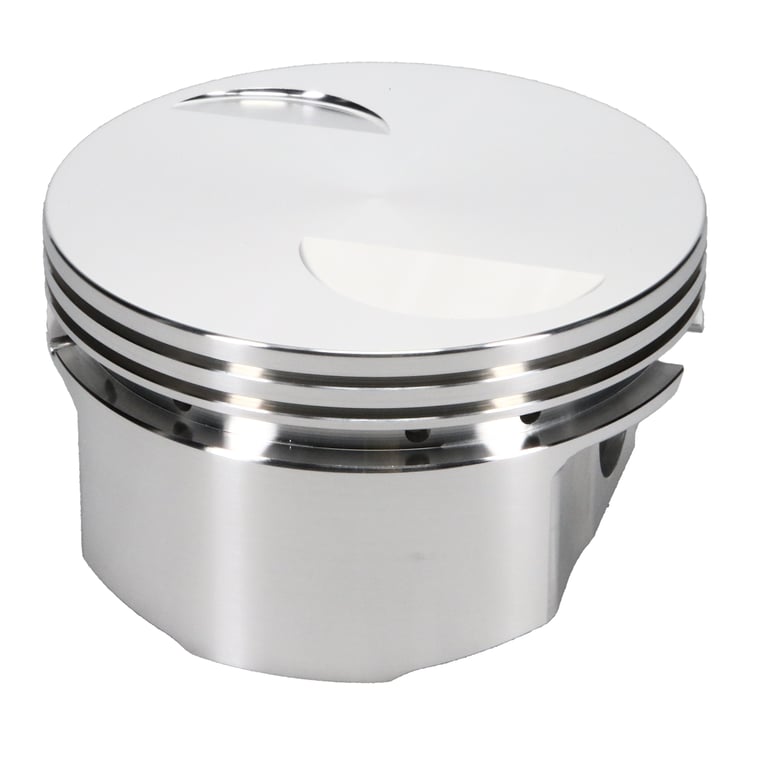

JE Pistons Engine Piston Kit - 118558

Piston Set, 2618, Flat Top, 3.810 Bore, 1.090 CD, 0.927 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 118558
$599.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Ford Pinto 2300

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Piston Series JE Pistons
Cylinder Head PINTO
Piston Average Weight 341
Ring Set Included Yes
Top Compression Ring Thickness 0.0640
Second Compression Ring Thickness 0.0640
Oil Ring Thickness 0.218
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.927
Wrist Pin Length 2.500
Wrist Pin Wall Thickness 0.130
Bore Diameter 3.810
Piston Head Type Flat
Compression Height 1.090
Piston Volume -2.00
Material 2618
Piston Quantity 4
Forging Type Round
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 3.810 IN
EBAY Category ID 33623
Country of Origin US
Condition New
