JE Pistons Engine Piston Kit - 128995

Name: JE Pistons Engine Piston Kit - 128995
SKU: 128995
Price: 269.99 USD
Availability: OutOfStock

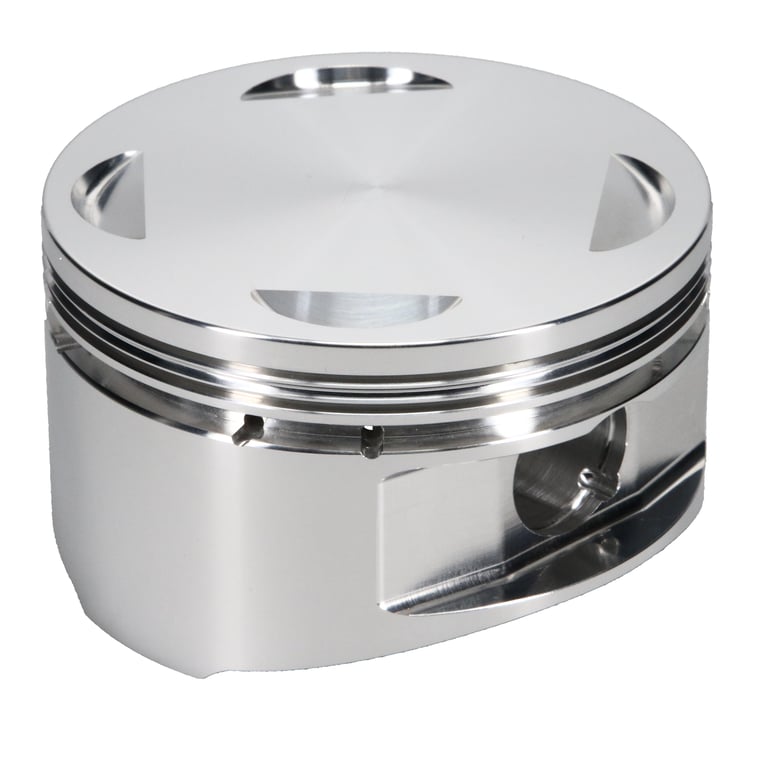

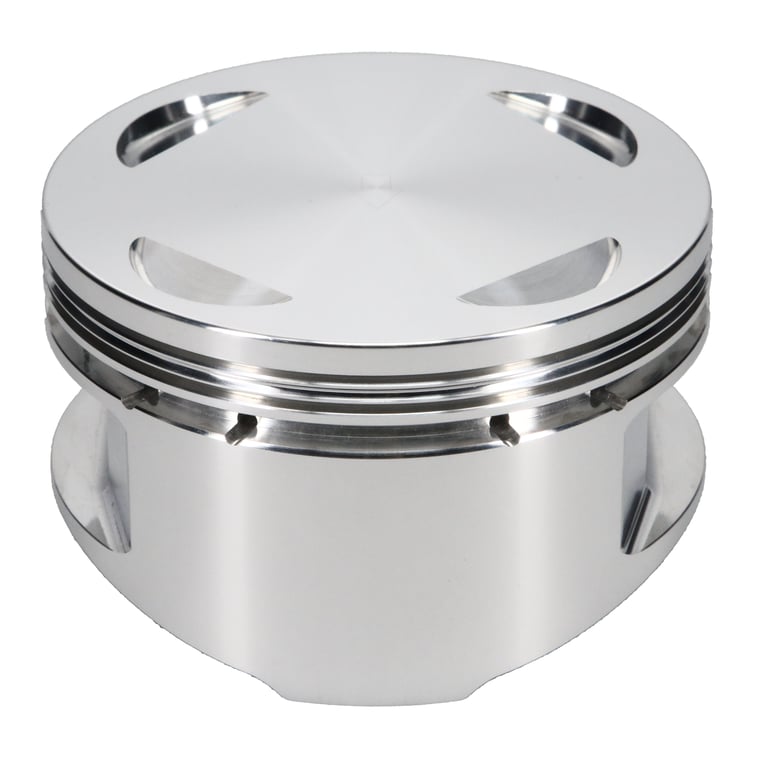

Piston Set, 2618, Flat Top, 3.937 Bore, 1.174 CD, 0.945 Pin, Set of 1.

Manufacturer: JE Pistons

Manufacturer part number: 128995

$269.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	XR 600 R
Bore Diameter	100.00
Compression Ratio Actual	10.50:1
Piston Head Type	Flat
Piston Volume	0.00
Material	2618
Forging Type	Round
Piston Average Weight	385
Ring Set Included	Yes
Top Compression Ring Thickness	0.0485
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.159
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.945
Wrist Pin Length	2.850
Wrist Pin Wall Thickness	0.140
Product Type	Engine Piston Kit
Category Hierarchy	Powersports>Pistons>Piston Kits>Off-Road
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	100.00 MM
EBAY Category ID	177976
Country of Origin	US
Condition	New
