JE Pistons Engine Piston Kit - 144539

Name: JE Pistons Engine Piston Kit - 144539
SKU: 144539
Price: 924.99 USD
Availability: OutOfStock

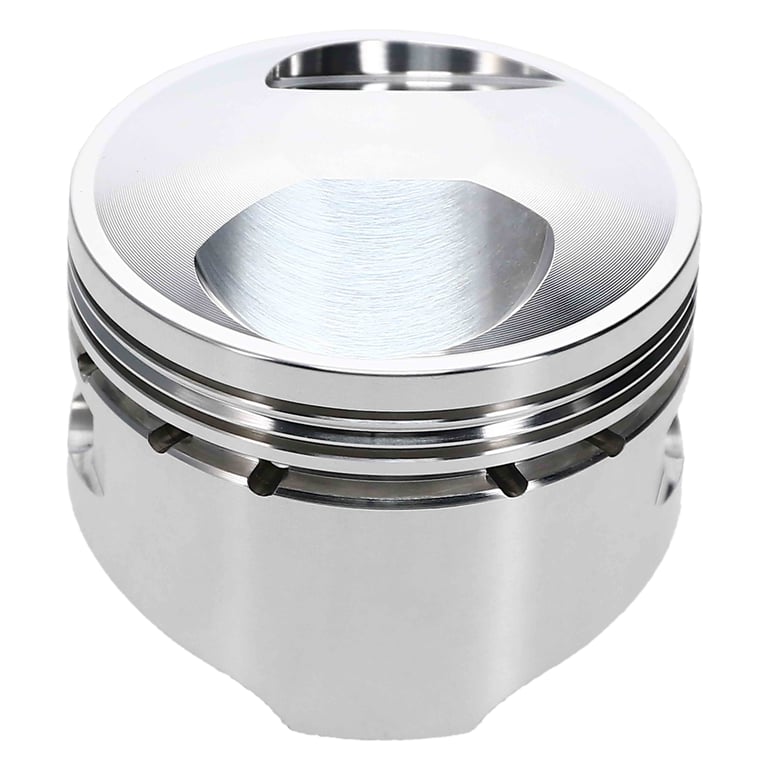

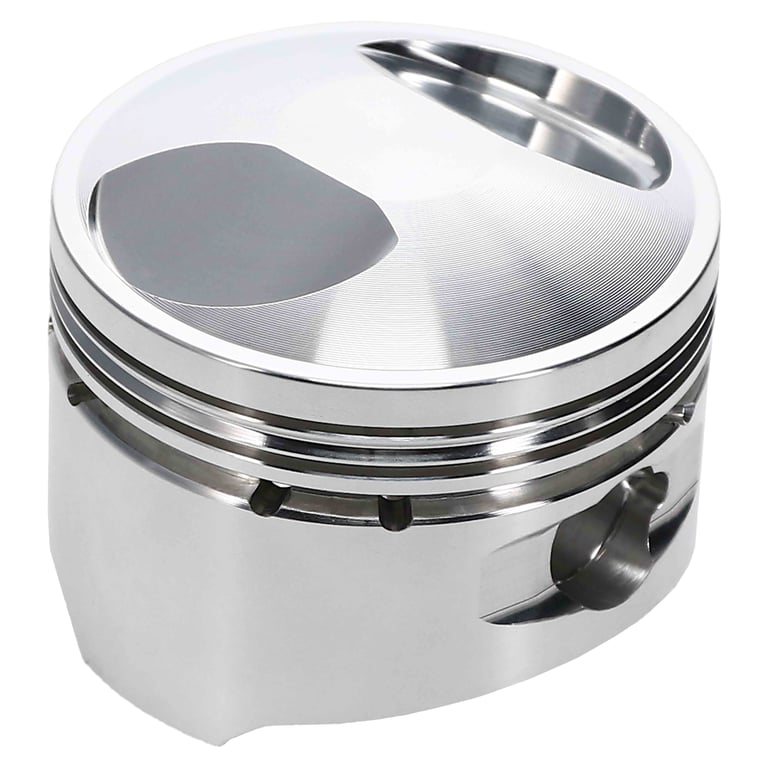

Piston Set, 2618, Dome, 2.559 Bore, 0.940 CD, 0.591 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 144539

$924.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Products specifications

Attribute name	Attribute value
Category Hierarchy	Powersports>Pistons>Piston Kits>Street
Piston Series	JE Pistons
Cylinder Head	CB 750 2V
Bore Diameter	65.00
Compression Ratio Actual	10.50:1
Piston Head Type	Dome
Piston Volume	0.00
Material	2618
Forging Type	Round
Piston Average Weight	151
Ring Set Included	Yes
Top Compression Ring Thickness	0.0400
Second Compression Ring Thickness	0.0480
Oil Ring Thickness	0.111
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.591
Wrist Pin Length	2.050
Wrist Pin Wall Thickness	0.110
Product Type	Engine Piston Kit
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	65.00 MM
EBAY Category ID	177976
Country of Origin	US
Condition	New
