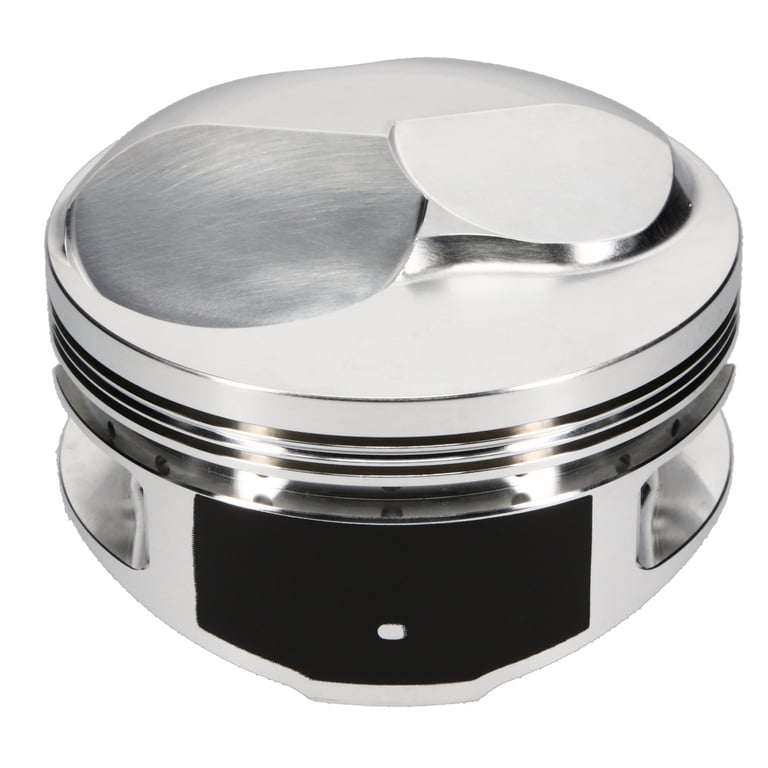

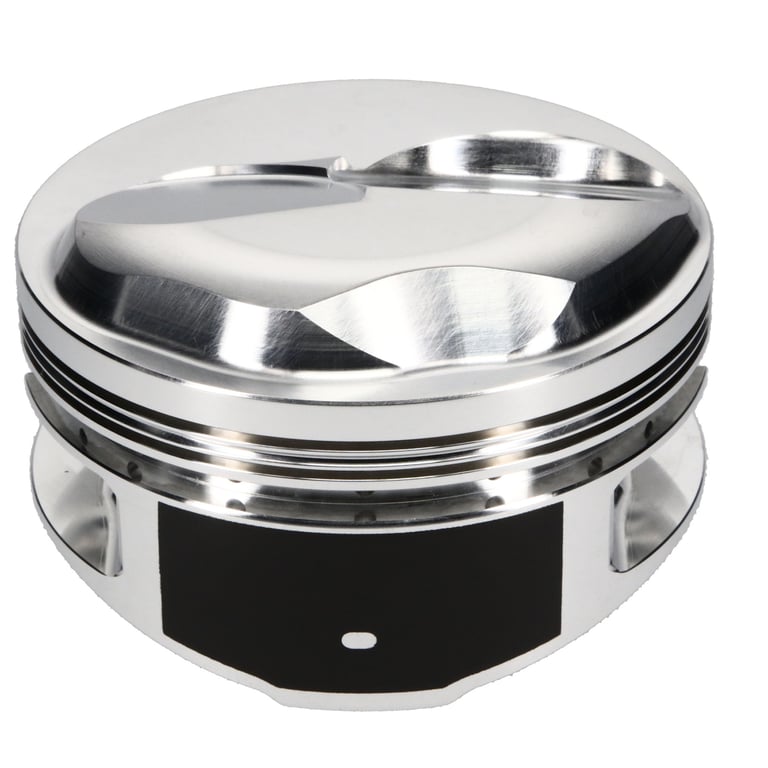

JE Pistons Engine Piston Kit - 258252

Piston Set, 2618, Dome, 4.280 Bore, 1.395 CD, 0.990 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 258252
$1,024.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet Big Block 427

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Piston Series JE Pistons
Cylinder Head OPEN CHAMBER
Bore Diameter 4.280
Piston Head Type Dome
Compression Height 1.395
Piston Volume 40.00
Material 2618
Piston Quantity 8
Forging Type Round
Piston Average Weight 591
Product Type Engine Piston Kit
Wrist Pin Wall Thickness 0.150
Category Hierarchy Auto>JE Pistons>Piston Kits
Wrist Pin Length 2.930
Wrist Pin Outer Diameter 0.990
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Oil Ring Thickness 0.188
Second Compression Ring Thickness 0.0640
Top Compression Ring Thickness 0.0640
Ring Set Included No
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 4.280 IN
EBAY Category ID 33623
Country of Origin US
Condition New
