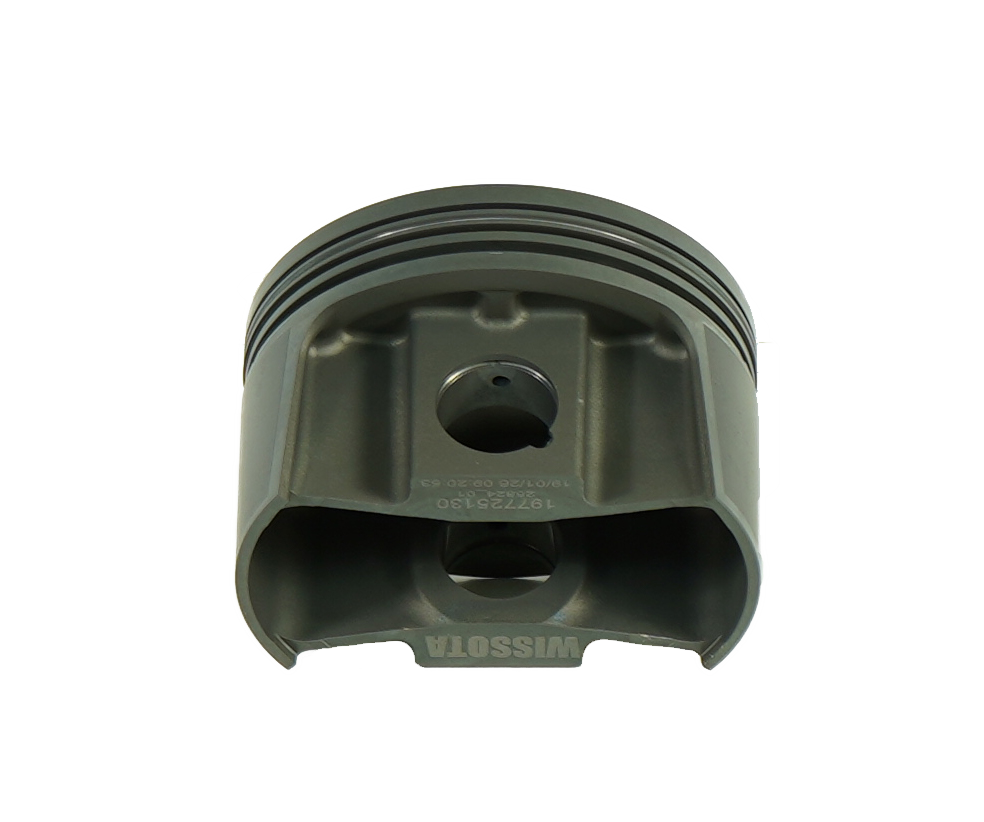

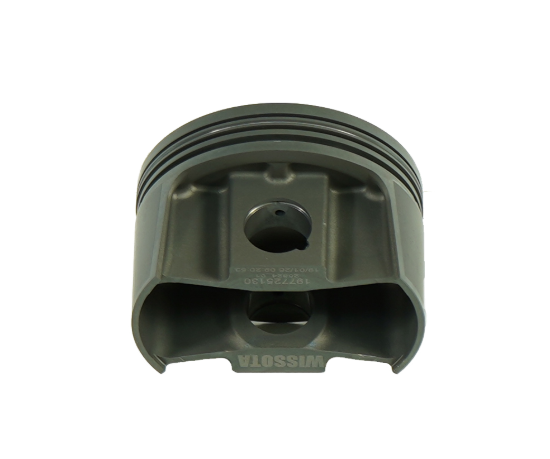

Mahle Motorsport Engine Piston - 197725130-1

Name: Mahle Motorsport Engine Piston - 197725130-1
SKU: 197725130-1
Price: 86.09 USD
Availability: InStock

Piston (ea) - SMALL BLOCK CHEVY WISSOTA CONCEPT ENGINE

Manufacturer: Mahle Motorsport

Manufacturer part number: 197725130-1

Old price: $93.58

Price: $86.09

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

355cid 4.030 x 1.550CH, 3.480/3.500stroke,5.700rod,0.927pin,-5.0cc,463g,10.2CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 197725130, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-5.0cc
Pin Wall Thickness	0.168
LCR Thickness	1.5mm
UCR Thickness	1.5mm
Piston Ring Thickness	1.5mm, 1.5mm, 3.0mm
Pin Mass	118g
Pin Diameter	23.55mm
OCR Thickness	3.0mm
Piston Mass	463g
Pin Length	58.1mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
UCR Material	Ductile Iron
Piston Style	Flattop, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 4032
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
UCR Coating	Plasma Moly
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
