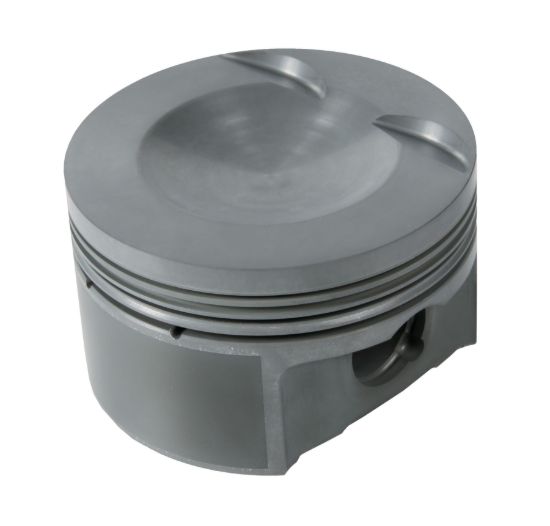

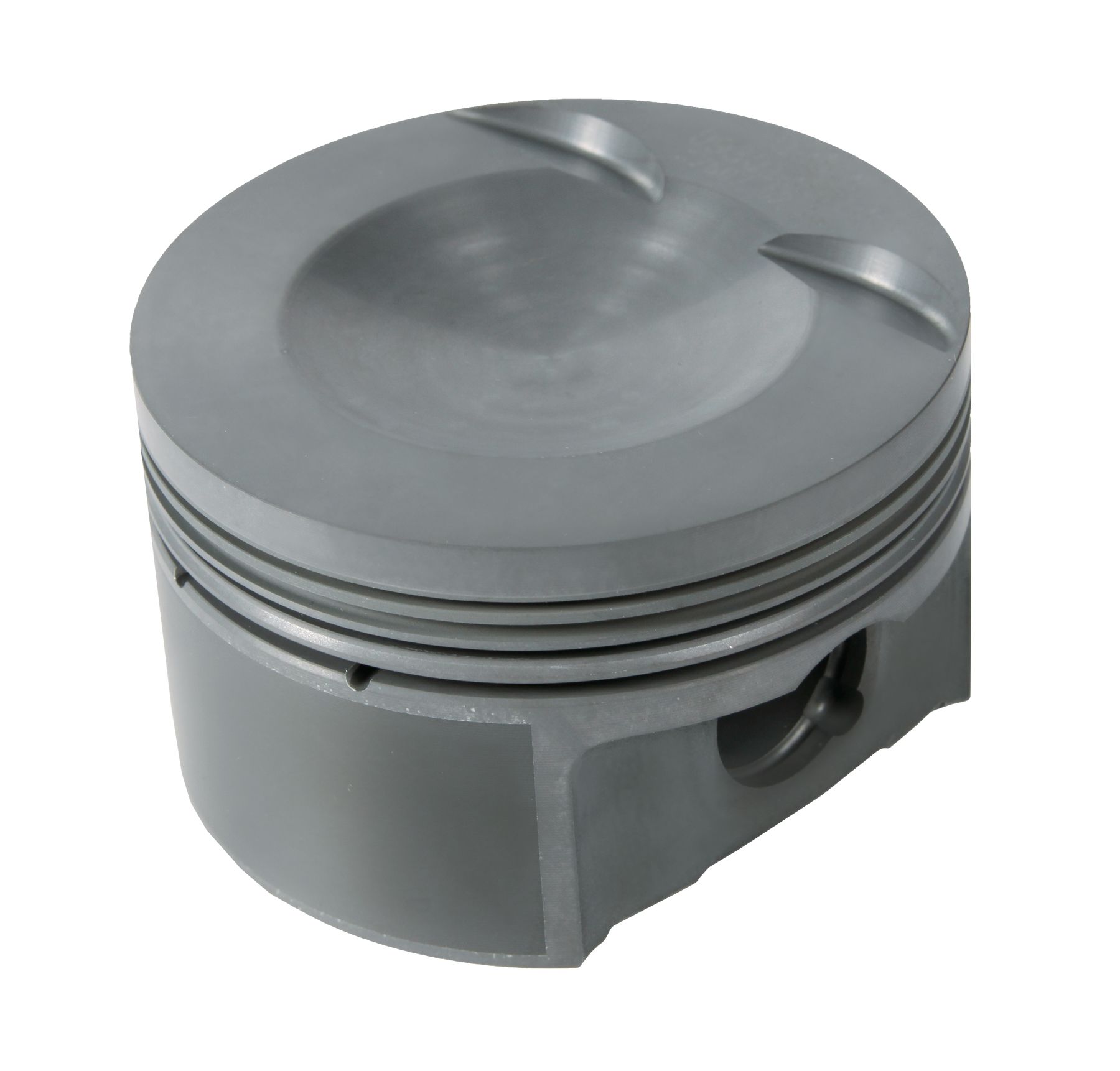

Mahle Motorsport Engine Piston - 197799948-1

Name: Mahle Motorsport Engine Piston - 197799948-1
SKU: 197799948-1
Price: 175.50 USD
Availability: InStock

Piston (ea) - VOLKSWAGEN TFSi EA113 (2006-2009) 2.0L TURBO

Manufacturer: Mahle Motorsport

Manufacturer part number: 197799948-1

Old price: $190.76

Price: $175.50

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,20mm pin,-10.4cc,312g,9.3CR, M142P, SINGLE PISTON

Note: Replacement piston for kit 197799948, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-10.4cc
Pin Wall Thickness	0.197
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.8mm
LCR Thickness	1.2mm
Pin Mass	106g
OCR Thickness	2.8mm
Pin Diameter	20.0mm
Piston Mass	312g
Pin Length	59.0mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, M142P
UCR Coating	Gas Nitrided
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	4
