Mahle Motorsport Engine Piston - 929114709-1

Name: Mahle Motorsport Engine Piston - 929114709-1
SKU: 929114709-1
Price: 144.79 USD
Availability: OutOfStock

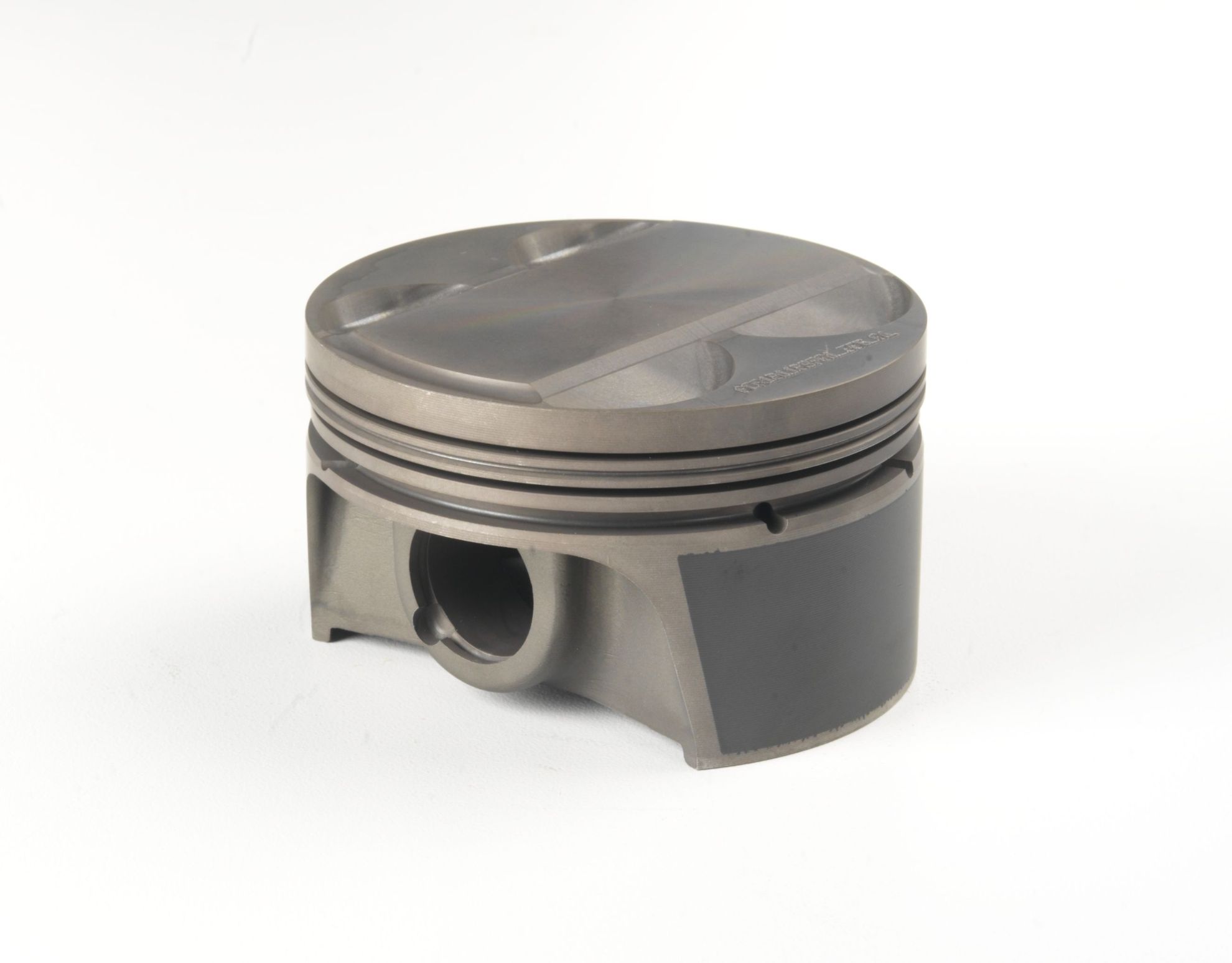

Piston (ea) - HONDA / ACURA B16, A1, A2, A3 DOHC VTEC 1.6L

Manufacturer: Mahle Motorsport

Manufacturer part number: 929114709-1

Old price: $157.38

Price: $144.79

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

81.50mm x 30mm CH, 77.4mm stroke,134mm rod,21mm pin,9.1cc,312g,11.3CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 929114709, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.197
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.8mm
LCR Thickness	1.2mm
OCR Thickness	2.8mm
Pin Diameter	21.0mm
Piston Mass	312g
Pin Length	50.0mm
Crown Volume	9.1cc
Pin Mass	98g
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	Gas Nitrided
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	4
