Mahle Motorsport Engine Piston - 930036255-1

Name: Mahle Motorsport Engine Piston - 930036255-1
SKU: 930036255-1
Price: 286.50 USD
Availability: OutOfStock

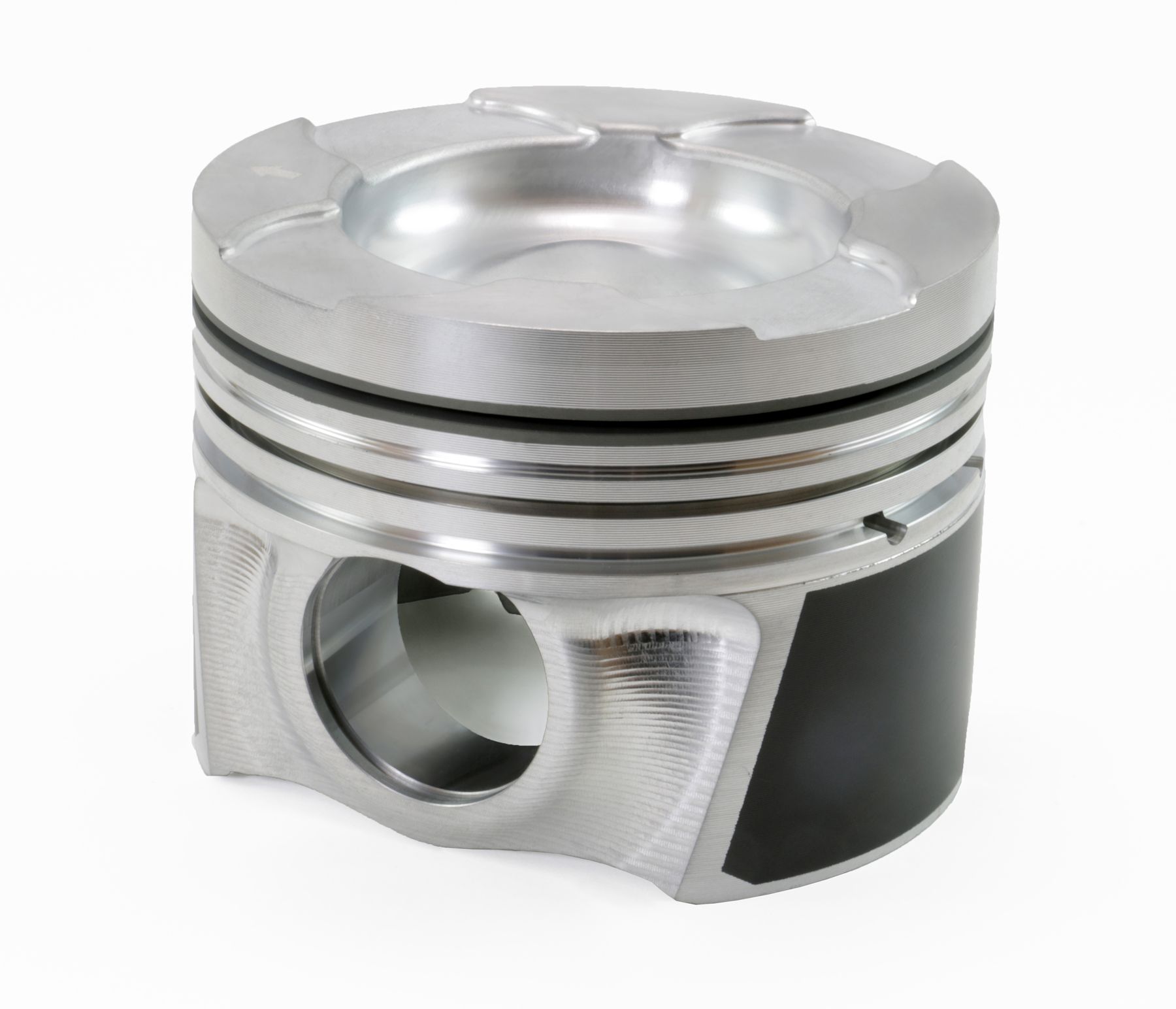

Piston (ea) - GM 6.6L Duramax Forged Aluminum Race Pistons

Manufacturer: Mahle Motorsport

Manufacturer part number: 930036255-1

Old price: $311.41

Price: $286.50

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,774g,16.3CR, M124P, SINGLE PISTON

Note: Replacement piston for kit 930036255, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-41.8cc
Pin Wall Thickness	0.325
UCR Thickness	1/16
Piston Ring Thickness	1/16, 2.0mm, 3.0mm
LCR Thickness	2.0mm
OCR Thickness	3.0mm
Pin Diameter	34.5mm
Pin Mass	410g
Pin Length	77.5mm
Piston Mass	774g
LCR Material	Cast Iron
LCR Coating	Chrome
Prop 65 (C, R or CR)	CR
UCR Coating	CrN PVD
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, M124P
OCR Material	Gas Nitrided stainless steel
Clips Included	N
Pins Included	N
Rings Included	N
Clip Style	Snap Ring
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
