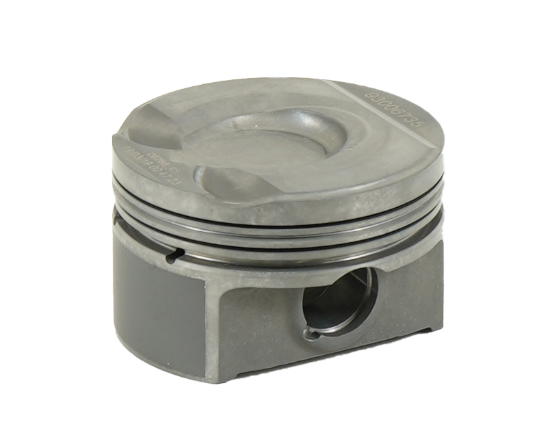

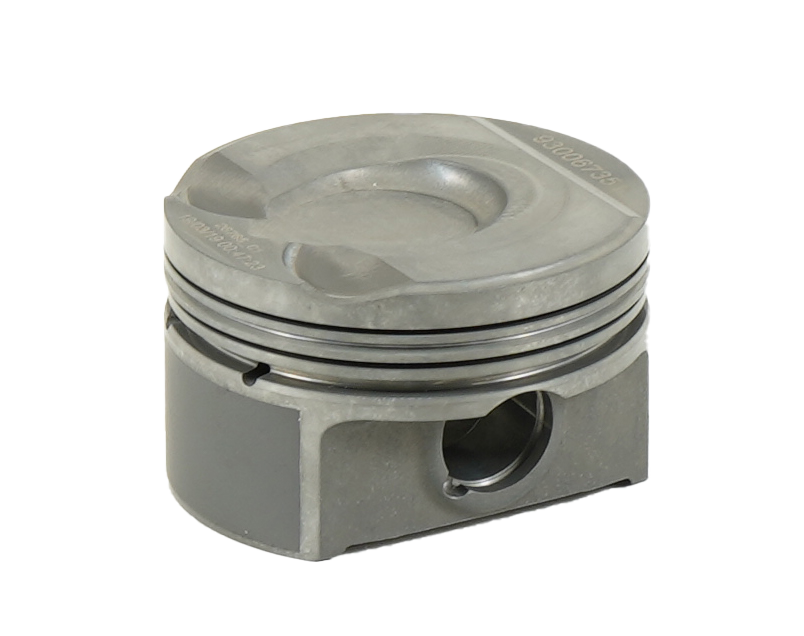

Mahle Motorsport Engine Piston - 930067351-1

Name: Mahle Motorsport Engine Piston - 930067351-1
SKU: 930067351-1
Price: 195.10 USD
Availability: OutOfStock

Piston (ea) - BMW N14 1.6L MINI COOPER S

Manufacturer: Mahle Motorsport

Manufacturer part number: 930067351-1

Old price: $212.06

Price: $195.10

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

77.50mm x 28.5mm CH, 85.8mm stroke,138.2mm rod,20mm pin,-1.1cc,273g,10.3CR, M142P, SINGLE PISTON

Note: Replacement piston for kit 930067351, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-1.1cc
Pin Wall Thickness	0.17
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.8mm
LCR Thickness	1.2mm
OCR Thickness	2.8mm
Pin Diameter	20.0mm
Piston Mass	273g
Pin Length	50.8mm
Pin Mass	84g
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
UCR Coating	CrN PVD
Piston Style	Dome, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, M142P
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
UCR Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	4
