Mahle Motorsport Engine Piston Set - 930036255

Name: Mahle Motorsport Engine Piston Set - 930036255
SKU: 930036255
Price: 2773.52 USD
Availability: OutOfStock

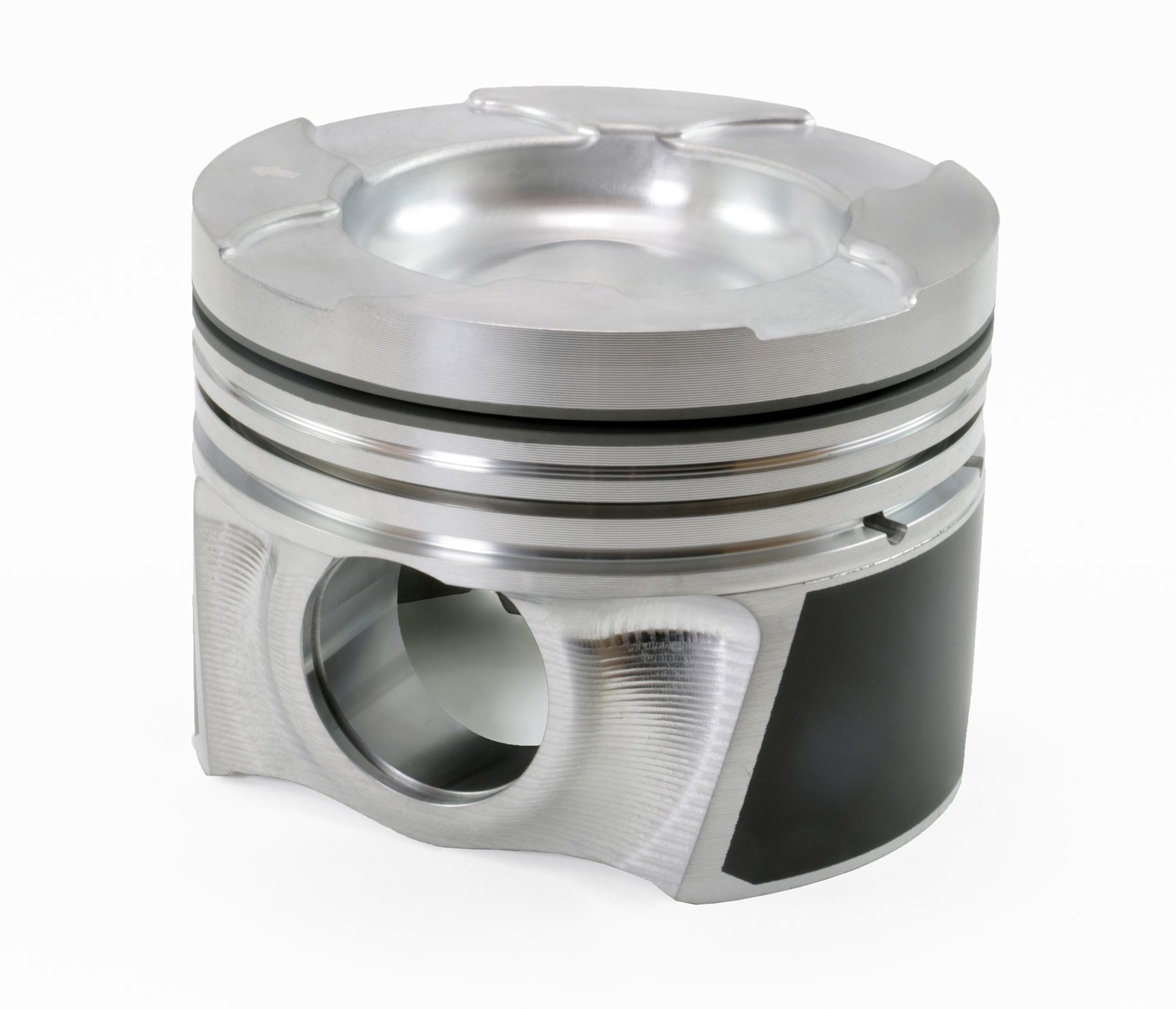

Piston (set) - GM 6.6L Duramax Forged Aluminum Race Pistons

Manufacturer: Mahle Motorsport

Manufacturer part number: 930036255

Old price: $3,014.70

Price: $2,773.52

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,774g,16.3CR, M124P

Note: w/ 0.075" Deep Valve Pockets

Products specifications

Attribute name	Attribute value
Crown Volume	-41.8cc
Pin Wall Thickness	0.325
UCR Thickness	1/16
Piston Ring Thickness	1/16, 2.0mm, 3.0mm
LCR Thickness	2.0mm
OCR Thickness	3.0mm
Pin Diameter	34.5mm
Pin Mass	410g
Pin Length	77.5mm
Piston Mass	774g
LCR Material	Cast Iron
LCR Coating	Chrome
Prop 65 (C, R or CR)	CR
UCR Coating	CrN PVD
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, M124P
OCR Material	Gas Nitrided stainless steel
Clip Style	Snap Ring
Package Quantity	Sold as a set of 8
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
