Mahle Motorsport Engine Piston Set - 930258362

Name: Mahle Motorsport Engine Piston Set - 930258362
SKU: 930258362
Price: 1043.58 USD
Availability: OutOfStock

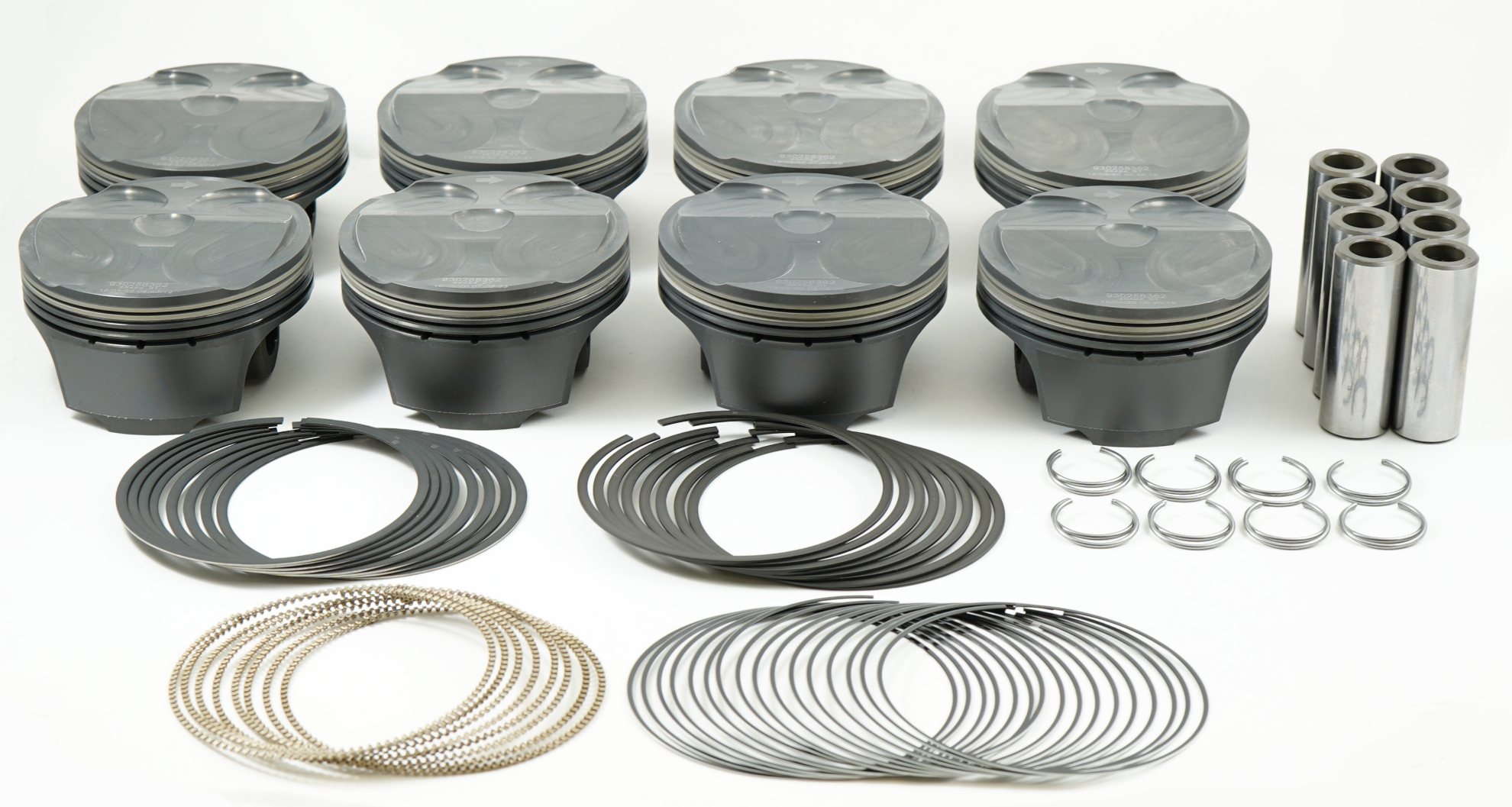

Piston (set) - FORD 5.0L MODULAR COYOTE Gen 3

Manufacturer: Mahle Motorsport

Manufacturer part number: 930258362

Old price: $1,134.33

Price: $1,043.58

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

308cid 3.662 x 1.167CH, 3.650stroke,5.933rod,0.866pin,8.4cc,373g,12.0CR, 2618

Note: Direct Injected (2018+) DROP-IN FORGED REPLACEMENT ASSEMBLY

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.177
LCR Thickness	1.2mm
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.0mm
Pin Mass	112g
OCR Thickness	2.0mm
Pin Diameter	22.0mm
Piston Mass	373g
Pin Length	58.1mm
Crown Volume	-8.4cc
LCR Material	9254 Steel
UCR Material	9254 Steel
LCR Coating	Chrome
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 2618
UCR Coating	HV385
File Fit	N
OCR Material	Nitrided stainless steel
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
