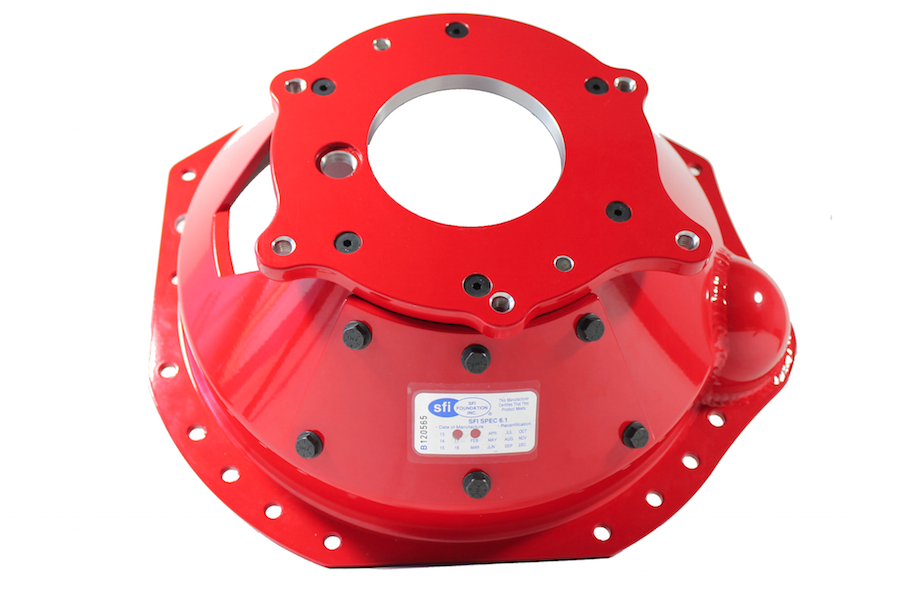

McLeod Transmission Bell Housing - 8560T

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Bellhousing: Aluminum w/Titanium Liner: Ford: w/Block Plate: SFI 6.1
Manufacturer: McLeod
Manufacturer part number: 8560T
Old price: $1,906.25
$1,525.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

McLeod aluminum bellhousings are the gold standard when it comes to accuracy and compact performance. They're constructed of CNC-machined spun aluminum—with a narrow body design for lightness, and a titanium inner liner for added strength and protection. These bellhousing come with a removeable inspection cover to help aide in clutch adjustment between rounds. They come in two different configurations, SFI rated with a steel block plate that gives the bellhousing its SFI 6.1 rating. We also offer a Non- SFI rated version for those customers looking for a light weight bellhousing, but not concerned with a SFI rating so these units do not come with a steel block plate.

Products specifications

Attribute name Attribute value
Bellhousing Material Aluminum With Titanium Liner
Block Plate Included Yes
SFI Approved Yes
Stock Collar I.D. (in.) 4.850
Quantity Sold Individually
Transmission Borg Warner T-5
Flywheel Fitment Fits 164 Tooth Flywheel Only
Notes This bell housing has a very specific fitment requirement. It requires a SBF with a flywheel that has a 164T Ring Gear and a transmission with a Borg Warner T-5 mounting pattern and input-shaft length. Aftermarket transmissions such as G-Force, Liberty Gears, Rockland Standard Gear, Astro Performance will work as long as the transmission fits the parameters listed above.
Country of Origin US
Condition New
🚗 Compatible with
323 vehicles are compatible with this product · 1963–1995
Looking for fitment details? Add your vehicle and we'll show you instantly whether this part fits. + Add Vehicle
