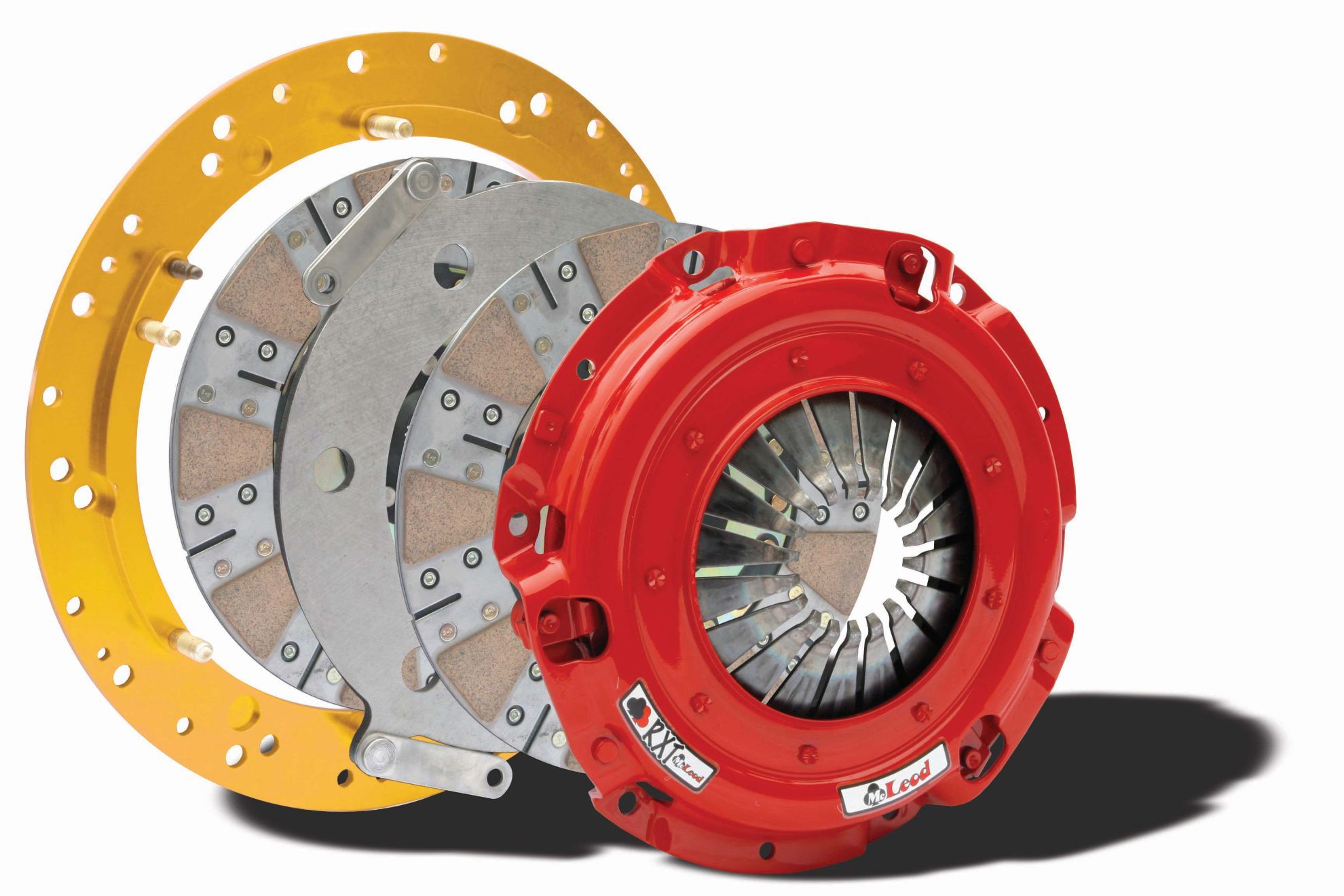

McLeod Transmission Clutch Kit - 6932-30

RXT: Metric Ring: GM 97-13 LS-X: Ford 01-17 4.6/5.0L: 1-1/4 x 14
Manufacturer: McLeod
$1,050.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1100hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

Note: NOTE: 2011-Up Factory Flywheel with 9 Bolt pressure Plate Pattern will not work with this clutch! Please call McLeod Tech Line for more info 714-630-2764

Products specifications

Attribute name Attribute value
Clutch Patterns 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
Disc Material Ceramic
Disc Style Segmented
Hub Style Solid
Pressure Plate Style Diaphragm
Flywheel Included No
Clutch Usage Performance
Flywheel Fitment For use with Ford Modular/GM LS-X
Notes LS1/LS6 Flat Style Flywheels ONLY! Will NOT Work w/LS2/LS3/LS7 recessed flywheels. Will NOT fit Ford w/9 Bolt Pattern.
Horsepower Rating 1100
Alignment Tool Included Yes
Throwout Bearing Included No
Pilot Bushing Included No
Hardware Included Yes
Quantity Sold as a Kit
Input Spline Quantity 14
Input Shaft Diameter (in.) 1.250
Disc Diameter (in.) 9.688
Clutch Disc Quantity 2
Country of Origin US
Condition New
