Race Series Carburetor 1050CFM Mechanicl Second

Name: Race Series Carburetor 1050CFM Mechanicl Second
SKU: 67305
Price: 779.09 USD
Availability: OutOfStock

Manufacturer: Proform

Manufacturer part number: 67305

Old price: $794.95

Price: $779.09

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

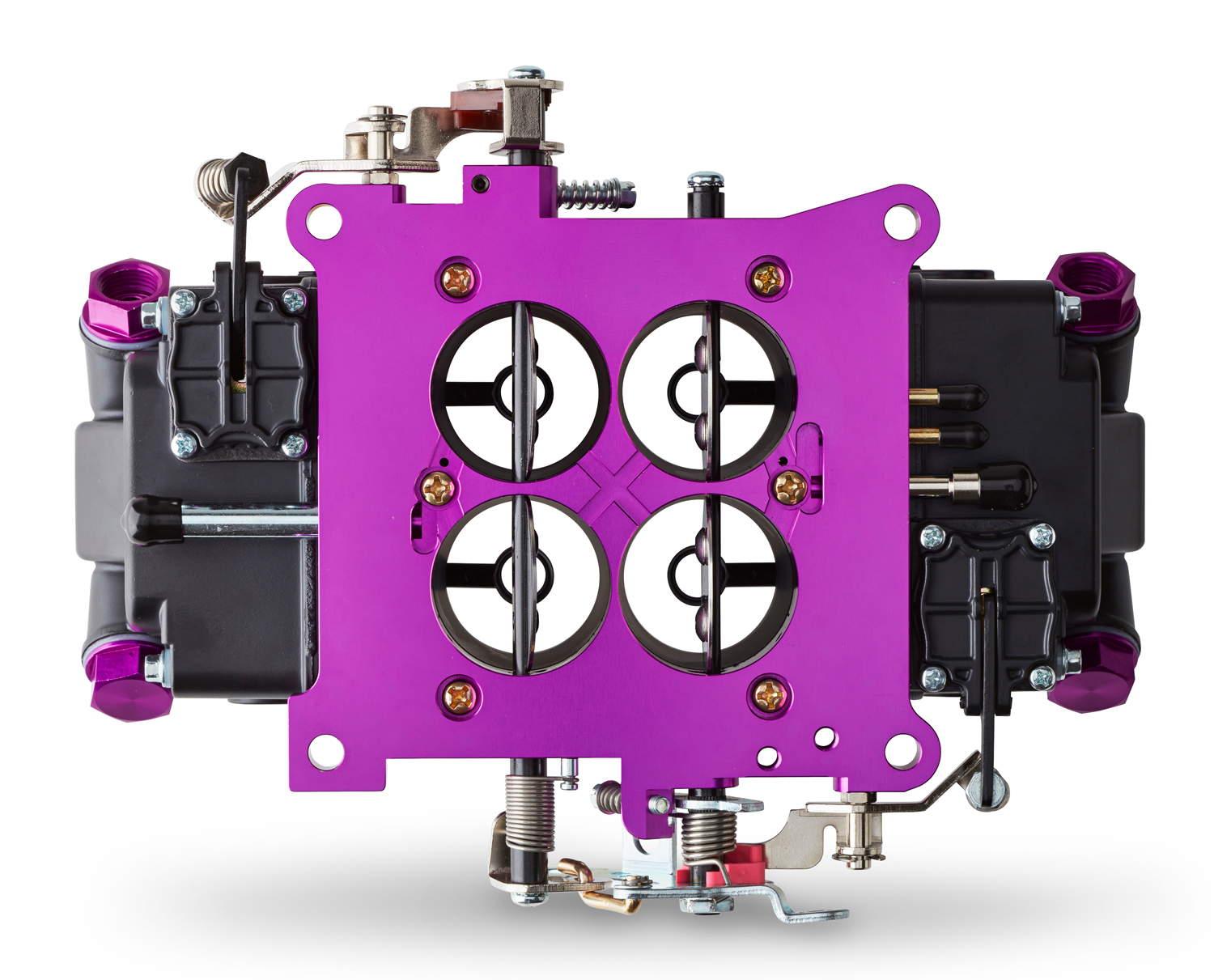

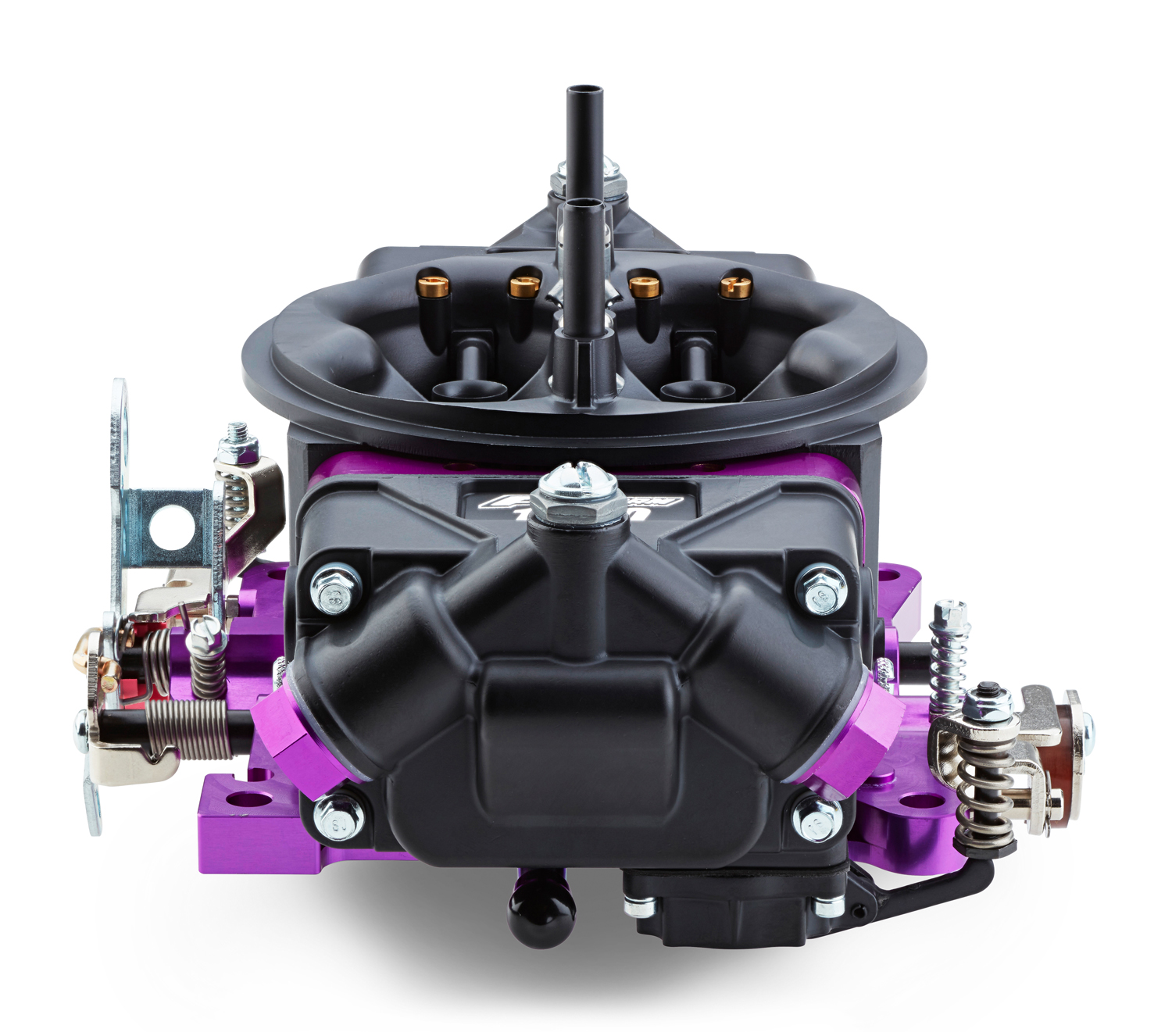

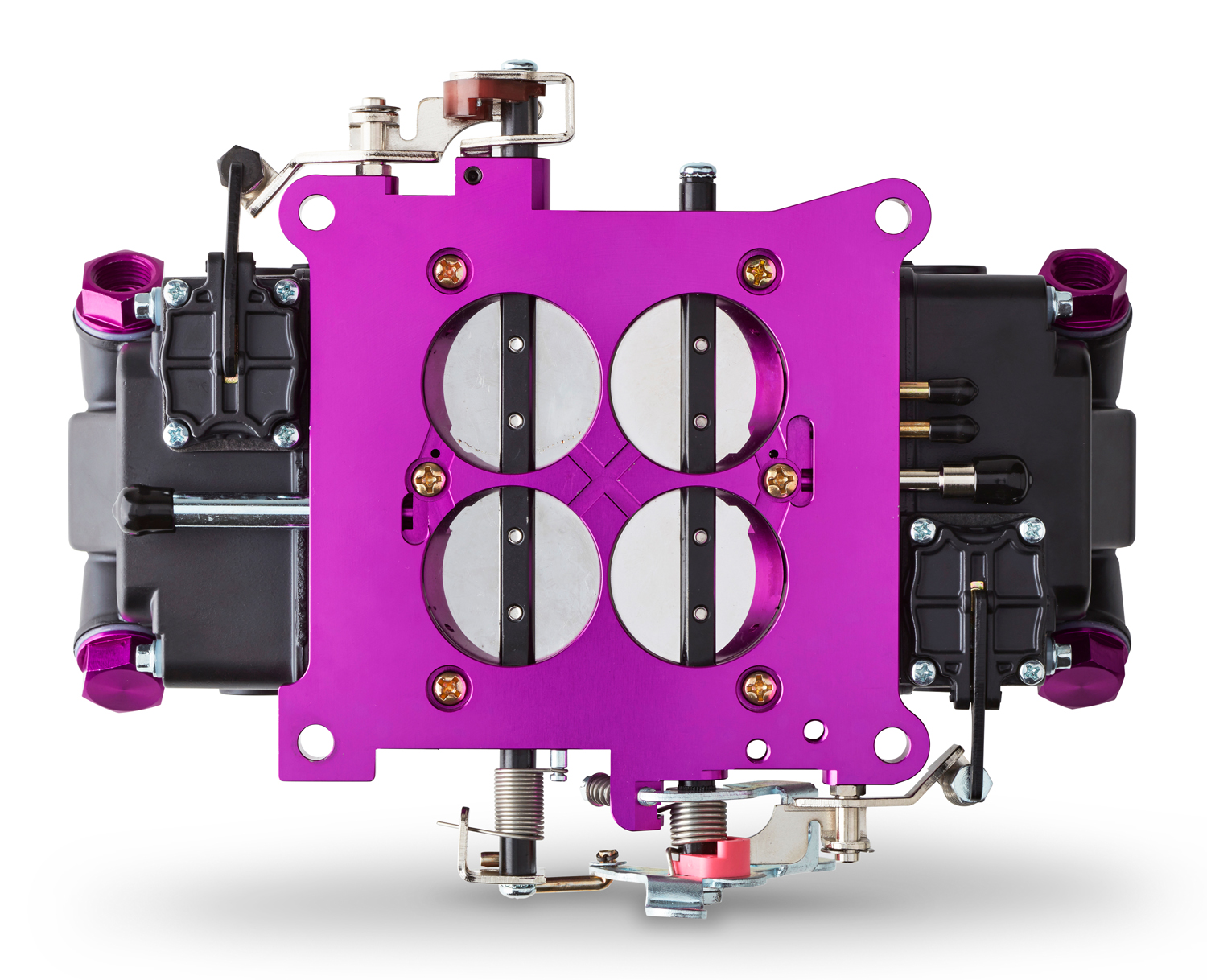

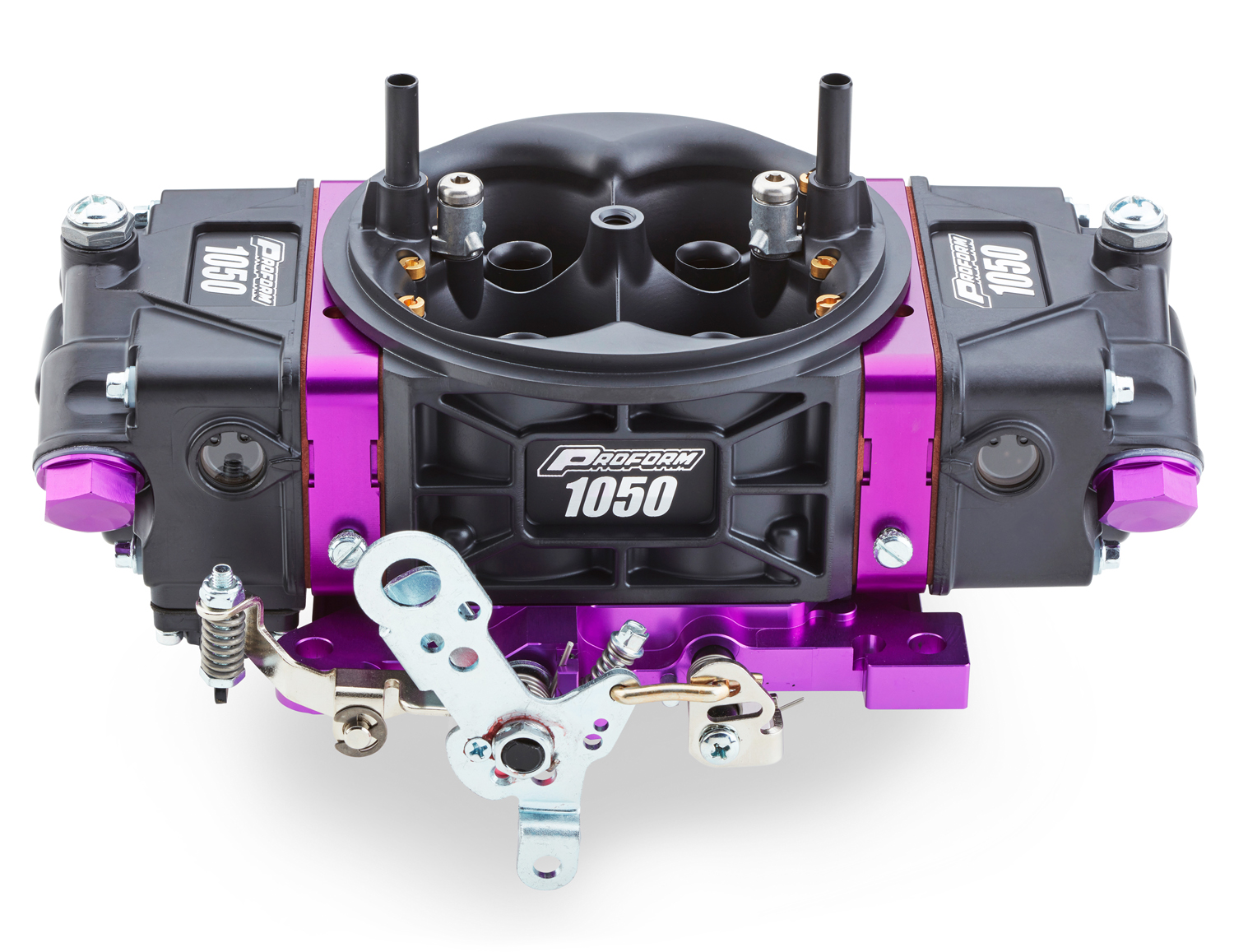

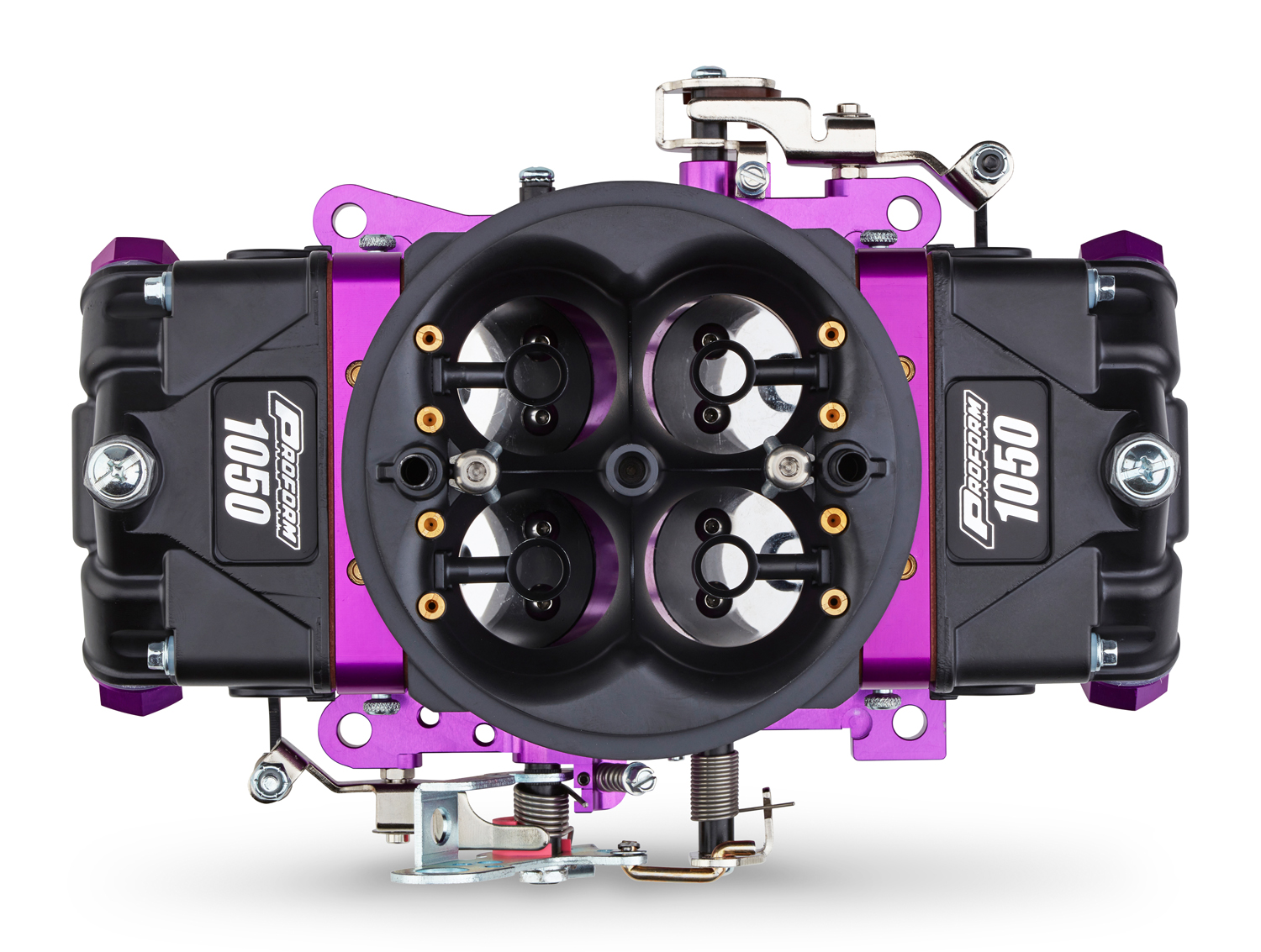

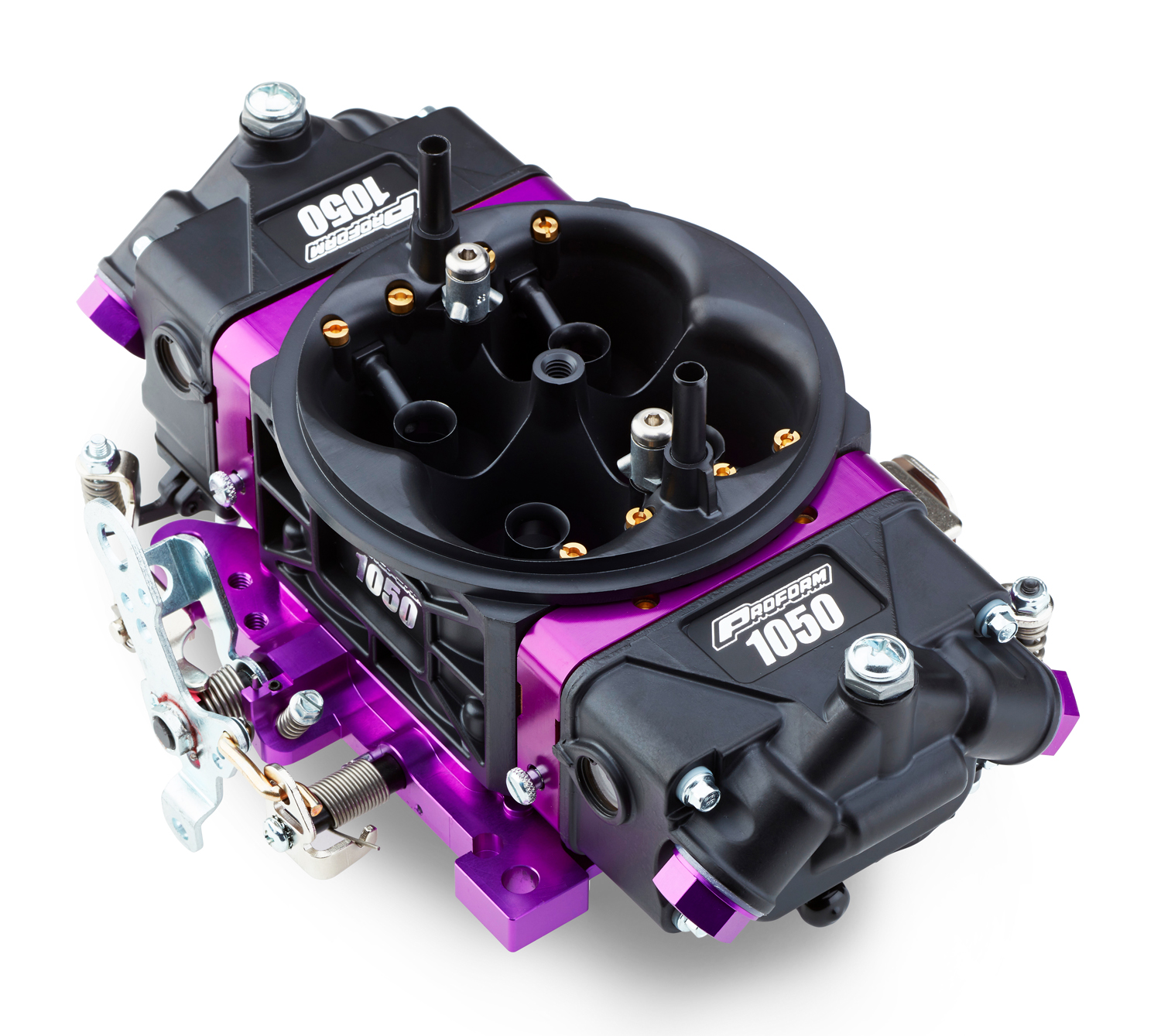

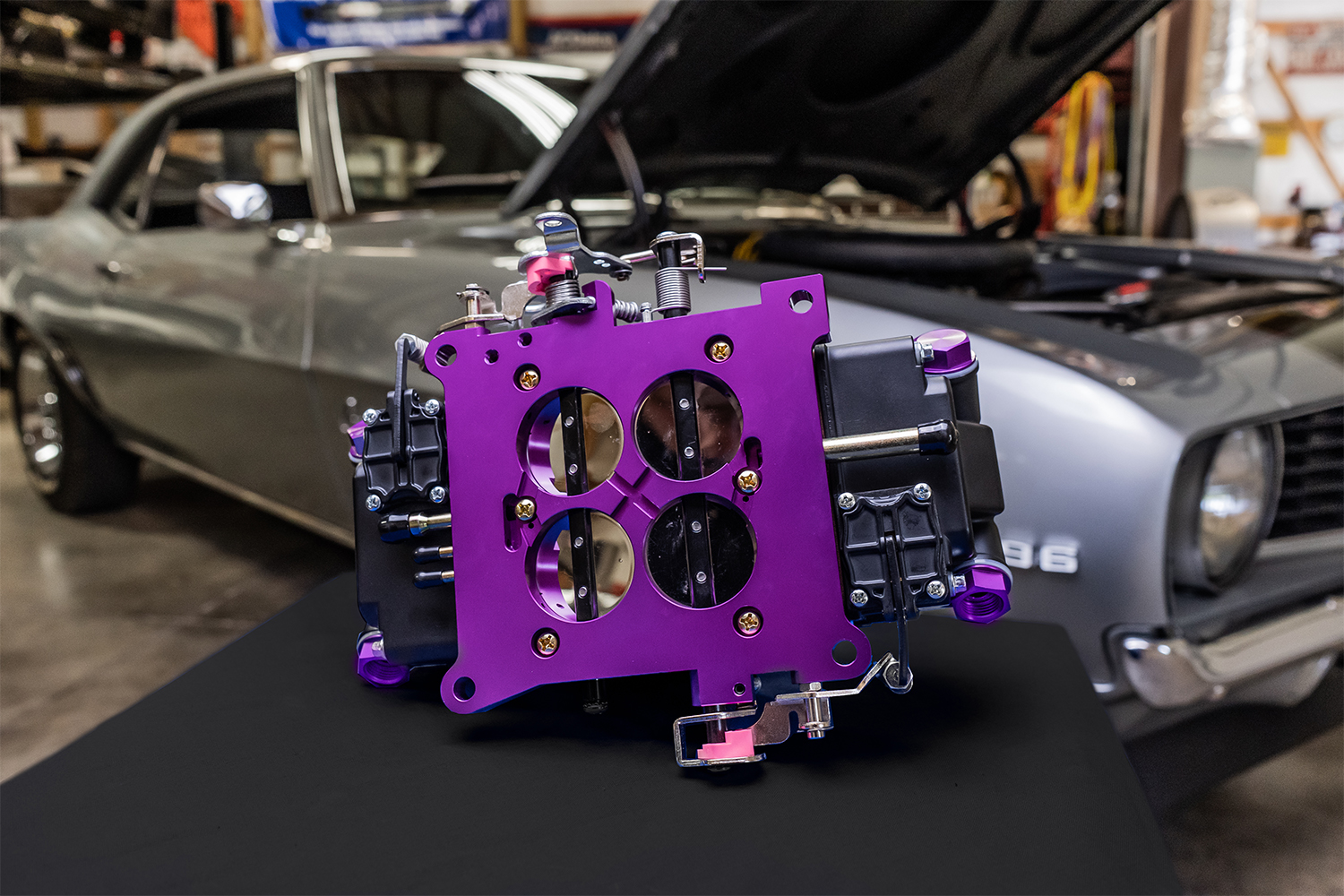

Carburetor - Race Series - 4-Barrel - 1050 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Black / Purple Anodized - Each

Manufacturer Part #: 67305

Warning: This product may have emissions compliance restrictions in some states.

Products specifications

Attribute name	Attribute value
Feature/Benefit	Lightweight Aluminum Construction
Needle & Seat	130
Product Type	Carburetor
Fuel Line Inlet Distance	9-11/16 inch
Material	Aluminum
Sub Type	Race Series
Discharge Nozzle Size (Primary / Secondary)	.035 in. / .035 in.
Finish	Black / Purple Anodized
Secondary Main Jet Size	91 / .104
Unit	Each
Air Bleed Size (Inner High Speed)	31 / 31
Idle/High Speed Air Bleed Sizes	70 / 31
Primary Main Jet Size	87.5 / .099
Specifications	4-Barrel, 1050 CFM, Square Bore, No Choke, Mechanical Secondary, Dual Inlet
Number of Barrels	4
Fuel	Gasoline
Air Bleed Size (Outer Idle)	70 / 70
Series	Black Race Series
Secondaries	Mechanical Secondaries
Base Plate Material	Billet Aluminum
PartType	Carburetor
Booster Style	Down-Leg Boosters
Metering Block Material	Billet Aluminum
Calibration	Universal
Main Body Material	Lightweight Aluminum
Throttle Linkage	Universal
Fuel Inlet Thread	7/8-in. x20
Fuel Inlet	Dual
Flange Style	Square Bore
Emissions	49 State Legal
EGR	Without EGR
Choke	No Choke
CFM:	1050 CFM
Category	Carbs
Air Bleeds Included	Yes
Air Bleed Material	Brass
Spacer Included	No
Small Venturi Diameter	1.75
Mounting Hole Quantity	4
Mounting Hole Diameter	0.25
Prop 65 Warning Label	Proposition 65 Warning.JPG
Prop 65 Yes/No	Yes
Prop 65 (C, R or CR)	CR
Primary Power Valve (Hg)	4.5
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Ford Kickdown Bracket Included	Yes
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Mounting Hardware Included	No
Marine Approved	No
Main Venturi Diameter	1.875
Linkage Attached	Yes
Grade Type	Performance
Gasket Or Seal Included	Yes
Float Material	Nitrophyl
Flange Shape	4150 & 8090
Choke Type	Manual
Center Hung Floats	Yes
Body Material	Aluminum
Body Height	3.25
Body Color	Black
Base Width	5.25
Base Length	5.25
Barrel Quantity	4
Air Cleaner Flange Diameter	0.25
Adjustable Float Level	Yes
Secondary Jet Diameter	0.1085
Primary Jet Diameter	0.102
Street Legal	Yes
Flange Type	Square/4150
Secondary Barrel Type	Mechanical
Country of Origin	US
