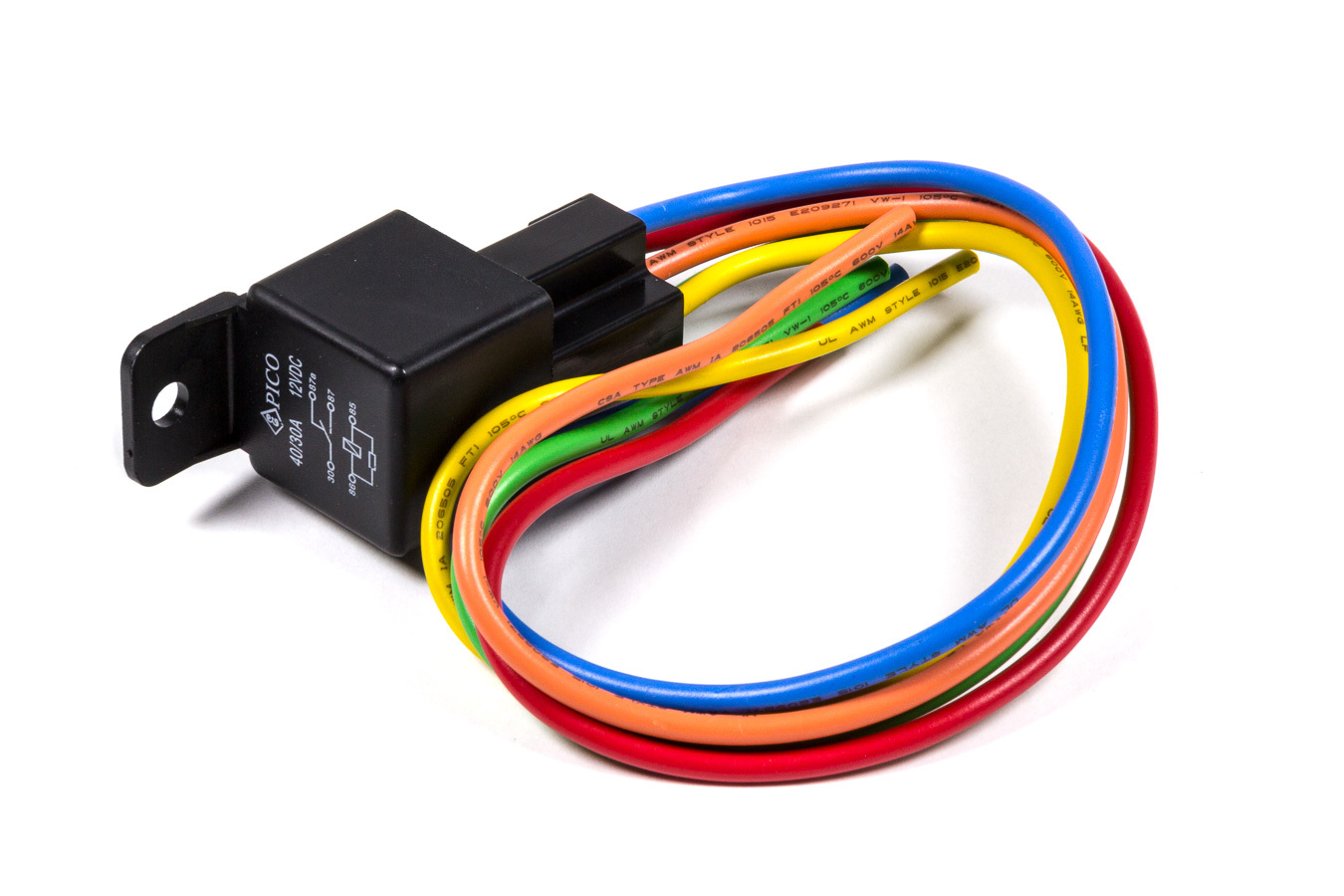

ALLSTAR PERFORMANCE ALL76186 Relay with Harness 30amp

Name: ALLSTAR PERFORMANCE ALL76186 Relay with Harness 30amp
SKU: ALL76186
Price: 24.84 USD
Availability: InStock

Relay with Harness 30amp

Manufacturer: ALLSTAR PERFORMANCE

Availability: In stock

Manufacturer part number: ALL76186

$24.84

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+	6+	12+	24+
Price	$16.04	$11.65	$10.18	$8.71	$7.98

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Relay Switch - 30 amps - 12V - Wiring Included - Universal - Kit

Note: #30 Terminal From 12V + power supply which is protected by a circuit breaker or fuse rated at 30 amps. #85 Terminal Connect to a good chassis ground. This may also be used as a switch to ground (i.e. for a horn) when terminal #86 is connected to a constant fused power. #86 Terminal Switched 12V + power from a toggle switch or controlled side of ignition switch. #87 Terminal Connect to 12V + side of component to be activated by switch/relay. i.e. fuel pump, cooling fan etc. #87A Not commonly used, this terminal has power until relay is energized. Five lead harness - 3 12ga & 2 18ga

Manufacturer Part #: ALL76186

Products specifications

Attribute name	Attribute value
Product Type	Relay Switch, Relay Switch
Sub Type	30 amps, 30 amps
Unit	Kit, Kit
Specifications	12V, Wiring Included, Universal, 12V, Wiring Included, Universal
