Shock Front GM Metric 5 Comp / 5 Reb

Name: Shock Front GM Metric 5 Comp / 5 Reb
SKU: 24-296830
Price: 146.00 USD
Availability: OutOfStock

Manufacturer: Bilstein

Manufacturer part number: 24-296830

Old price: $179.15

Price: $146.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

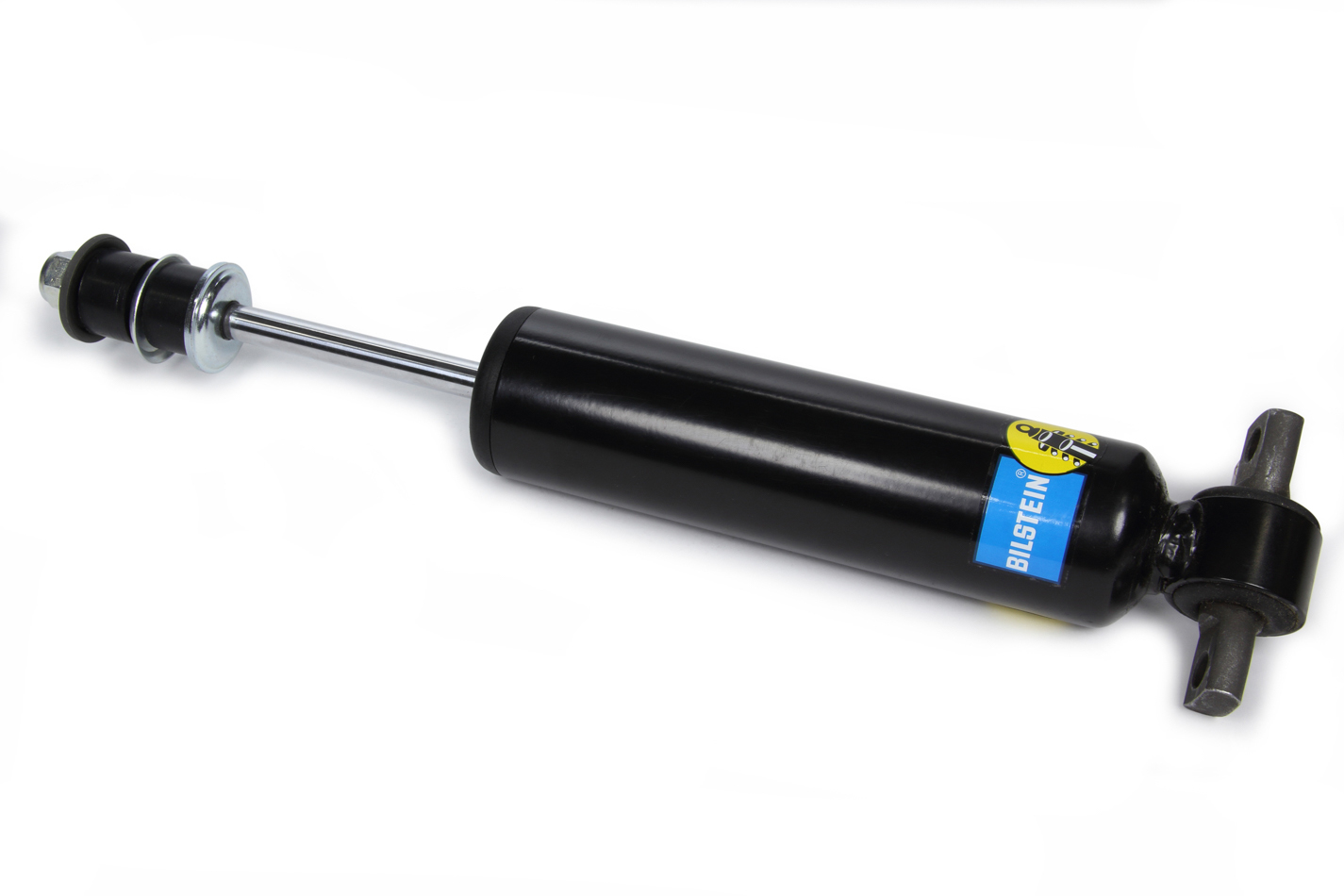

Shock - SMX Series - Monotube - C5-R5 Valve - Steel - Black Paint - Front - GM A-Body / F-Body / G-Body - Each

Manufacturer Part #: 24-296830

Products specifications

Attribute name	Attribute value
Collapsed Length (IN)	8.27
Body Material	Steel
Product Type	Shock
Piston Type	Linear
Material	Steel
Sub Type	SMX Series
Adjustable Damping	Non-Adjustable
Internal Design	Monotube
Unit	Each
Extended Length (IN)	12.01
Series	SMX Series
Body Design	Stock Mount Smooth Body
Specifications	Monotube, C5-R5 Valve, Black Paint, Front, GM A-Body / F-Body / G-Body
Boot Included	No
Finish	Black Paint
Lower Mount Type	Bar Pin
Extended Length (mm)	305.0
Upper Mount Type	Stem
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @ 10"/sec	275
Rebound @ 10"/sec	275
Spring Hardware	N/A
Piston Diameter	46mm
Collapsed Length (mm)	210.0
Shaft Diameter	11mm
Stroke/Travel Length (IN)	3.74
Stroke/Travel Length (mm)	95.0
Country of Origin	US
Condition	New
