Shock Rear GM Metric 3 Comp / 5 Reb

Name: Shock Rear GM Metric 3 Comp / 5 Reb
SKU: 24-296885
Price: 146.00 USD
Availability: InStock

Manufacturer: Bilstein

Manufacturer part number: 24-296885

Old price: $179.15

Price: $146.00

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+	6+
Price	$139.68	$136.52	$135.47

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

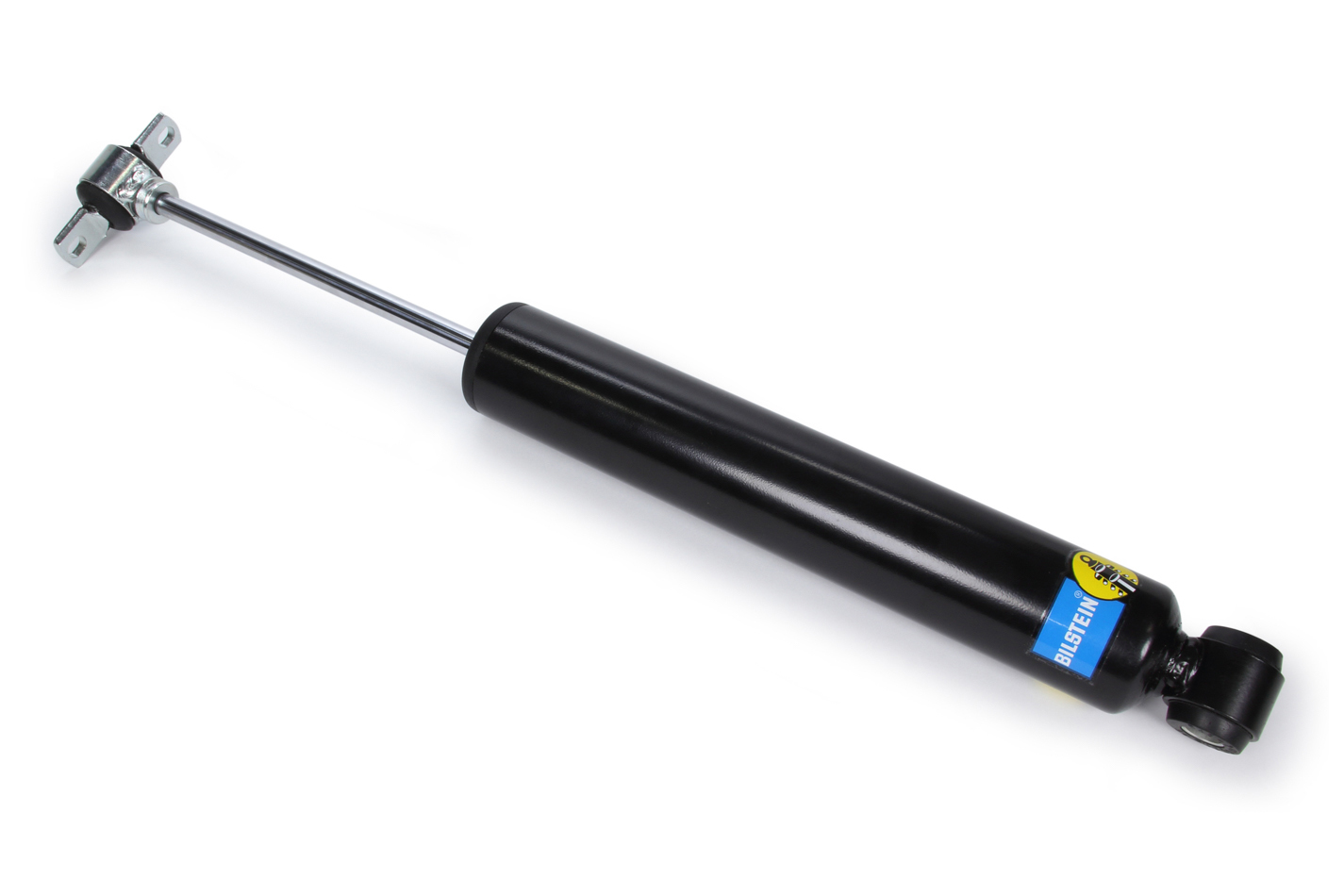

Shock - SMX Series - Monotube - C3-R5 Valve - Steel - Black Paint - Rear - GM A-Body / F-Body / G-Body - Each

Manufacturer Part #: 24-296885

Products specifications

Attribute name	Attribute value
Finish	Black Paint
Body Design	Stock Mount Smooth Body
Product Type	Shock
Collapsed Length (IN)	12.95
Material	Steel
Sub Type	SMX Series
Adjustable Damping	Non-Adjustable
Upper Mount Type	Bar Pin
Unit	Each
Series	SMX Series
Spring Seat Included	No
Segment	Motorsports
Specifications	Monotube, C3-R5 Valve, Black Paint, Rear, GM A-Body / F-Body / G-Body
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @ 10"/sec	175
Rebound @ 10"/sec	275
Spring Hardware	N/A
Collapsed Length (mm)	329.0
Piston Diameter	46mm
Shaft Diameter	11mm
Stroke/Travel Length (mm)	205.0
Stroke/Travel Length (IN)	8.07
Boot Included	No
Piston Type	Linear
Lower Mount Type	Eye
Extended Length (IN)	21.02
Internal Design	Monotube
Extended Length (mm)	534.0
Body Material	Steel
Country of Origin	US
Condition	New
