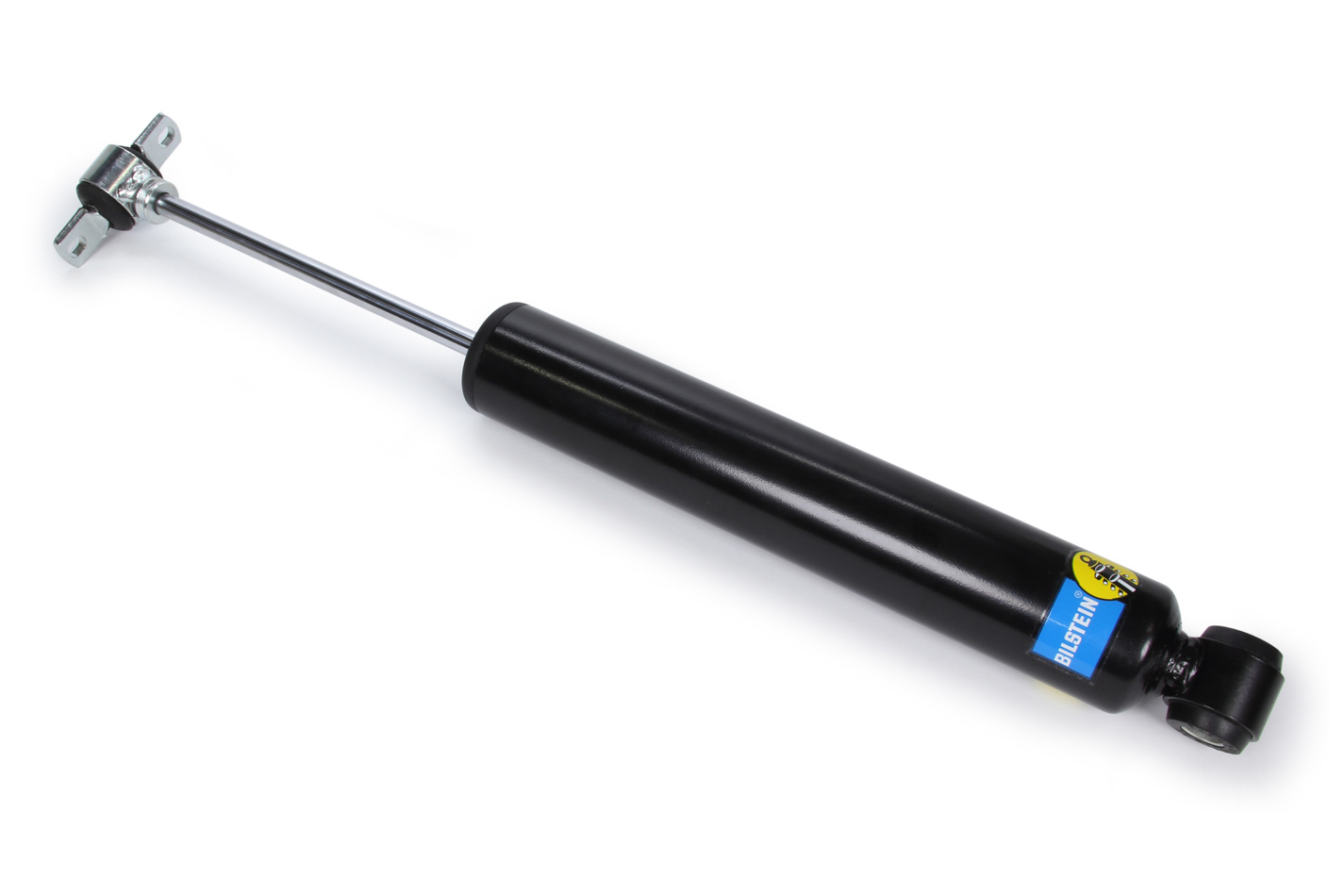

Shock Rear GM Metric 5 Comp / 5 Reb

Name: Shock Rear GM Metric 5 Comp / 5 Reb
SKU: 24-296946
Price: 146.00 USD
Availability: InStock

Manufacturer: Bilstein

Manufacturer part number: 24-296946

Old price: $179.15

Price: $146.00

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$139.68

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Shock - SMX Series - Monotube - C5-R5 Valve - Steel - Black Paint - Rear - GM A-Body / F-Body / G-Body - Each

Manufacturer Part #: 24-296946

Products specifications

Attribute name	Attribute value
Extended Length (mm)	534.0
Collapsed Length (IN)	12.95
Product Type	Shock
Finish	Black Paint
Material	Steel
Sub Type	SMX Series
Body Design	Stock Mount Smooth Body
Lower Mount Type	Eye
Unit	Each
Adjustable Damping	Non-Adjustable
Extended Length (IN)	21.02
Spring Seat Included	No
Specifications	Monotube, C5-R5 Valve, Black Paint, Rear, GM A-Body / F-Body / G-Body
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @ 10"/sec	275
Rebound @ 10"/sec	275
Spring Hardware	N/A
Piston Diameter	46mm
Collapsed Length (mm)	329.0
Shaft Diameter	11mm
Stroke/Travel Length (mm)	205.0
Stroke/Travel Length (IN)	8.07
Piston Type	Linear
Boot Included	No
Internal Design	Monotube
Upper Mount Type	Bar Pin
Series	SMX Series
Body Material	Steel
Country of Origin	US
Condition	New
