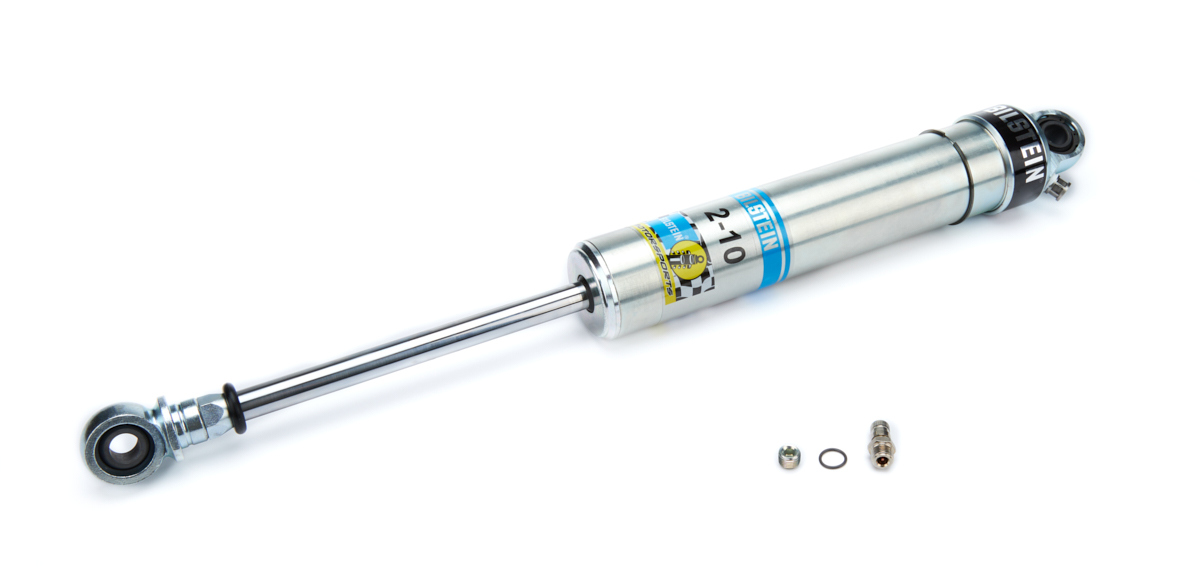

Bilstein Suspension Shock Absorber - 33-304014

SNS2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-304014
$216.99
PRICE BREAKS - The more you buy, the more you save
Quantity 2+
Price $211.49
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.

Application: No Applications

Products specifications

Attribute name Attribute value
Series SNS2 Series
Collapsed Length (IN) 12.99
Body Material Steel
Extended Length (mm) 503.0
Finish Zinc Plated
Body Design Smooth Body Screw Top (Non-coilover)
Adjustable Damping Non-Adjustable
Piston Type Digressive
Internal Design Monotube
Lower Mount Type 1/2in Heim
Extended Length (IN) 19.80
Upper Mount Type 1/2in Heim
Boot Included No
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 330.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 173.0
Stroke/Travel Length (IN) 6.81
Country of Origin US
Condition New
