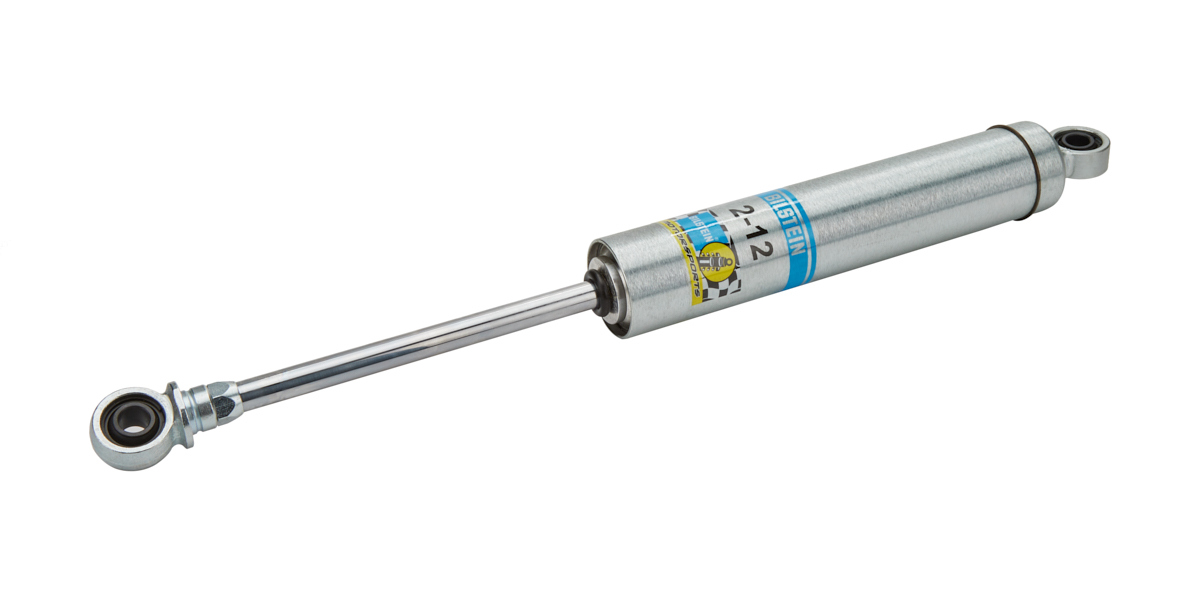

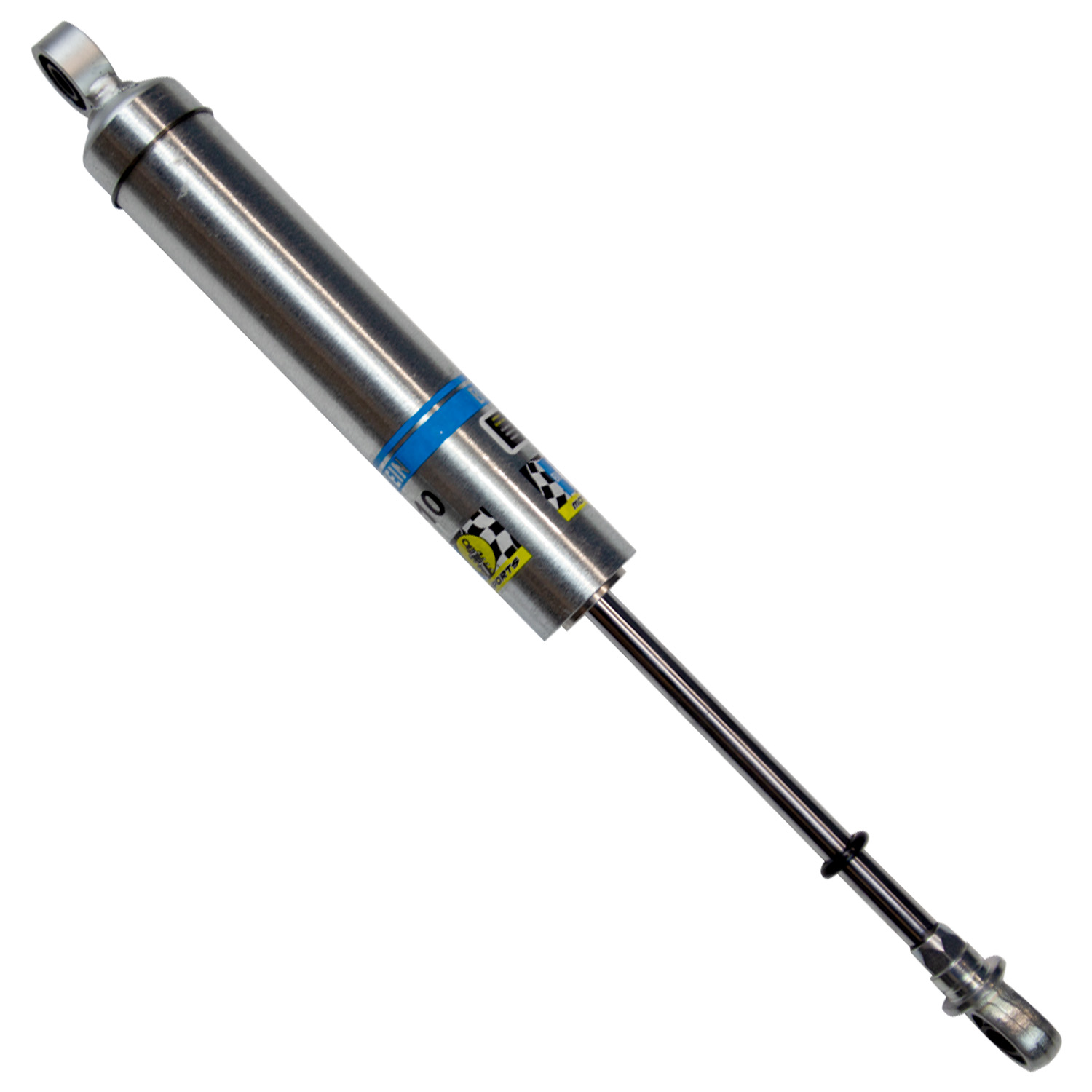

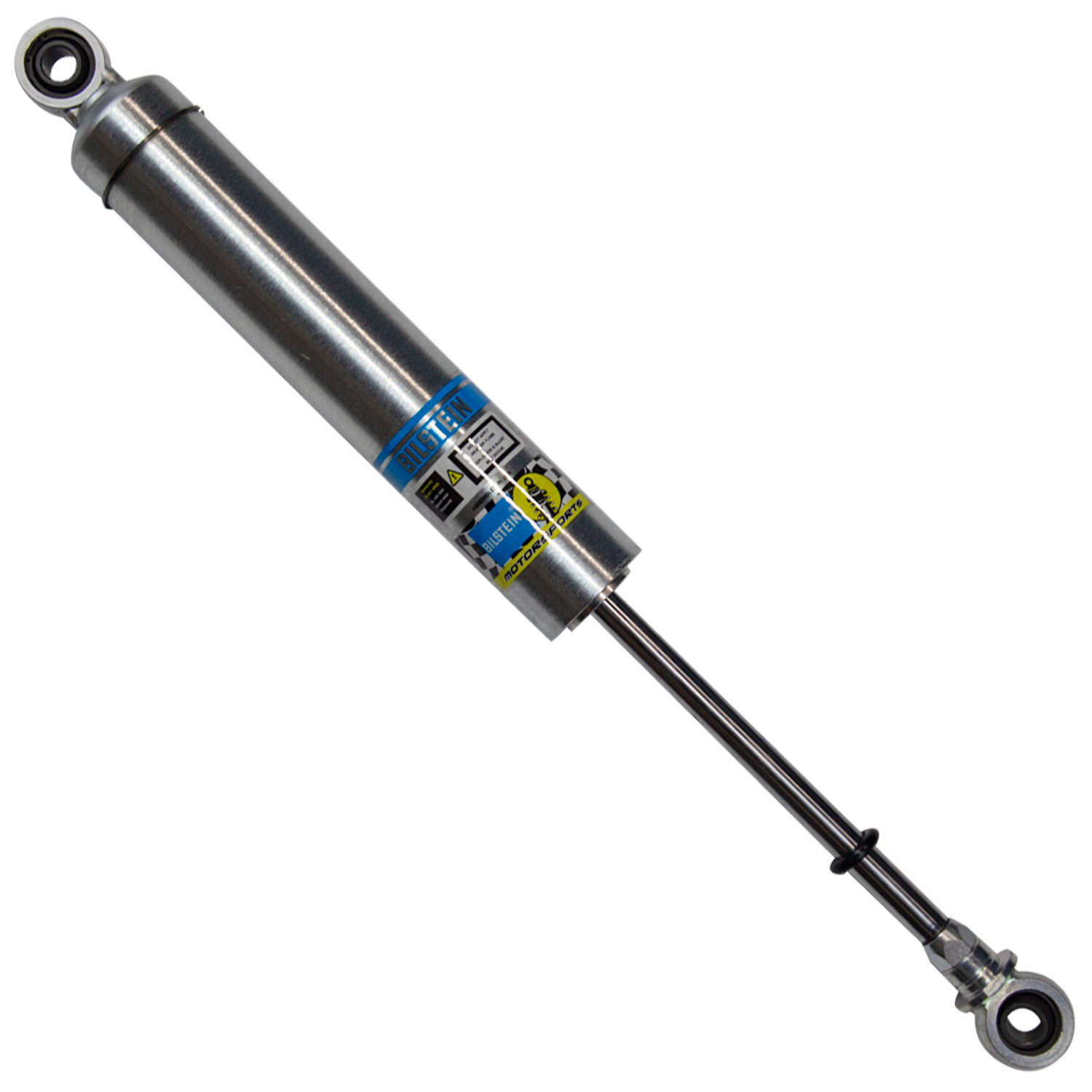

Bilstein Suspension Shock Absorber - 33-321608

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-321608
$148.48
PRICE BREAKS - The more you buy, the more you save
Quantity 2+ 4+
Price $142.16 $139.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Application: No Applications

Products specifications

Attribute name Attribute value
Extended Length (IN) 20.08
Piston Type Digressive
Collapsed Length (IN) 13.15
Body Material Steel
Lower Mount Type 1/2in Heim
Spring Seat Included No
Adjustable Damping Non-Adjustable
Finish Zinc Plated
Extended Length (mm) 510.0
Internal Design Monotube
Body Design Smooth Body (Non-Coilover)
Upper Mount Type 1/2in Heim
Series SZ Series
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Rebound @ 10"/sec 1200
Compression @ 10"/sec 125
Boot Included No
Piston Diameter 46mm
Collapsed Length (mm) 334.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 176.0
Stroke/Travel Length (IN) 6.93
Country of Origin US
Condition New
