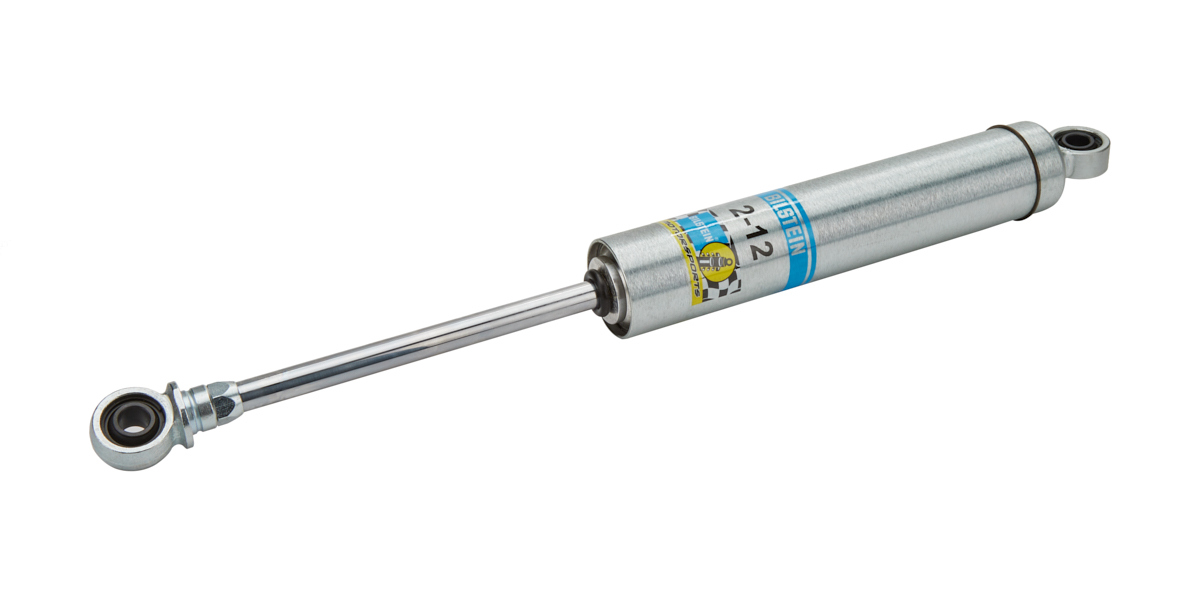

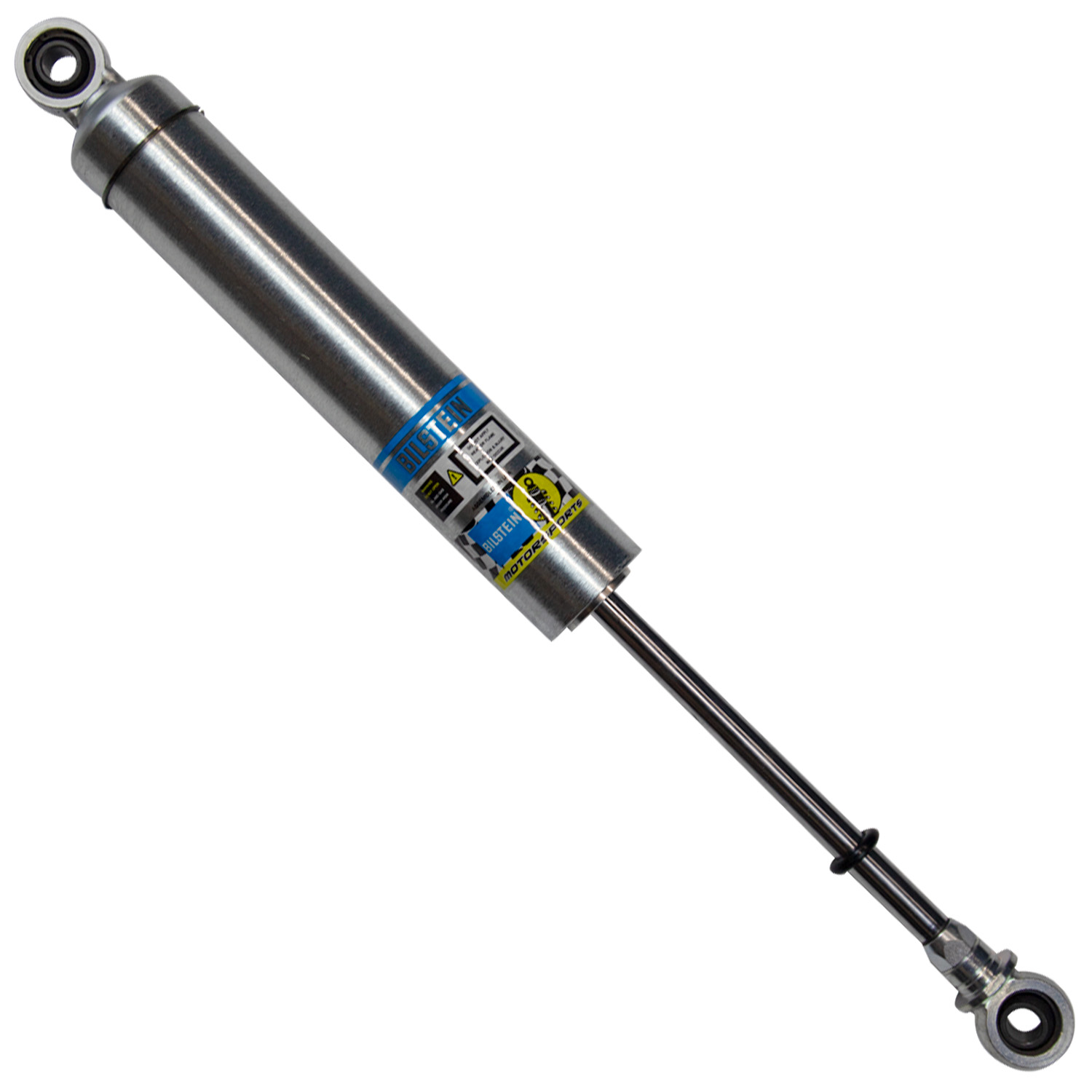

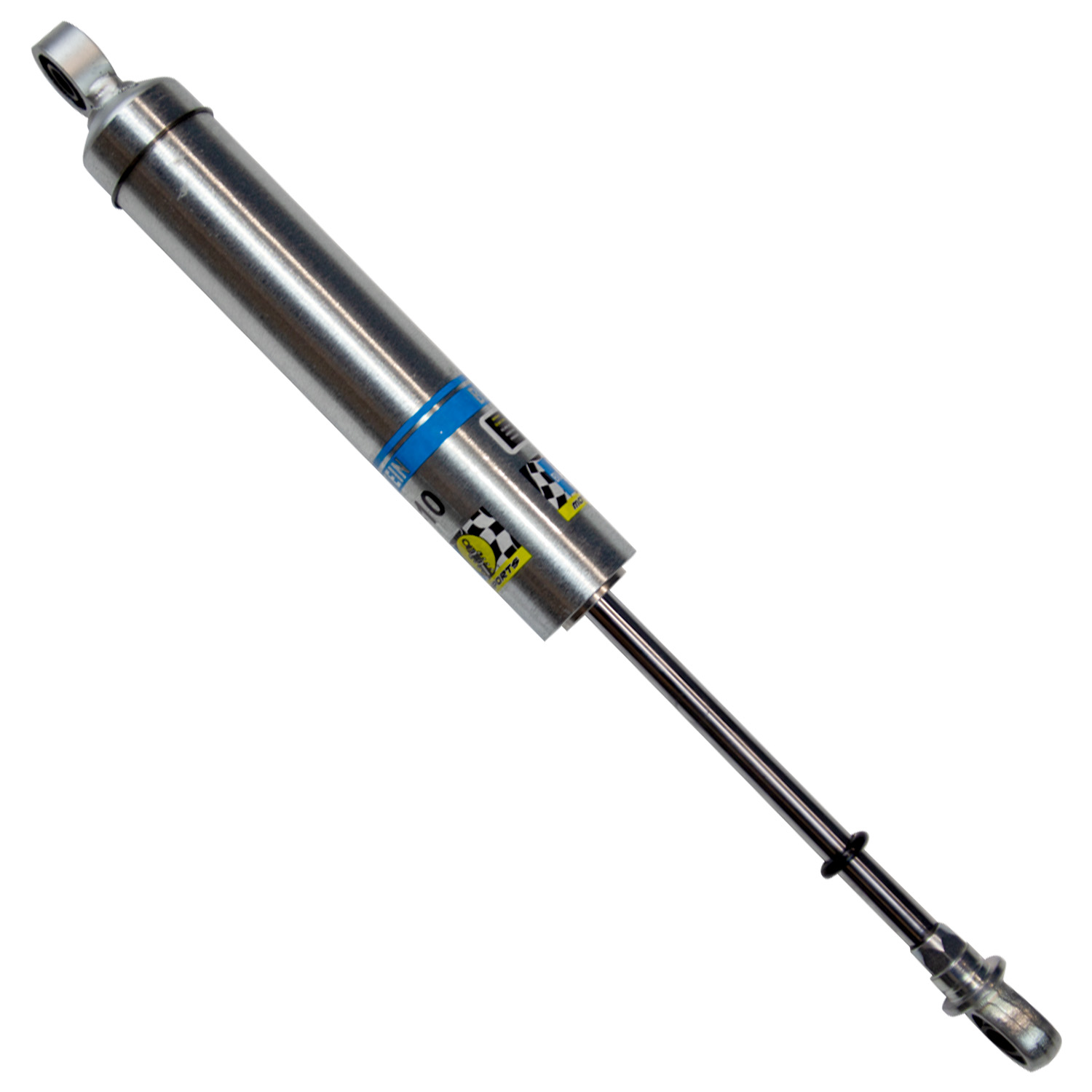

Bilstein Suspension Shock Absorber - 33-321653

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-321653
$148.48
PRICE BREAKS - The more you buy, the more you save
Quantity 2+
Price $142.16
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Application: No Applications

Products specifications

Attribute name Attribute value
Body Material Steel
Upper Mount Type 1/2in Heim
Internal Design Monotube
Lower Mount Type 1/2in Heim
Extended Length (IN) 20.08
Extended Length (mm) 510.0
Piston Type Digressive
Collapsed Length (IN) 13.15
Finish Zinc Plated
Spring Seat Included No
Series SZ Series
Body Design Smooth Body (Non-Coilover)
Adjustable Damping Non-Adjustable
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @ 10"/sec 175
Rebound @ 10"/sec 500
Boot Included No
Piston Diameter 46mm
Collapsed Length (mm) 334.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 176.0
Stroke/Travel Length (IN) 6.93
Country of Origin US
Condition New
