Silver Sport Transmissions Manual Transmission Assembly - TUET 16363

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

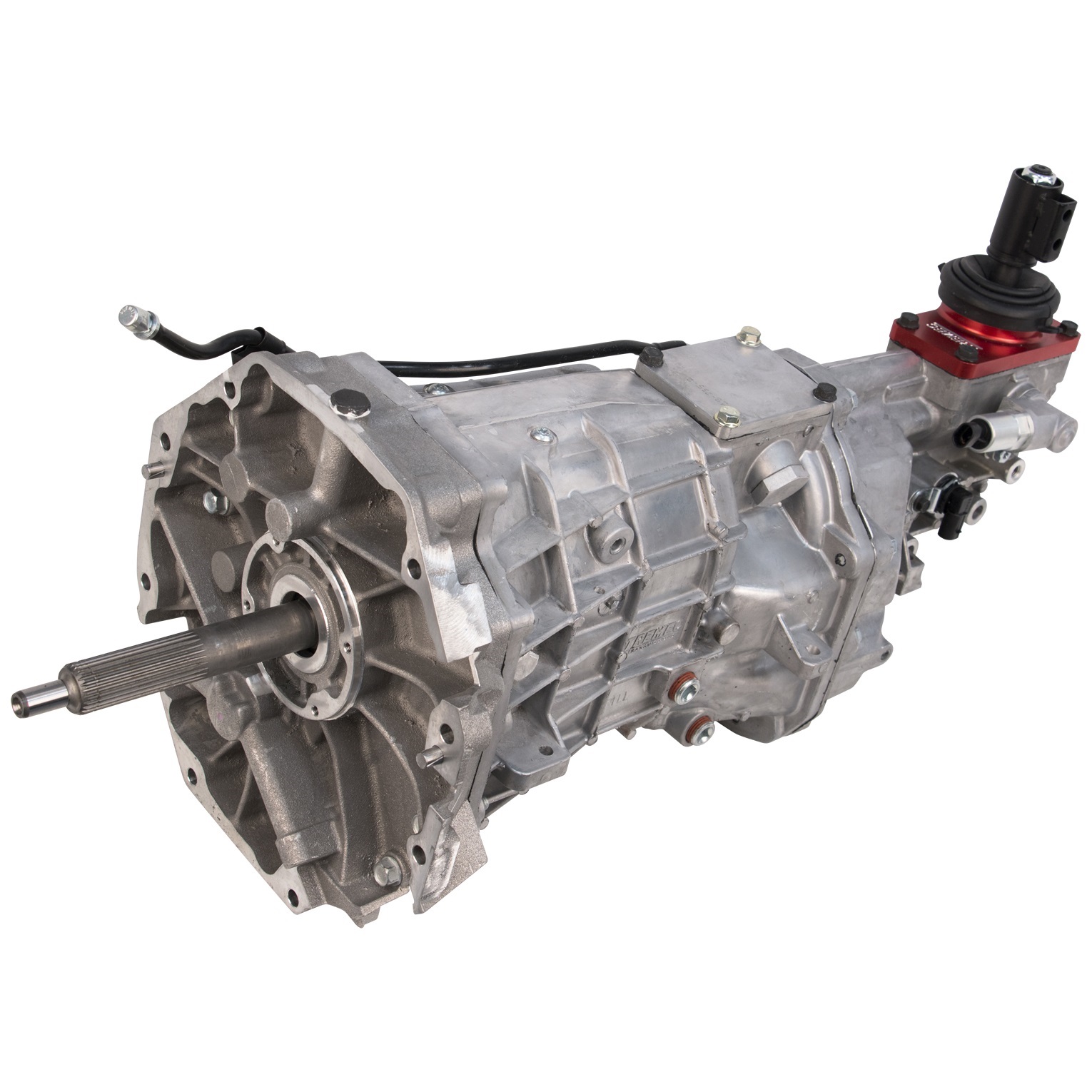

Tremec Magnum-F 6 Spd Transmission
Manufacturer part number: TUET 16363
$3,545.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed to replace T-56 transmissions in 1998-2002 GM F-bodies, the Magnum-F leverages TREMEC's TR-6060/Magnum architecture in order to provide fourth-gen enthusiasts significantly improved performance and relief from a shrinking pool of quality T-56 replacement parts.One shifter location is designed for LS1-powered 1998-2002 F-bodies and other applications that utilize a similar shifter position. Beneficiaries include third-generation F-bodies, LT1-powered fourth-gens, LS-swapped late models of all varieties, and sport compact applications such as A80 Supras, FD RX-7s, and more! Where the original Magnum shifter locations may prove too far forward, and the extended length Magnum XL's too far back, the Magnum-F's in-between position often proves to be just right.

Products specifications

Attribute name Attribute value
Torque Capacity 700
Input Shaft Diameter 1.125
Input Shaft Spline Quantity 26
Output Shaft Spline Quantity 31
Bellhousing Included No
Case Material Aluminum
Number of Gears Six
First Gear Ratio 2.97:1
Second Gear Ratio 2.10:1
Third Gear Ratio 1.46:1
Forth Gear Ratio 1.00:1
Fifth Gear Ratio 0.80:1
Sixth Gear Ratio 0.63:1
Reverse Gear Ratio 2.90:1
Shifter Included Yes
Yoke Included No
Yoke Style Slip-on
Note 1993-97 LT1 Applications will need a Push Style Clutch Conversion. Call for details. 865-609-8187
Quantity Sold Individually
Country of Origin MX
Condition New
🚗 Compatible with
20 vehicles are compatible with this product
Year Make Model
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
1993 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1993 Pontiac Firebird
1994 Pontiac Firebird
1995 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
