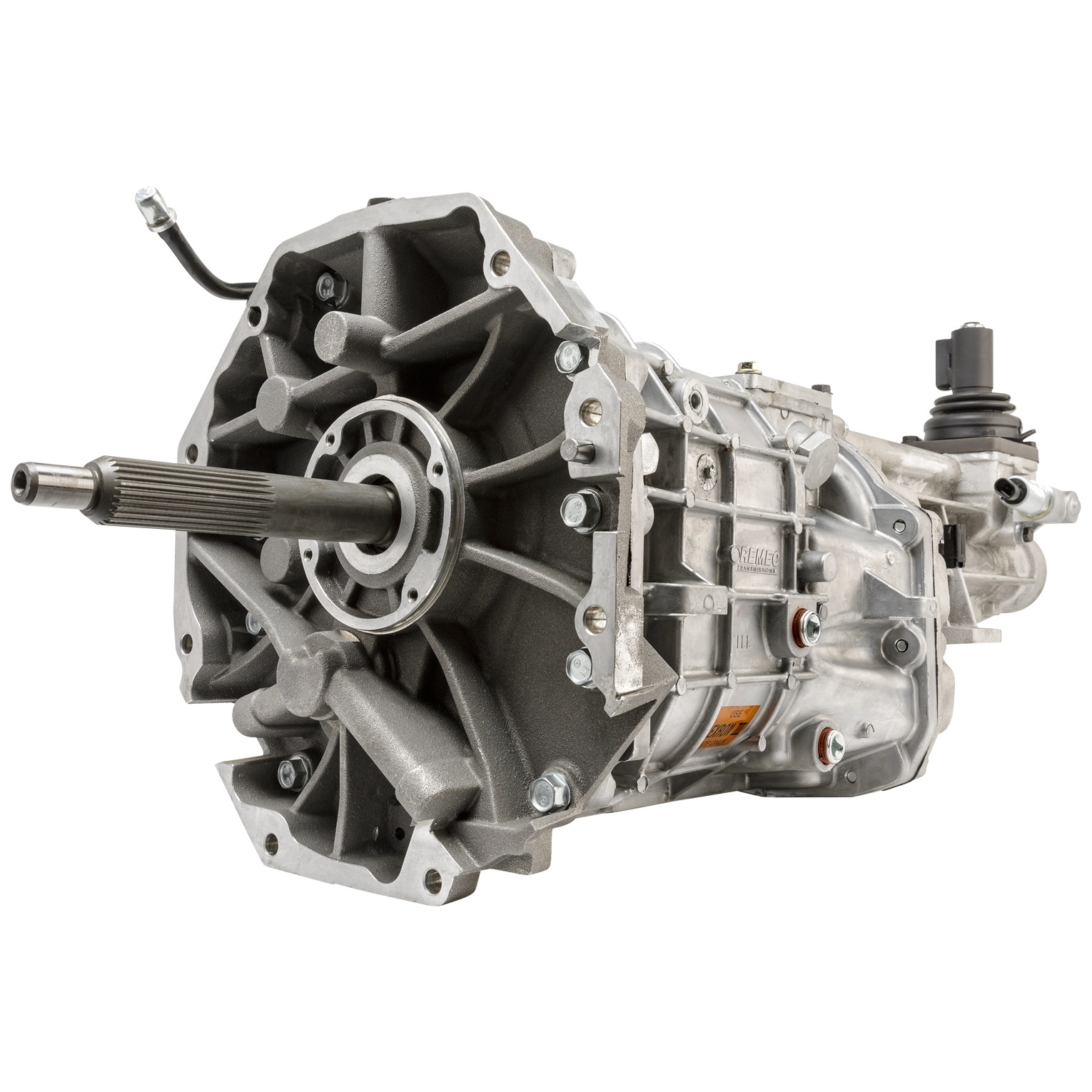

Silver Sport Transmissions Manual Transmission Assembly - TUKT 12019

Tremec Magnum XL 6 Speed Transmission
Manufacturer part number: TUKT 12019
$4,495.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. Initially Available For 2005-Up "S197" Mustangs, The Magnum XL Also Includes An SFI-Approved Steel Bellhousing, Swap Specific Crossmember And OE-Quality Mount. For Strength Purposes the Magnum XL Requires A 26-Spline Clutch and One-Piece Driveshaft.

Application: Ford: Mustang 15 - 18 5.2 L Engine Ford: Mustang 11 - 18 5 L Engine Ford: Mustang 07 - 12 5.4 L Engine Ford: Mustang 05 - 10 4.6 L Engine Ford: Mustang 13 - 14 5.8 L Engine

Products specifications

Attribute name Attribute value
Application 2005-2017 Ford Mustang 4.6L/5.0L
Transmission Tremec T-56 Magnum XL
Gear Qty 6 spd
Input Shaft Diameter 1.125 in.
Input Shaft Spline Quantity 26
Output Shaft Spline Quantity 31
Bellhousing Included Yes
Bellhousing Material Steel
Pivot Ball Included No
Shifter Included Yes
Torque Capacity 700
Clutch Fork Included No
Yoke Included No
Yoke Style Slip-on
1st Gear Ratio 2.66
2nd Gear Ratio 1.78
3rd Gear Ratio 1.30
4th Gear Ratio 1.00
5th Gear Ratio 0.74
6th Gear Ratio 0.50
Quantity Sold Individually
Country of Origin MX
Condition New
