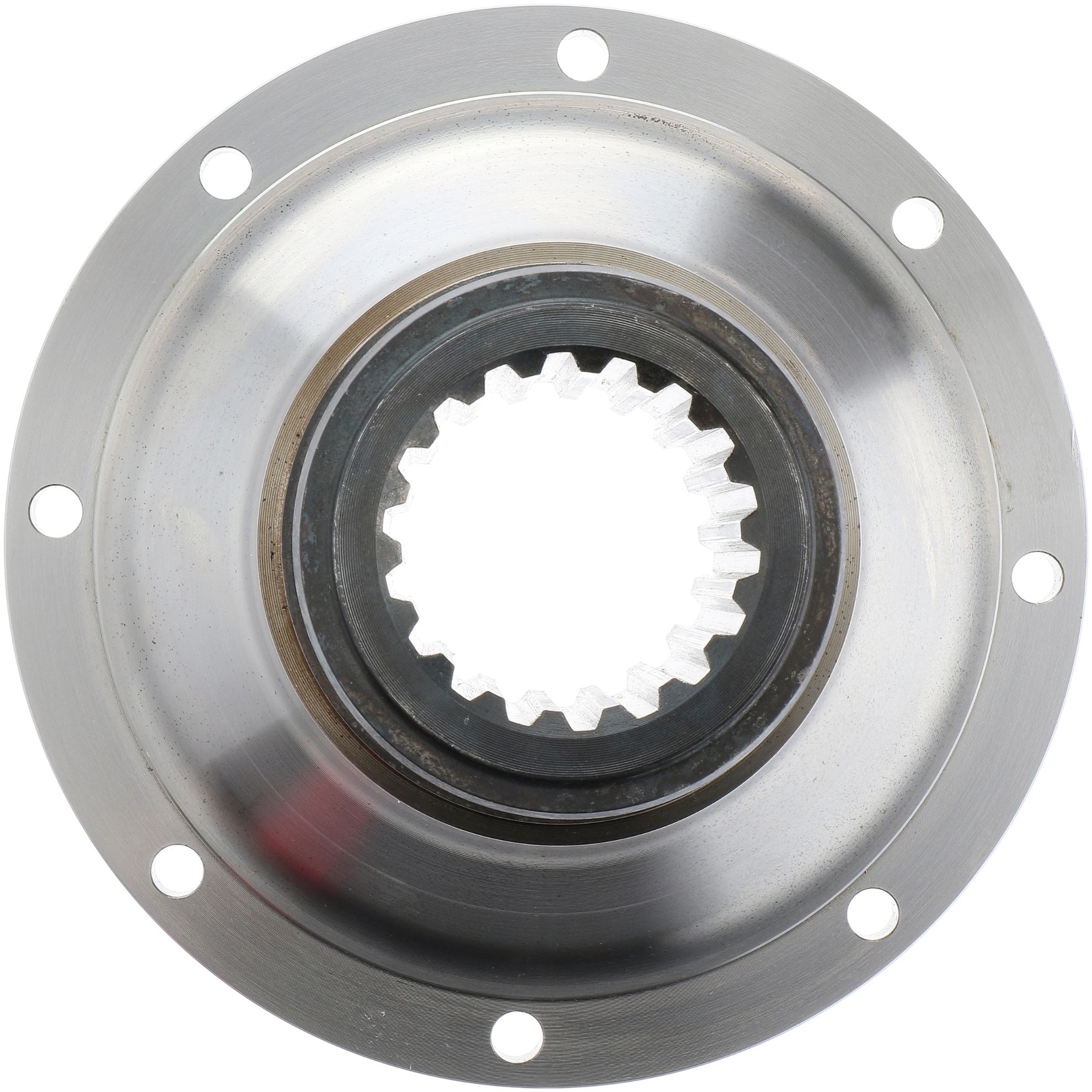

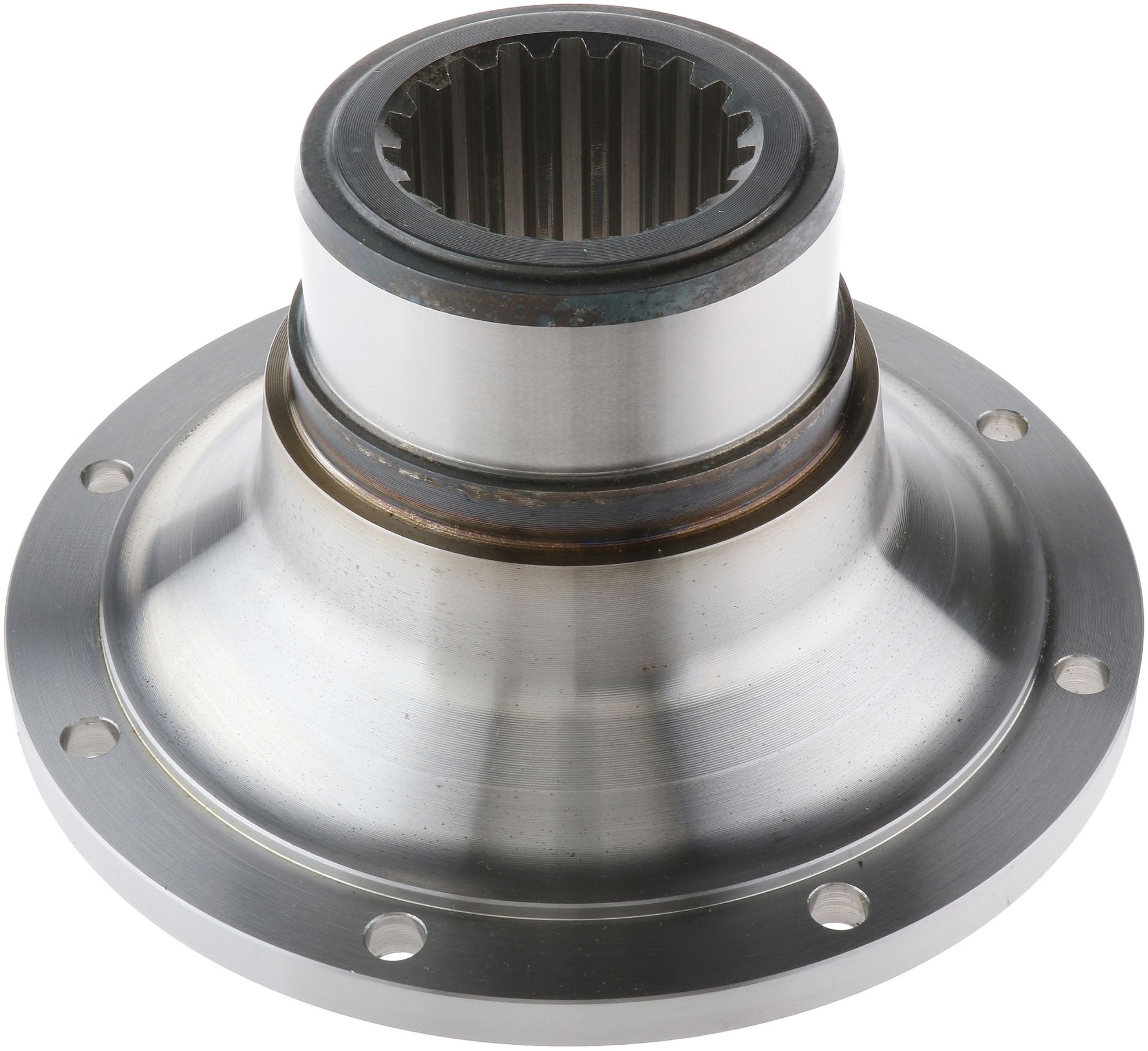

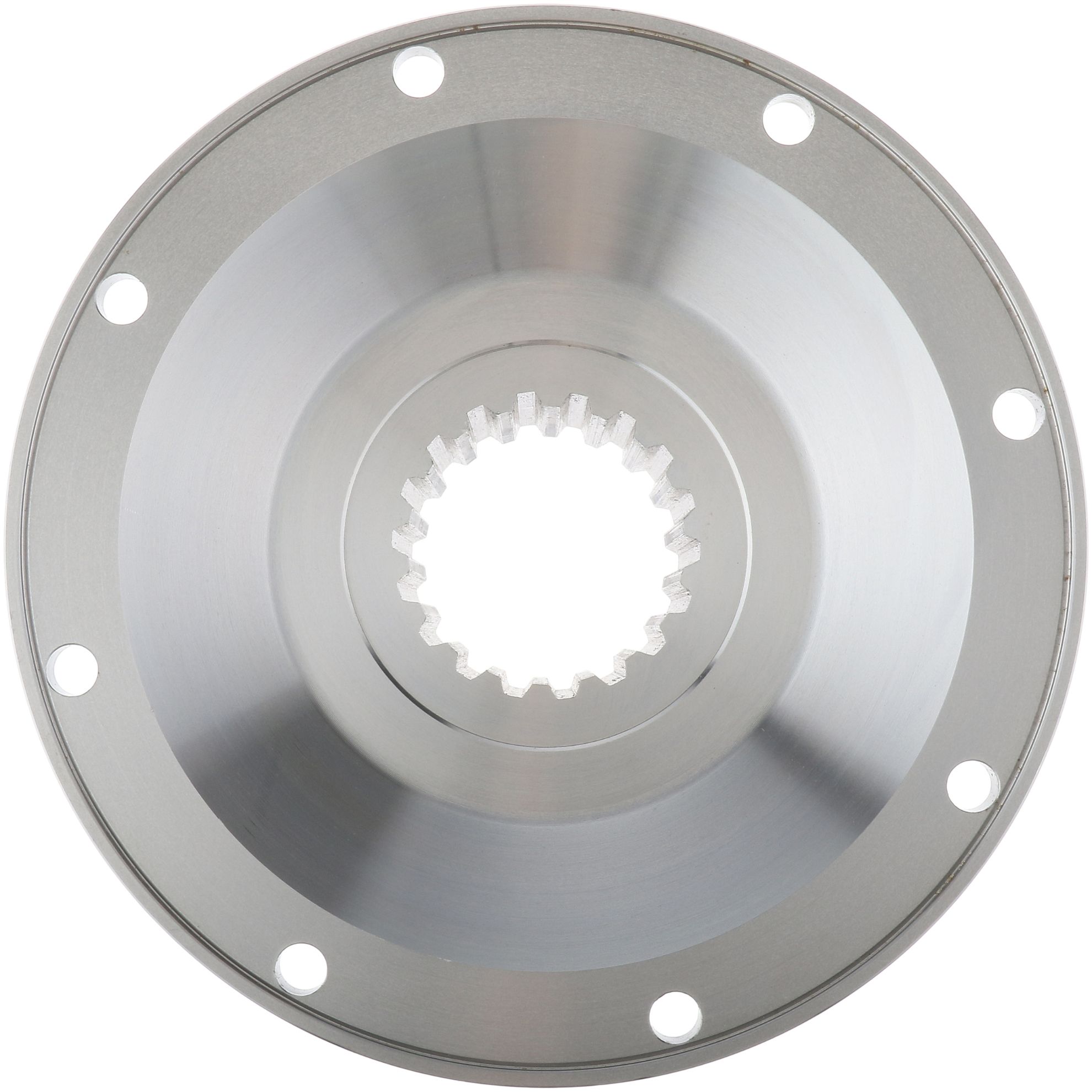

Spicer Automatic Transmission Output Shaft Flange - 6-1-4541

Name: Spicer Automatic Transmission Output Shaft Flange - 6-1-4541
SKU: 6-1-4541
Availability: InStock

Automatic Transmission Output Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 6-1-4541

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Spline Count	18 I
Involute Spline	Y
Series	1710
Material	Steel
Prop 65	NO
Companion Flange Assembly	N
Flange Face To End Of Hub (G)	4.031
Ground Hub Diameter In.	3.500
Length Thru Hole (F) In.	3.375
Major Diameter (D) In.	2.364
Pilot Diameter (C) In.	7.750 - FEMALE
Brake Drum Pilot Diameter In.	6.656
Bolt Circle Dia.(B) In.(FL YK)	7.250
Bolt Hole Diameter In (FL YK)	0.375 - DRILLED
Number Of Holes (FL YK)	8
Country of Origin	US
Condition	New
