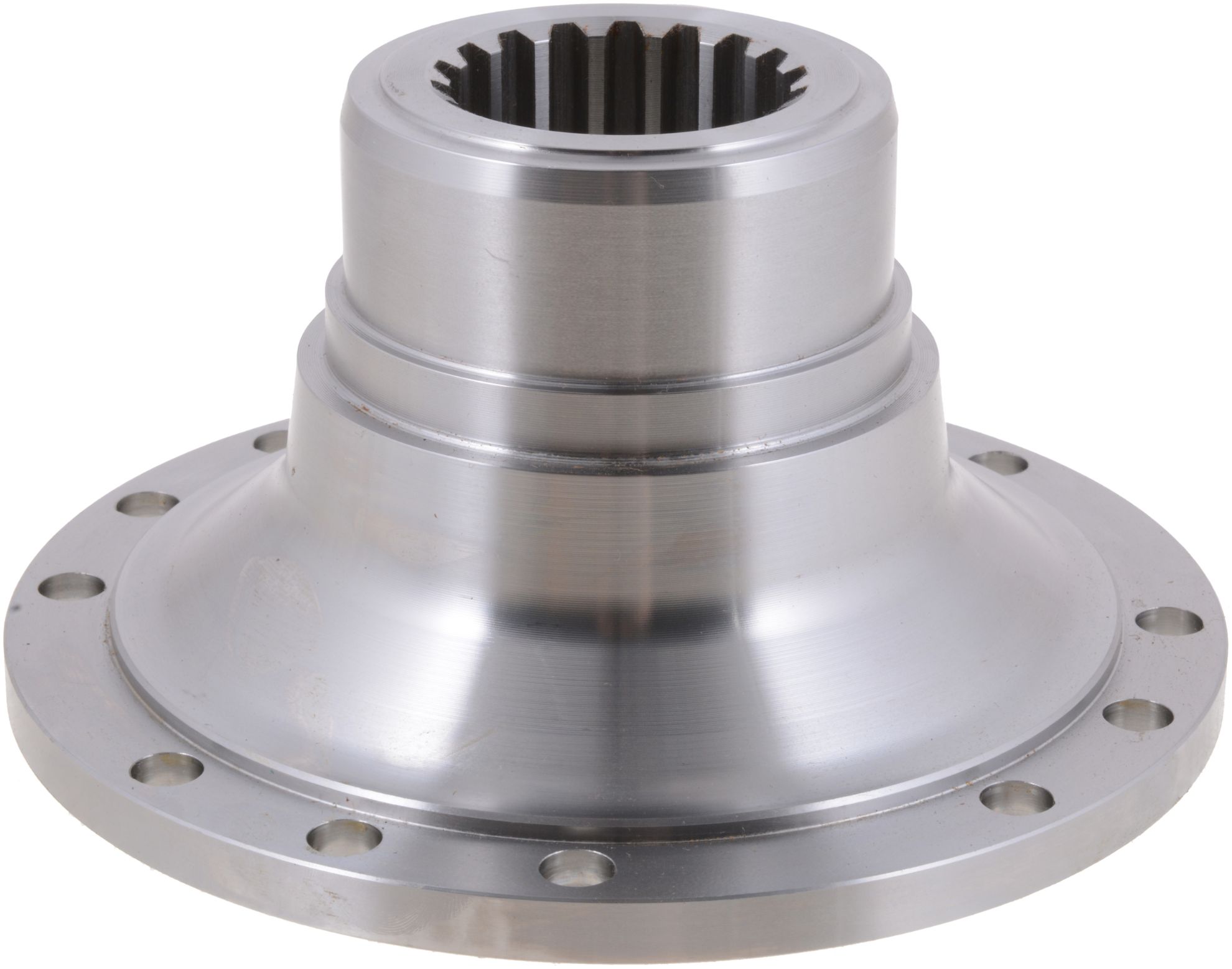

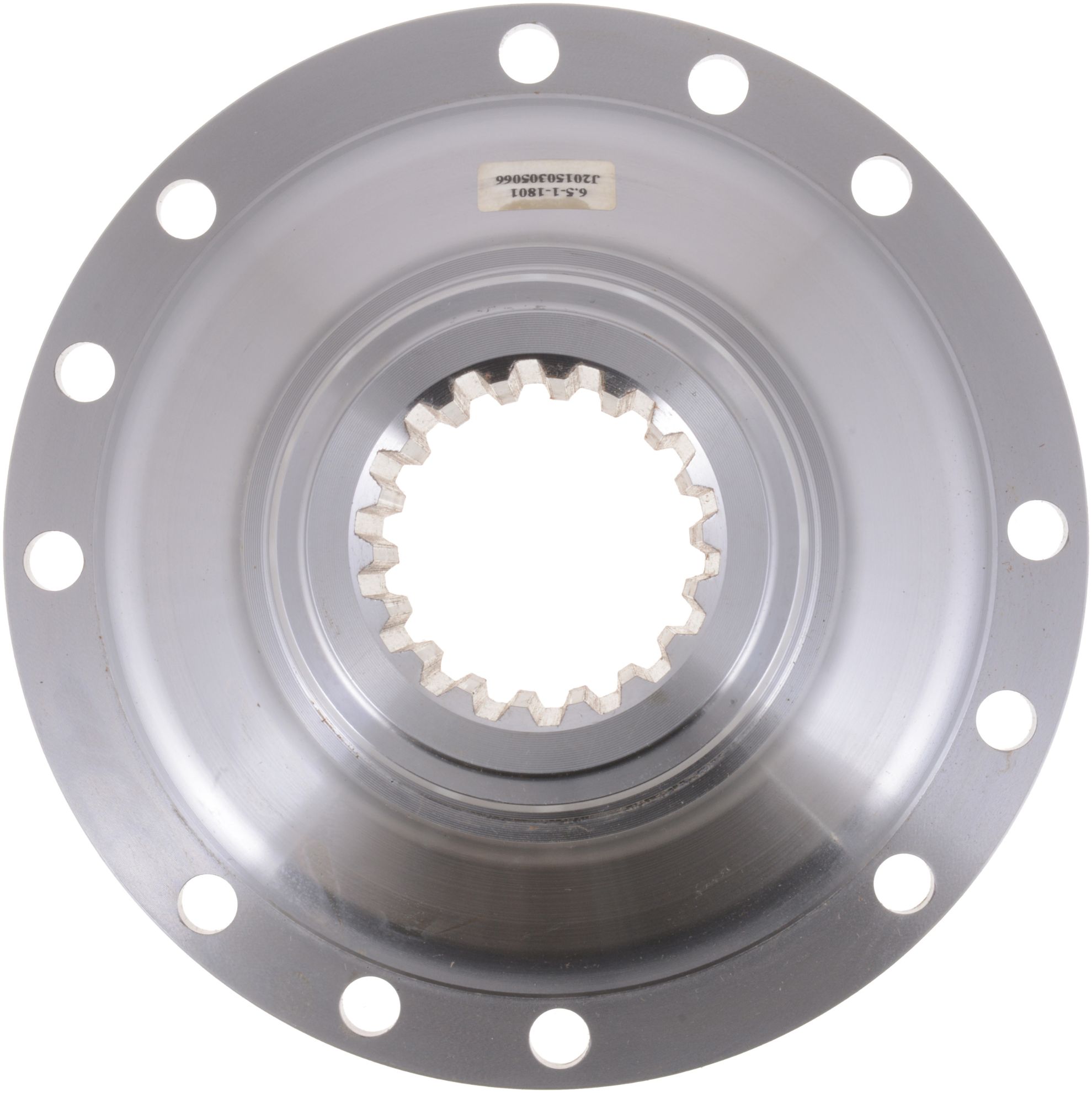

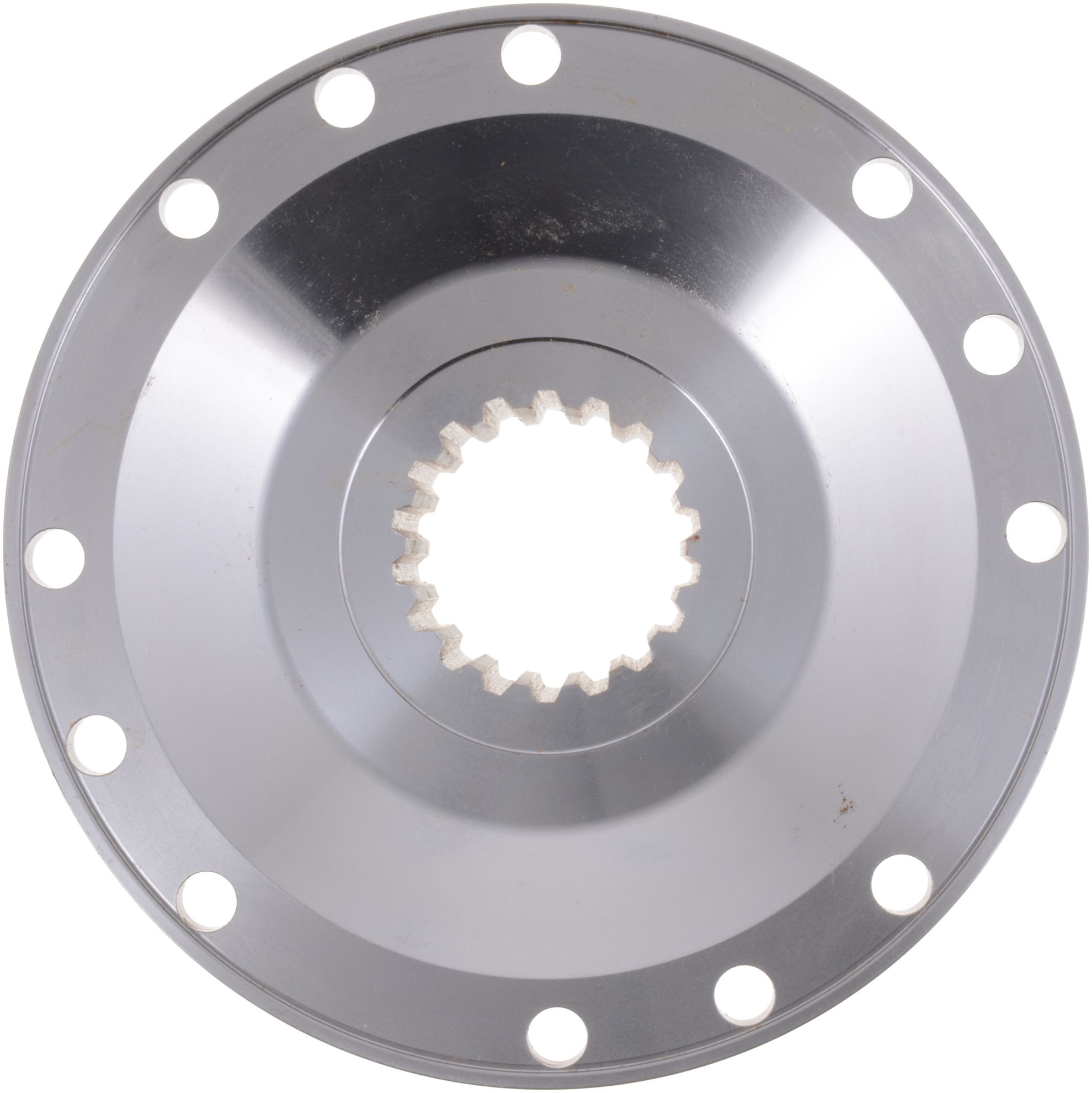

Spicer Automatic Transmission Output Shaft Flange - 6.5-1-1801

Name: Spicer Automatic Transmission Output Shaft Flange - 6.5-1-1801
SKU: 6.5-1-1801
Availability: InStock

Automatic Transmission Mission; Output Shaft; Companion Flange

Manufacturer: Spicer

Manufacturer part number: 6.5-1-1801

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1810
Material	Steel
Spline Count	18 I
Involute Spline	Y
Prop 65	NO
Companion Flange Assembly	N
Flange Face To End Of Hub (G)	4.031
Ground Hub Diameter In.	3.500
Length Thru Hole (F) In.	3.375
Major Diameter (D) In.	2.364
Pilot Diameter (C) In.	7.750 - FEMALE
Bolt Circle Dia.(B) In.(FL YK)	7.250
Bolt Hole Diameter In (FL YK)	0.438 - DRILLED
Number Of Holes (FL YK)	12
Country of Origin	US
Condition	New
