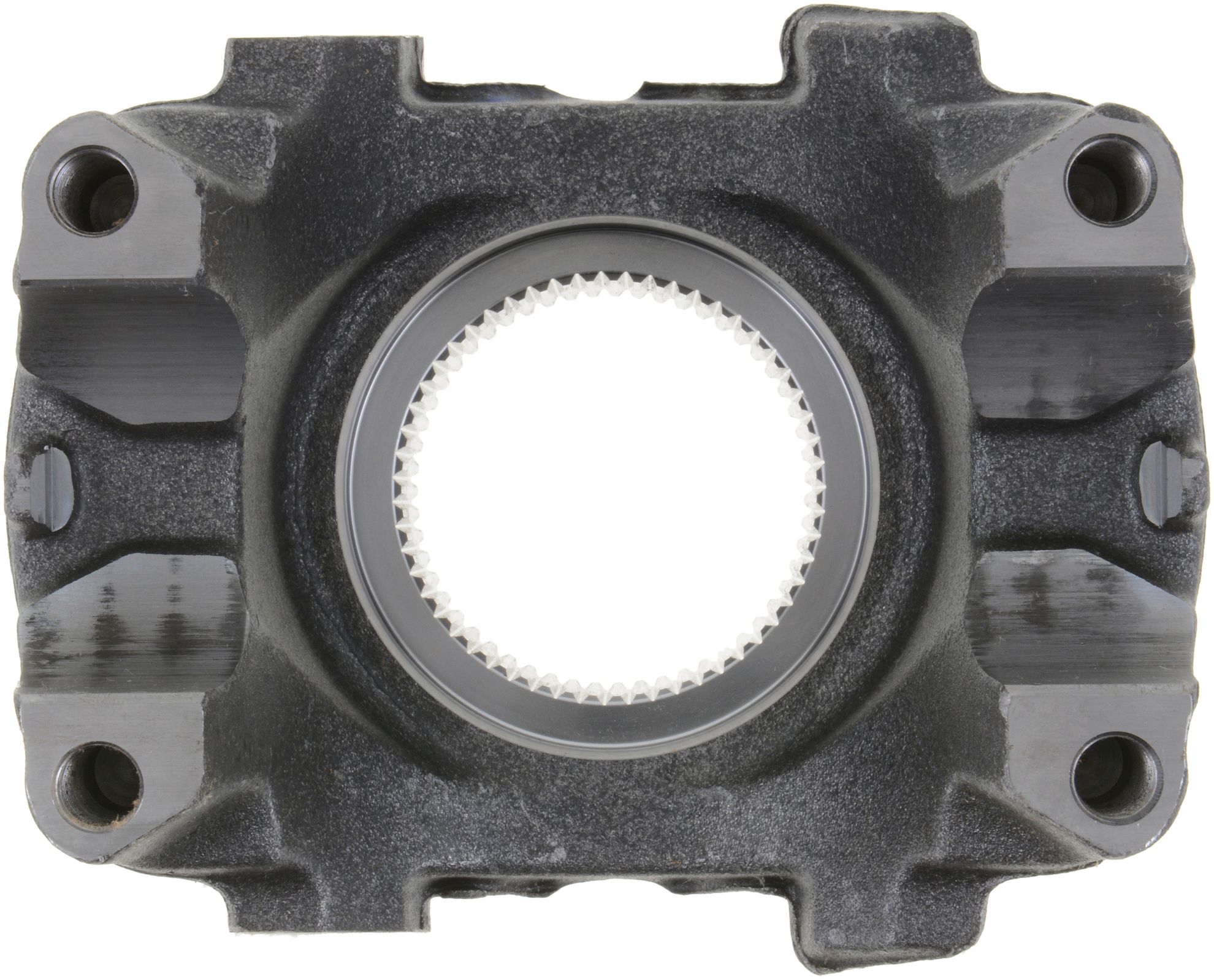

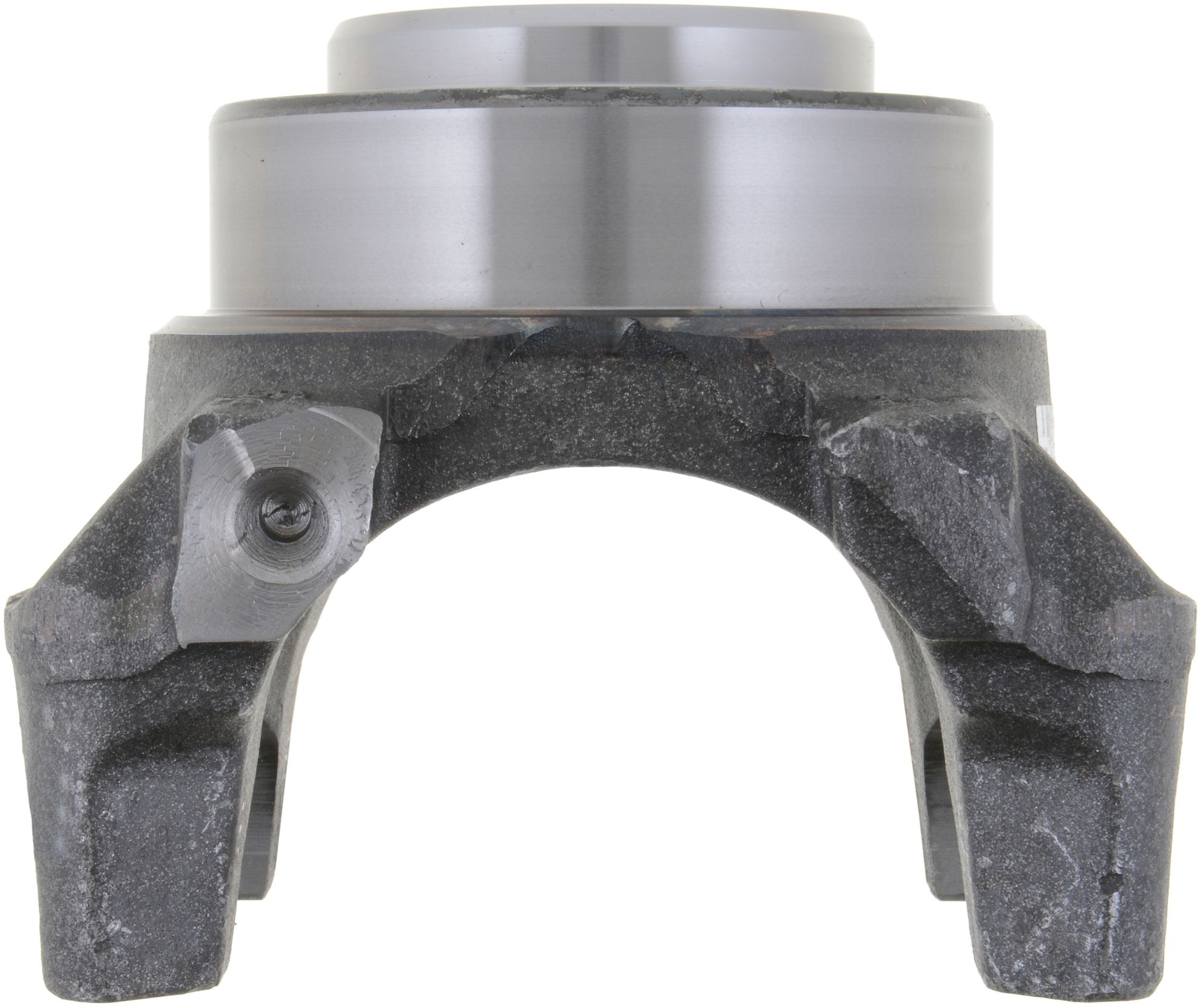

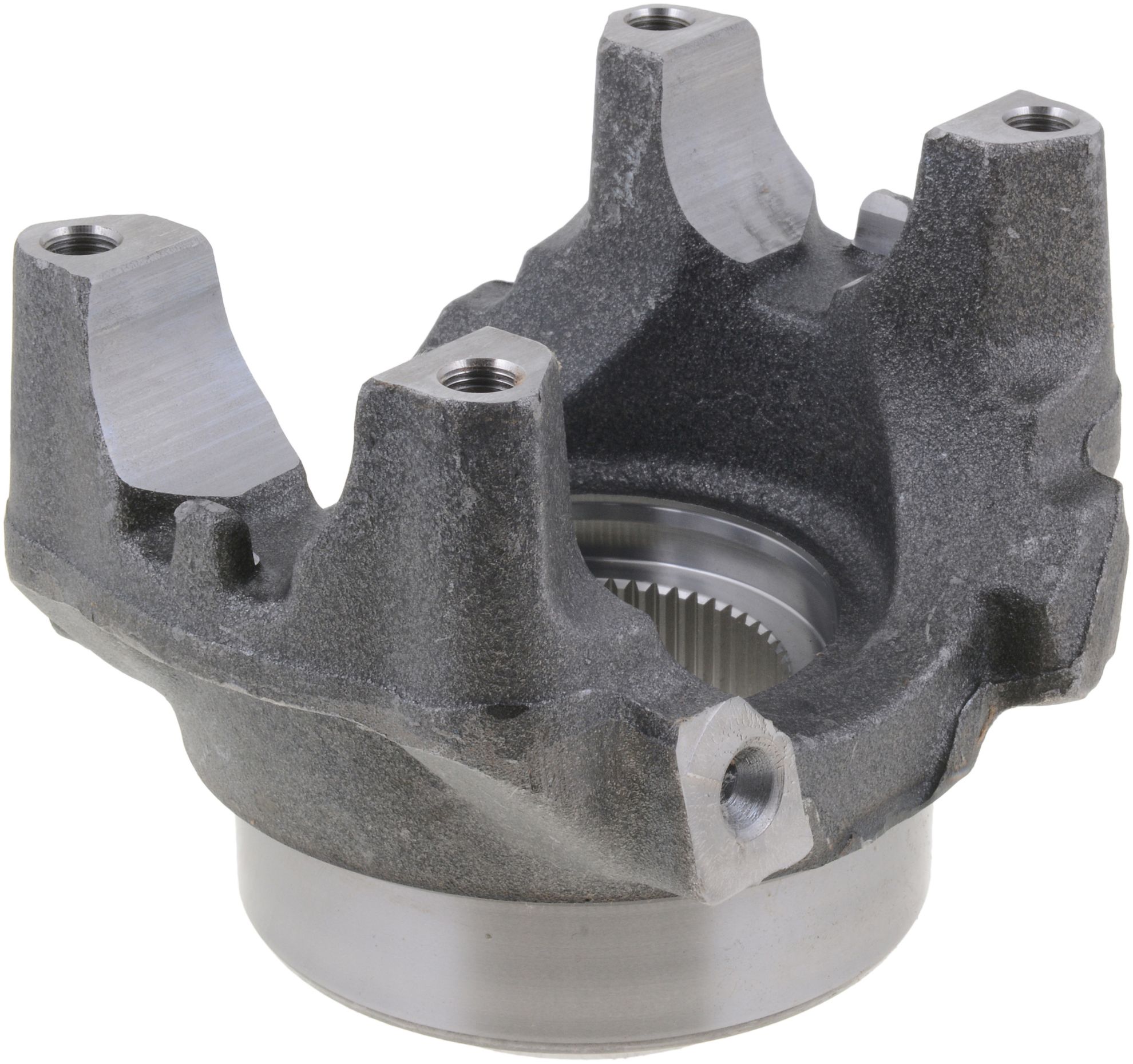

Spicer Automatic Transmission Yoke - 170-4-1091-1

Name: Spicer Automatic Transmission Yoke - 170-4-1091-1
SKU: 170-4-1091-1
Availability: InStock

Automatic Transmission Yoke; Output End Yoke

Manufacturer: Spicer

Manufacturer part number: 170-4-1091-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL170
Material	Steel
Spline Count	55
Type	Splined Hole
Hub Diameter R	4.725
Involute Spline	I
Length Thru Hole Q	2.047
Outside Yoke Dimension In.(E)	6.456
Yoke Bearing Dimension (In) D	2.166
Yoke Style	HR
Major Diameter	2.795
C/L To End Hub S	5.200
Joint Angle #1	25
Prop 65	NO
C-Bore Depth	0.150
C-Bore Diameter	2.856
Country of Origin	MX
Condition	New
