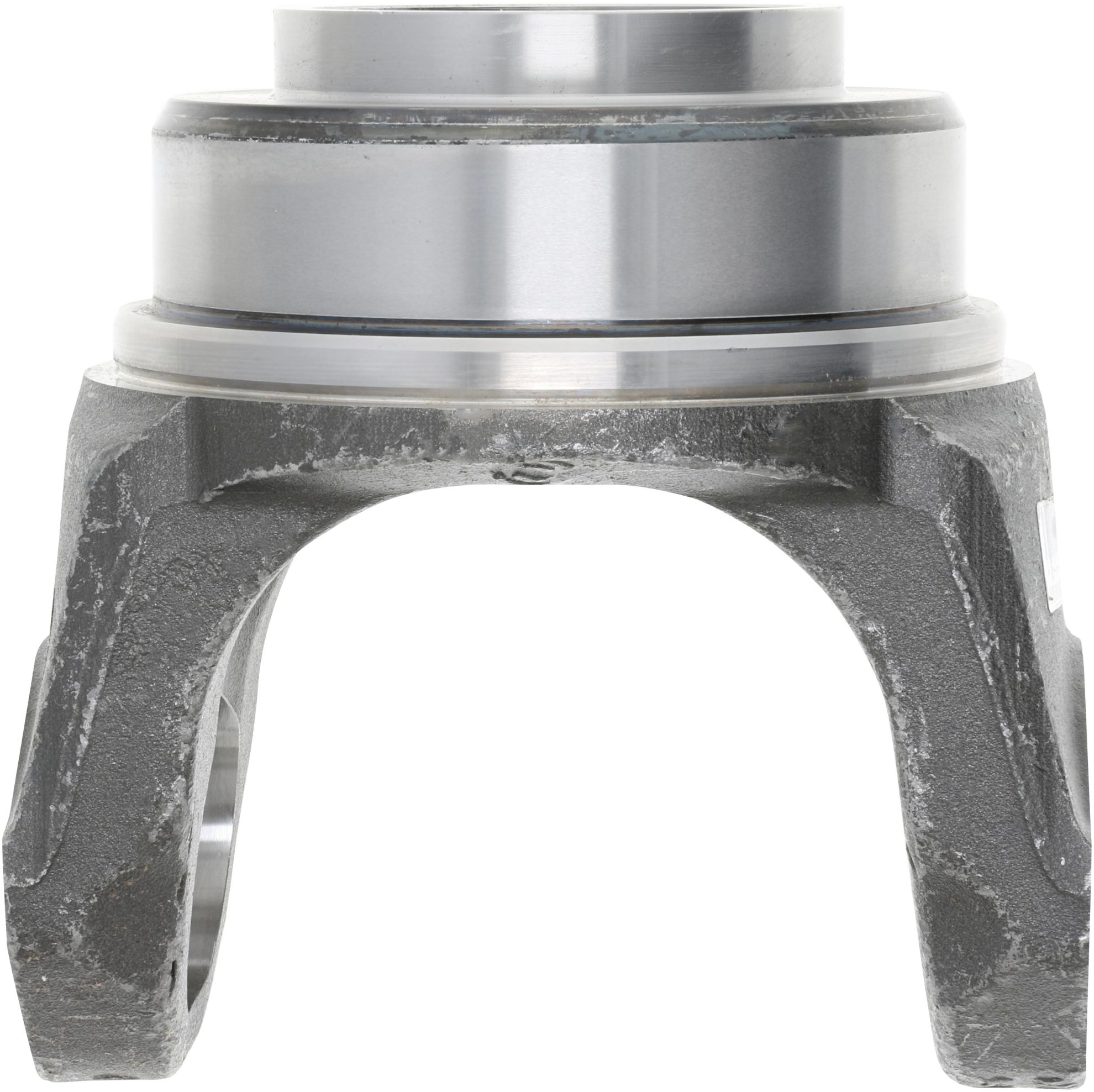

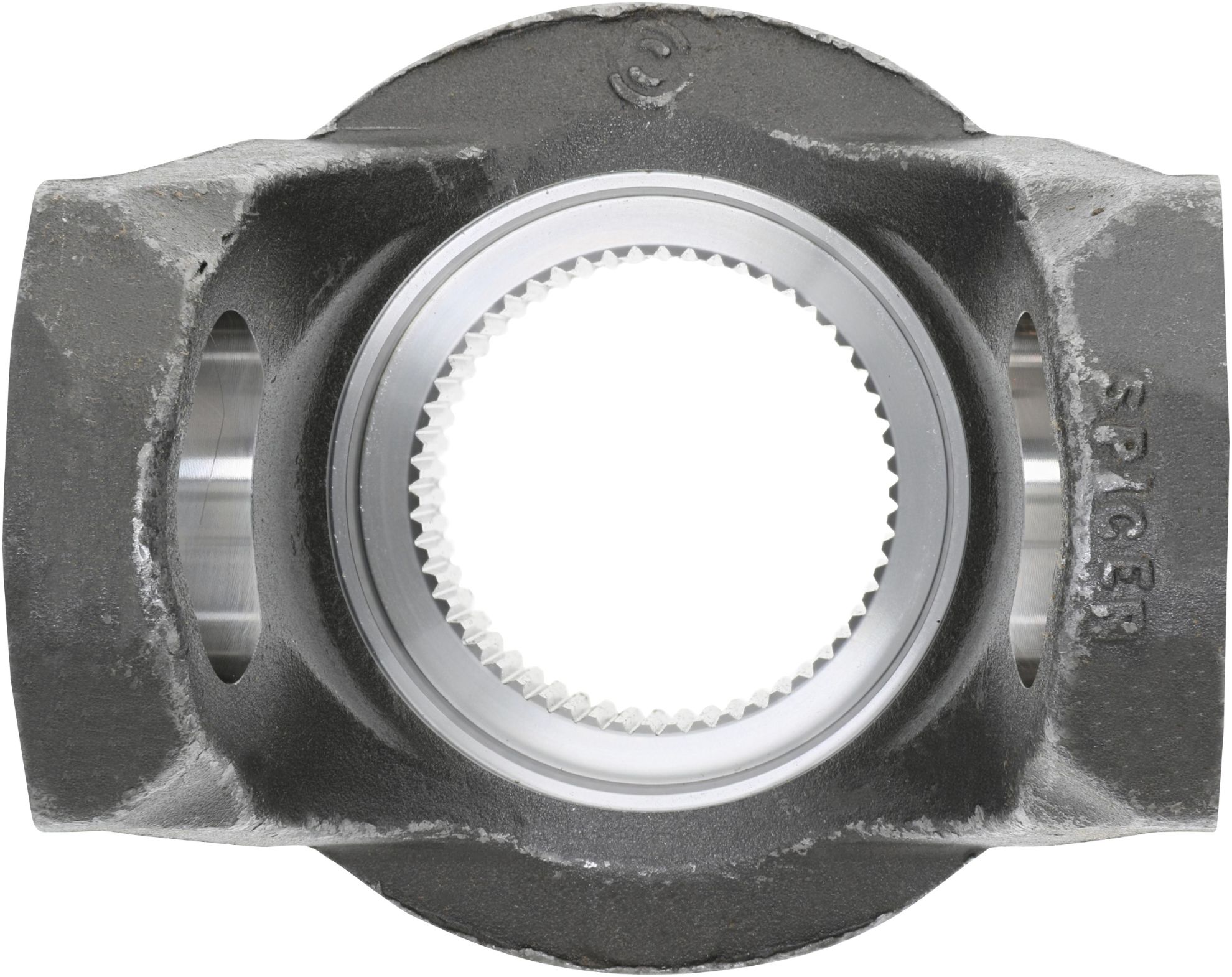

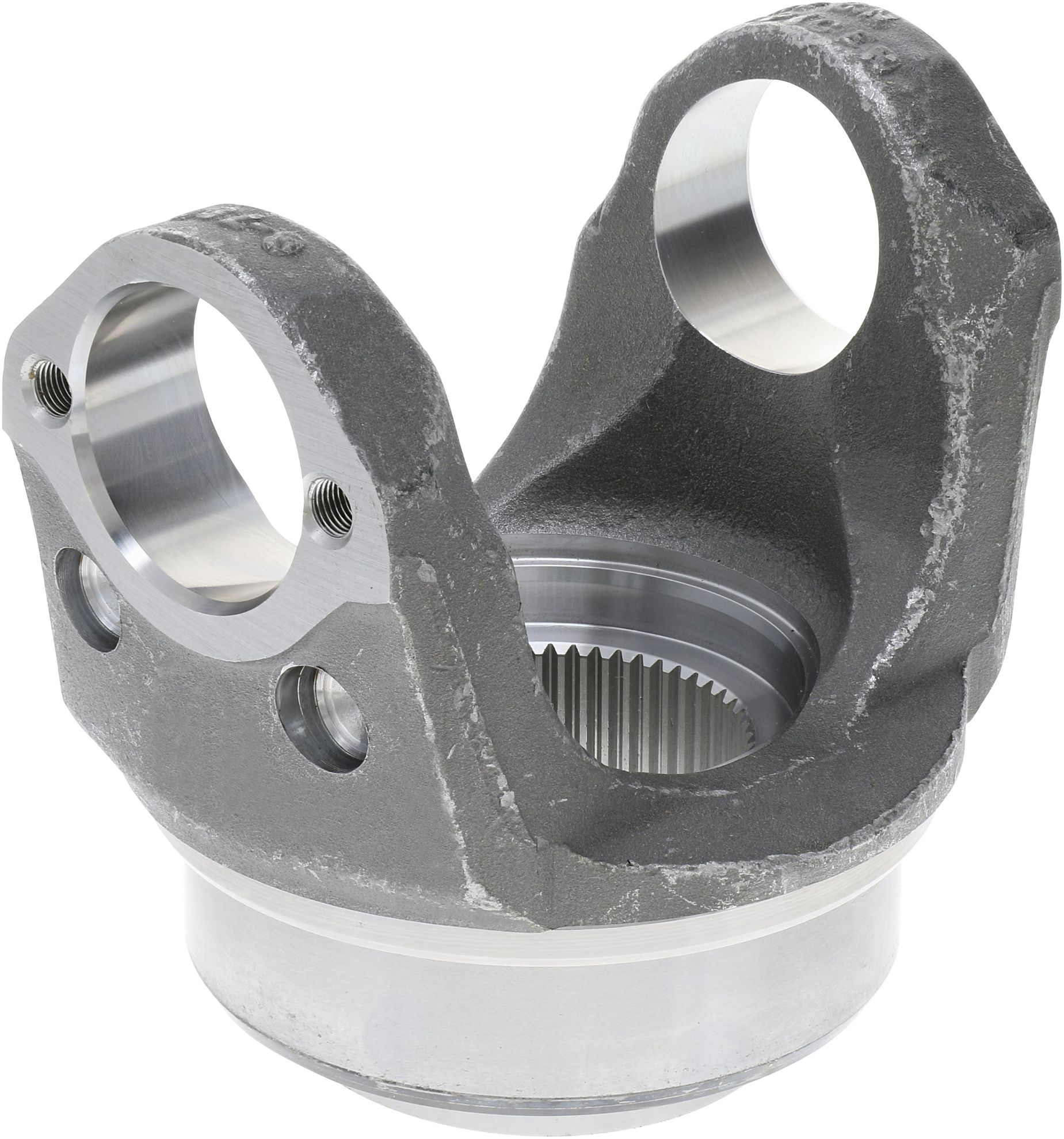

Spicer Automatic Transmission Yoke - 6-4-10111

Name: Spicer Automatic Transmission Yoke - 6-4-10111
SKU: 6-4-10111
Availability: InStock

Automatic Transmission End Yoke - 1710 Series; Full Round

Manufacturer: Spicer

Manufacturer part number: 6-4-10111

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Material	Steel
Spline Count	55
Type	Splined Hole
Hub Diameter R	4.725
Includes Slinger/Plug	No
Involute Spline	Y
Length Thru Hole Q	2.047
Outside Yoke Dimension In.(E)	6.094
Yoke Bearing Dimension (In) D	1.938
Yoke Style	BP
Major Diameter	2.795
C/L To End Hub S	5.000
Joint Angle #1	24
Prop 65	NO
Note	Allison No. 29540174
C-Bore Depth	0.146
C-Bore Diameter	2.856
Country of Origin	MX
Condition	New
