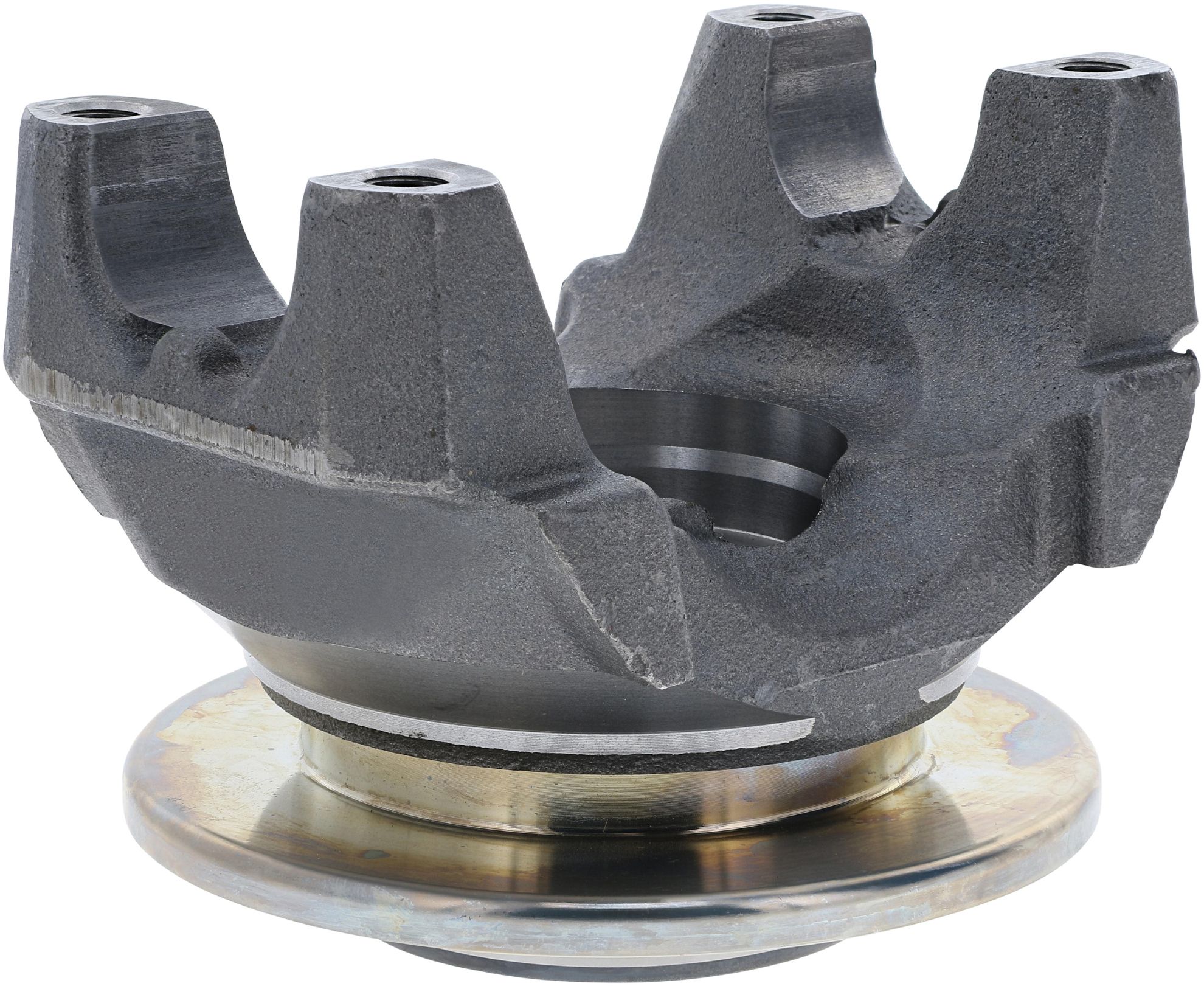

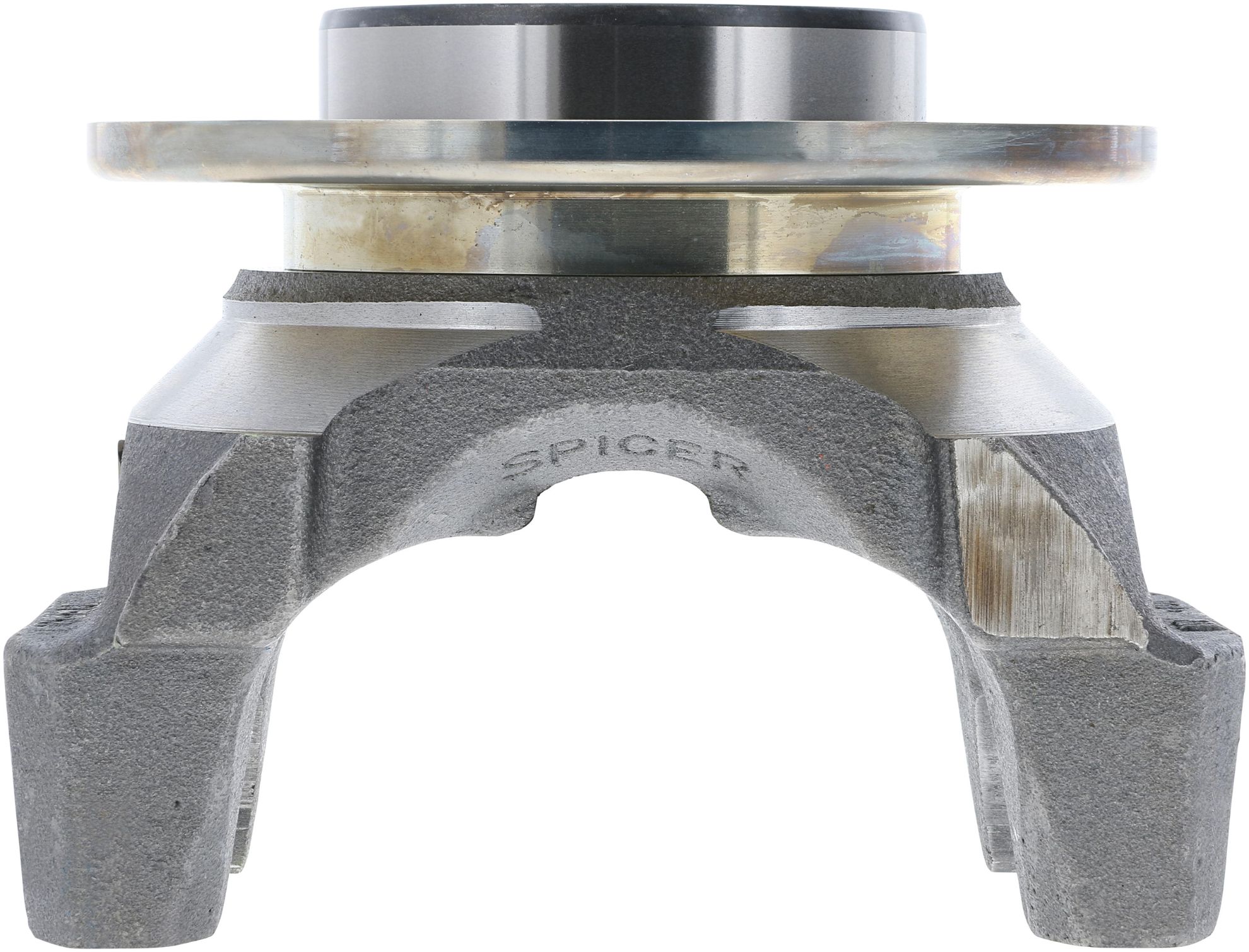

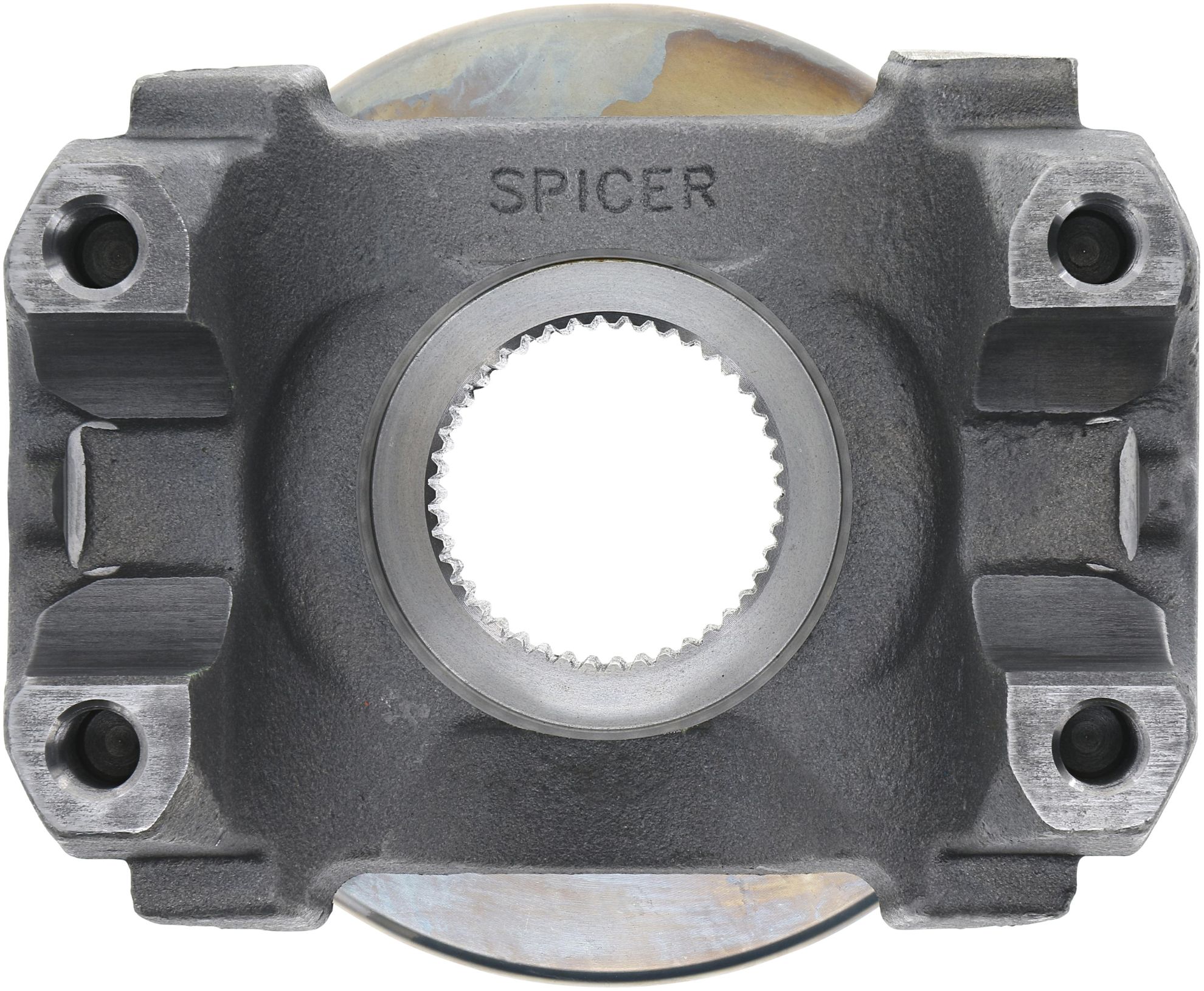

Spicer Automatic Transmission Yoke - 6-4-10271-1X

Name: Spicer Automatic Transmission Yoke - 6-4-10271-1X
SKU: 6-4-10271-1X
Availability: InStock

Automatic Transmission End Yoke - 1710 Series; Half Round

Manufacturer: Spicer

Manufacturer part number: 6-4-10271-1X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Application: ALLISON - 0000 MD Series Electric

Products specifications

Attribute name	Attribute value
Series	1710
Material	Steel
Spline Count	43
Type	Splined Hole
Hub Diameter R	3.540
Includes Slinger/Plug	233081
Involute Spline	Y
Length Thru Hole Q	2.047
Outside Yoke Dimension In.(E)	6.190
Yoke Bearing Dimension (In) D	1.938
Yoke Style	HR
Major Diameter	2.178
Note	Allison No. 29541235
C/L To End Hub S	4.860
C-Bore Depth	0.157
C-Bore Diameter	2.320
Joint Angle #1	20
Prop 65	NO
Country of Origin	MX
Condition	New
