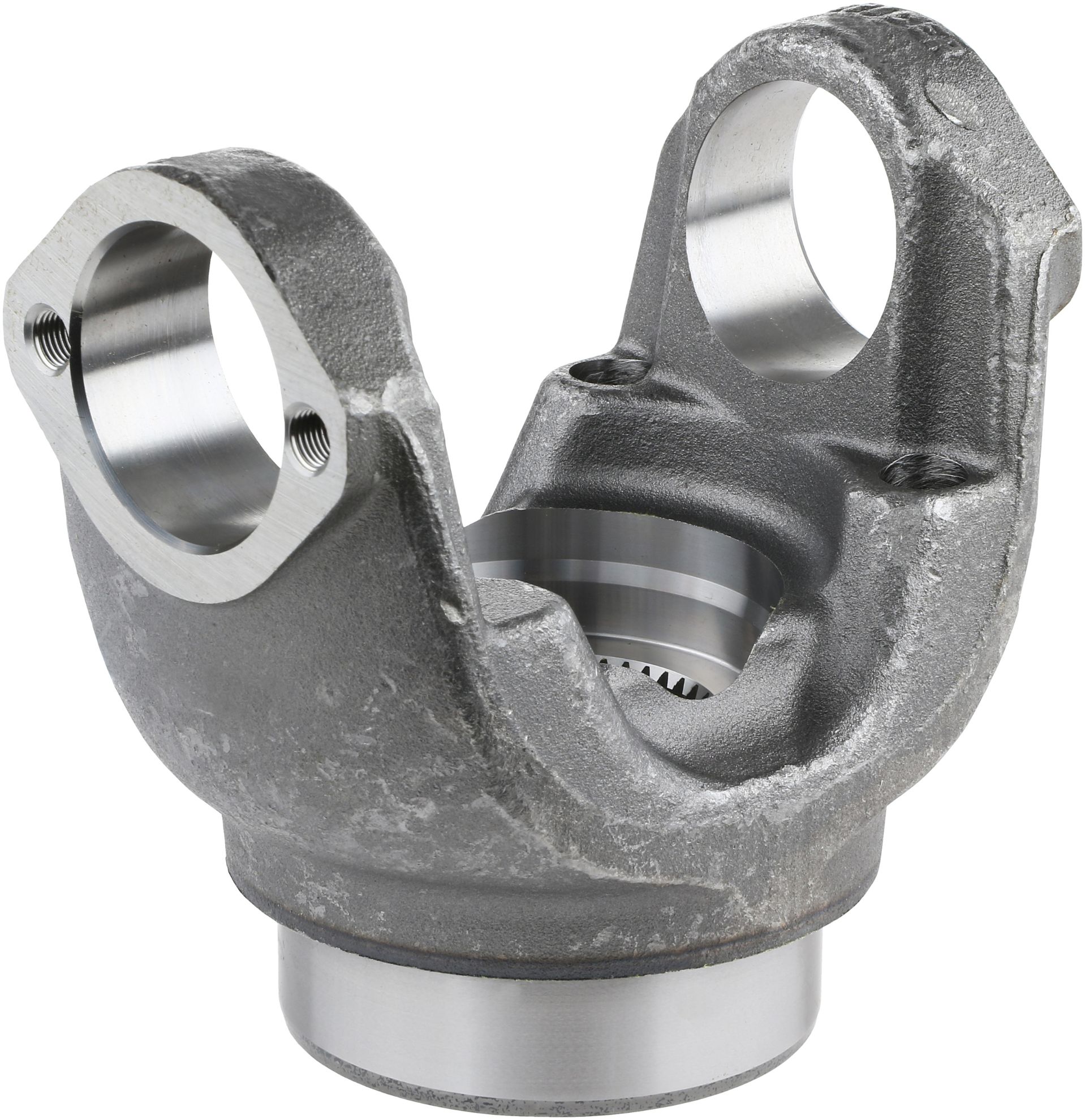

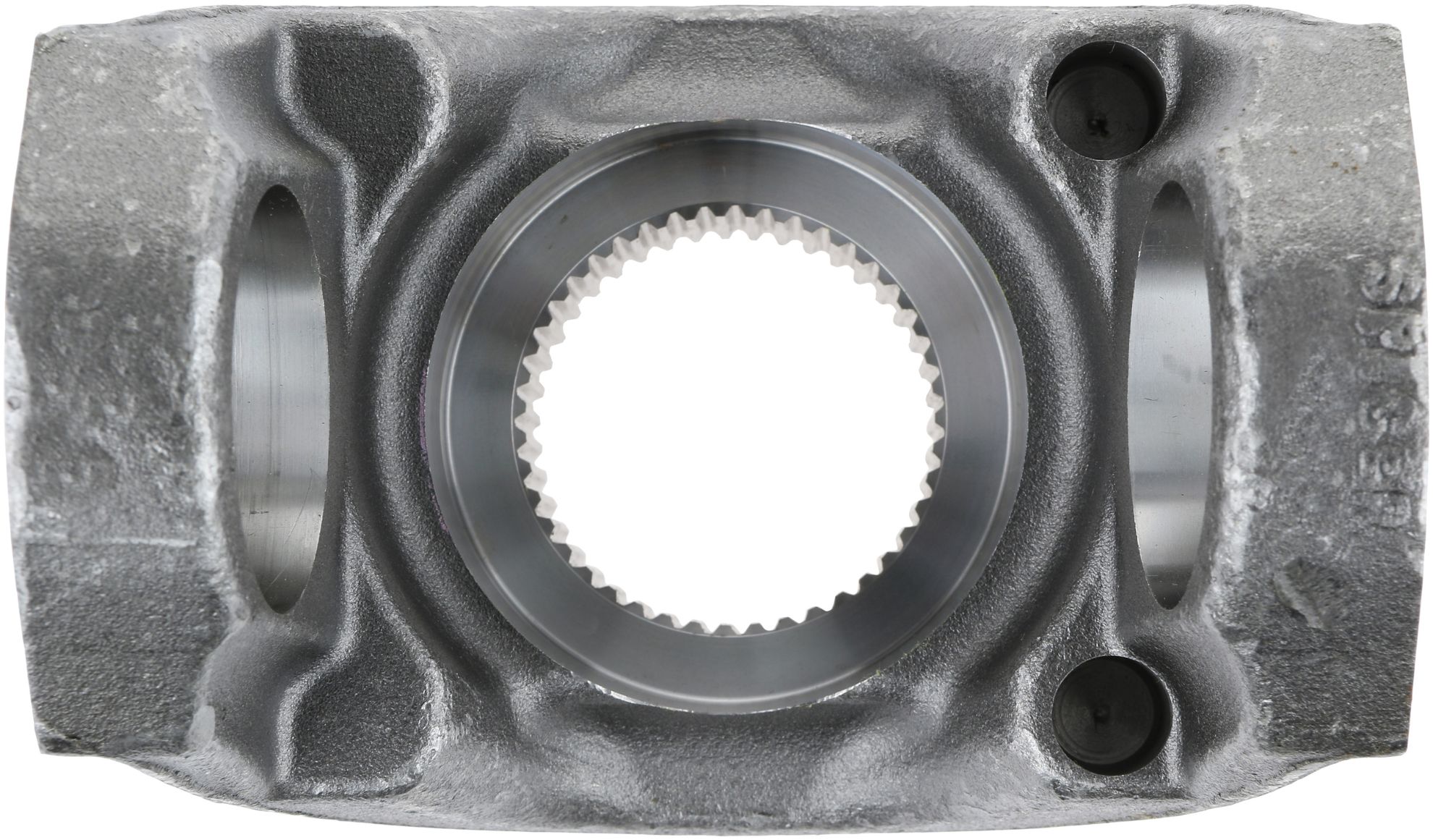

Spicer Automatic Transmission Yoke - 6-4-9221

Name: Spicer Automatic Transmission Yoke - 6-4-9221
SKU: 6-4-9221
Availability: InStock

AUTOMATIC TRANSMISSION YOKE; OUTPUT END YOKE

Manufacturer: Spicer

Manufacturer part number: 6-4-9221

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Joint Angle #1	22
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Series	1710
Material	Steel
Spline Count	43
Type	Splined Hole
Assembly	N
Hub Diameter R	3.539
Length Thru Hole Q	2.0470
Yoke Bearing Dimension (In) D	1.938
Yoke Style	SR
Major Diameter	2.1780
Prop 65	Yes
Outside Yoke Dimension In.(E)	6.0920
Note	Detroit Diesel Allison, transmission o/p with or without retarder
C-Bore Depth	0.157
C-Bore Diameter	2.3200
Involute Spline	Yes
C/L To End Hub S	4.8600
Country of Origin	MX
Condition	New
