Spicer Drive Axle Shaft - 10015186

Name: Spicer Drive Axle Shaft - 10015186
SKU: 10015186
Availability: OutOfStock

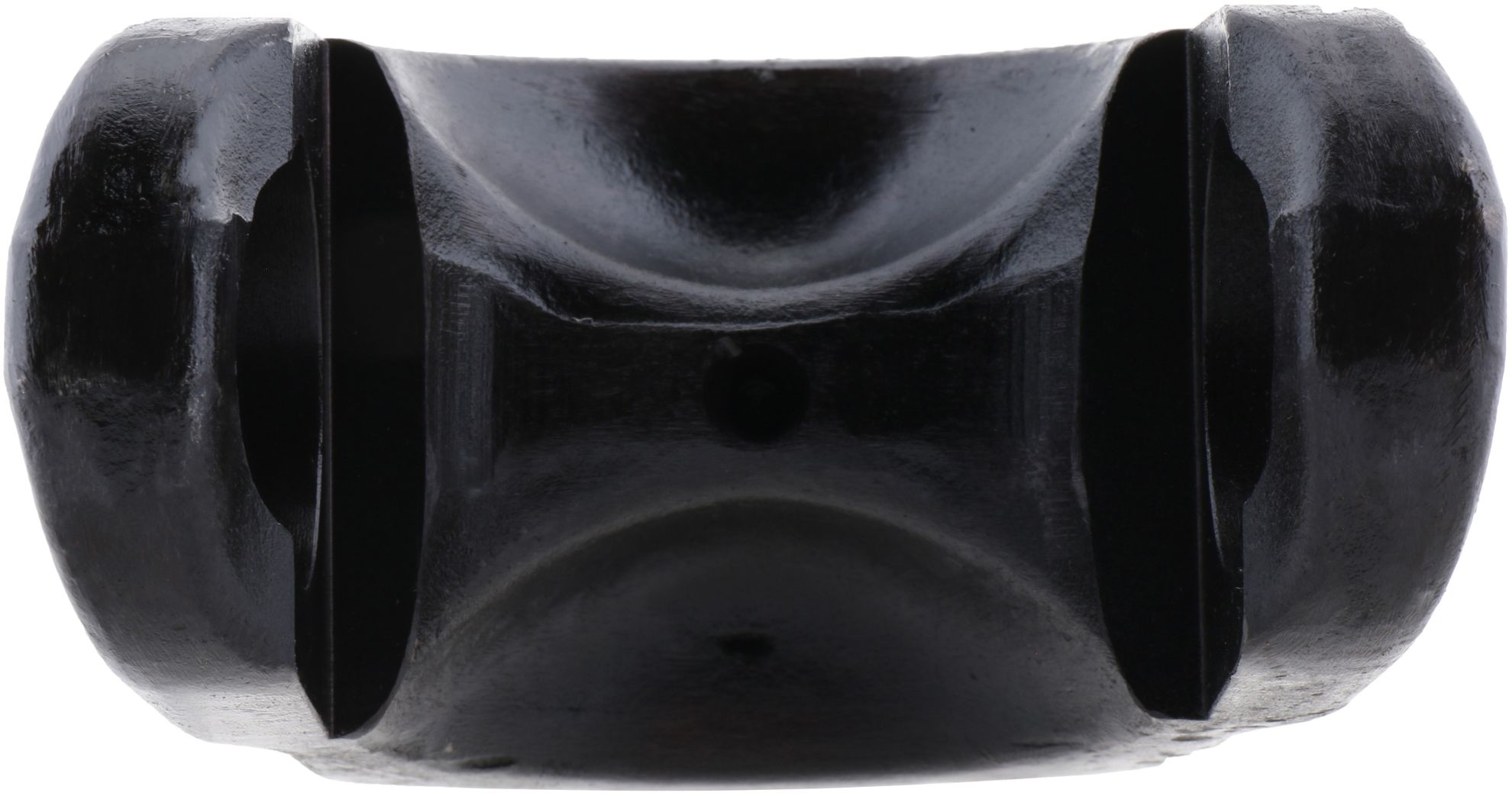

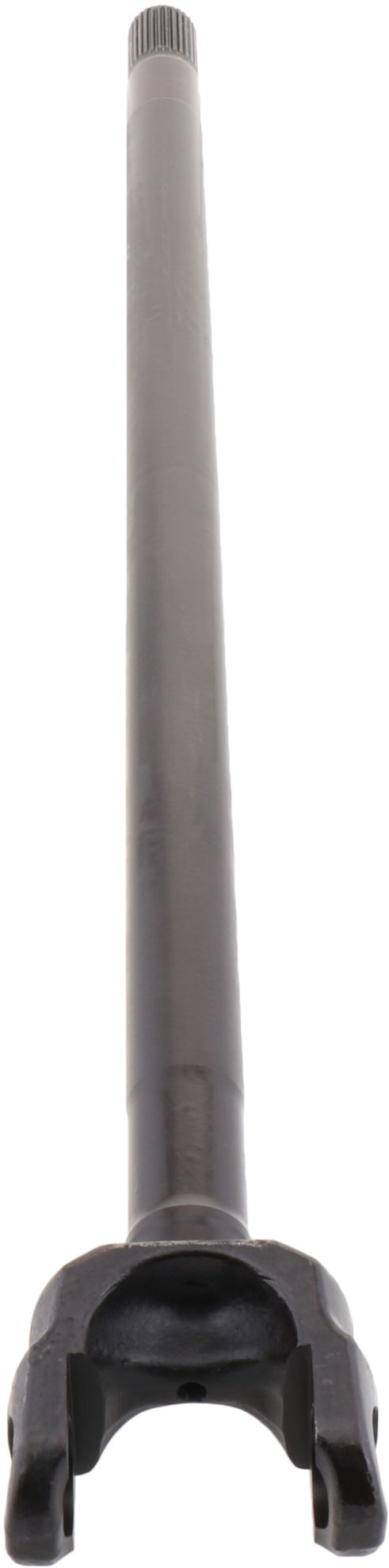

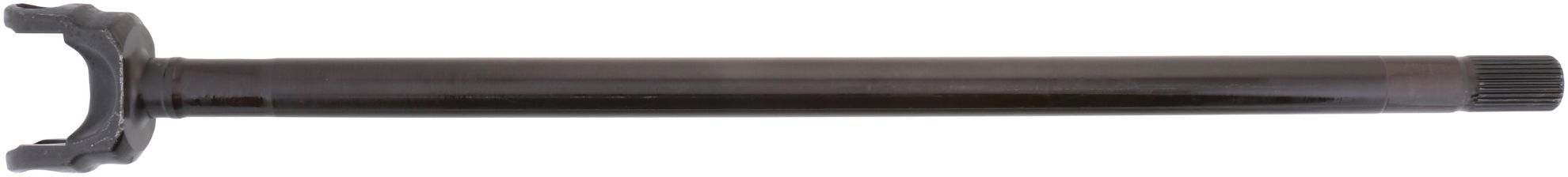

Chromoly Axle Shaft-Jeep Wrangler JK-DANA 44 (1350 Series)-Front Right Inner

Manufacturer: Spicer

Manufacturer part number: 10015186

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engineered to deliver added strength and durability, Spicer chromoly axle shafts meet the exacting demands of off-road. Utilizing SAE-4340 nickel chromoly provides additional toughness, high-temp strength and abrasion resistance, and the ability to maintain a specified hardenability. Hit the trail with the confidence that comes from knowing you are backed by the global leaders in driveline products.

Products specifications

Attribute name	Attribute value
Axle Model	Dana 44
Material	Nickel Chromoly
Spline Count	30 Inboard
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Prop 65	Yes
Universal Joint Series	1350
ABS/Non-ABS	Non-ABS
Length (in.)	33.570
Location	Front Right Inner
Axle Cover Bolt Hole Qty	10
Includes Tone	N
Cover Bolt Quantity	10
Axle Type	Inner
Includes Universal Joint	N
Inner Shaft Length (In)	33.600
Inner Shaft Spline	30
Quantity	1
ABS Sensor Ring Included	No
ABS Sensor Ring Installed	N
Axle Shaft Included	Y
Bearing Included	N
Full-Floating Or Semi-Floating	Semi-Floating
Inner Axle Included	Y
Outer Axle Included	N
Retainer Ring Included	N
Seal Included	N
Seal Kit Included	N
U-Joint Included	N
Wheel Bearing Included	N
Wheel Bolt Prep Kit Included	N
Wheel Nuts Included	N
Wheel Studs Included	N
Length [mm]	852.678
Country of Origin	IN
Condition	New
