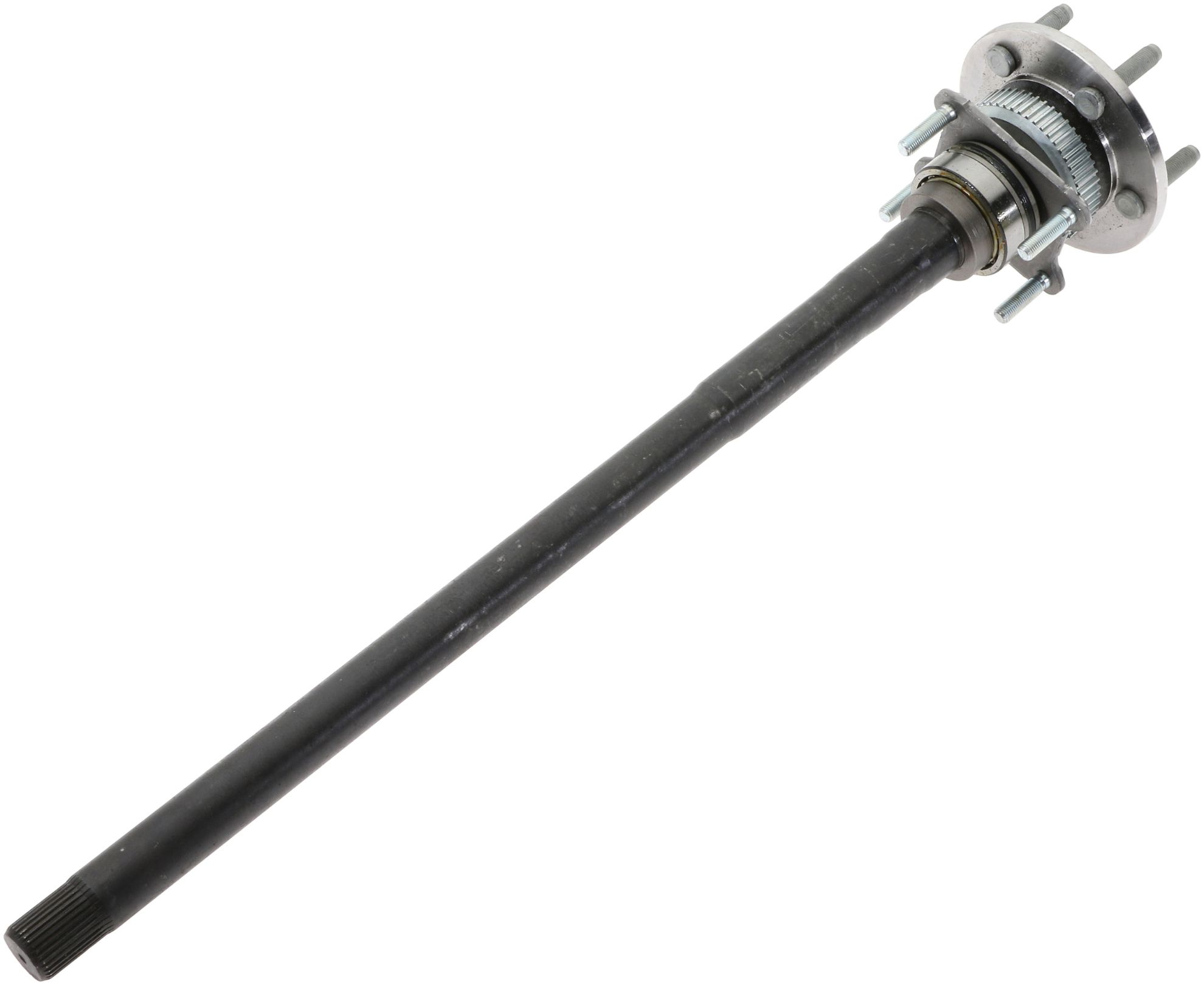

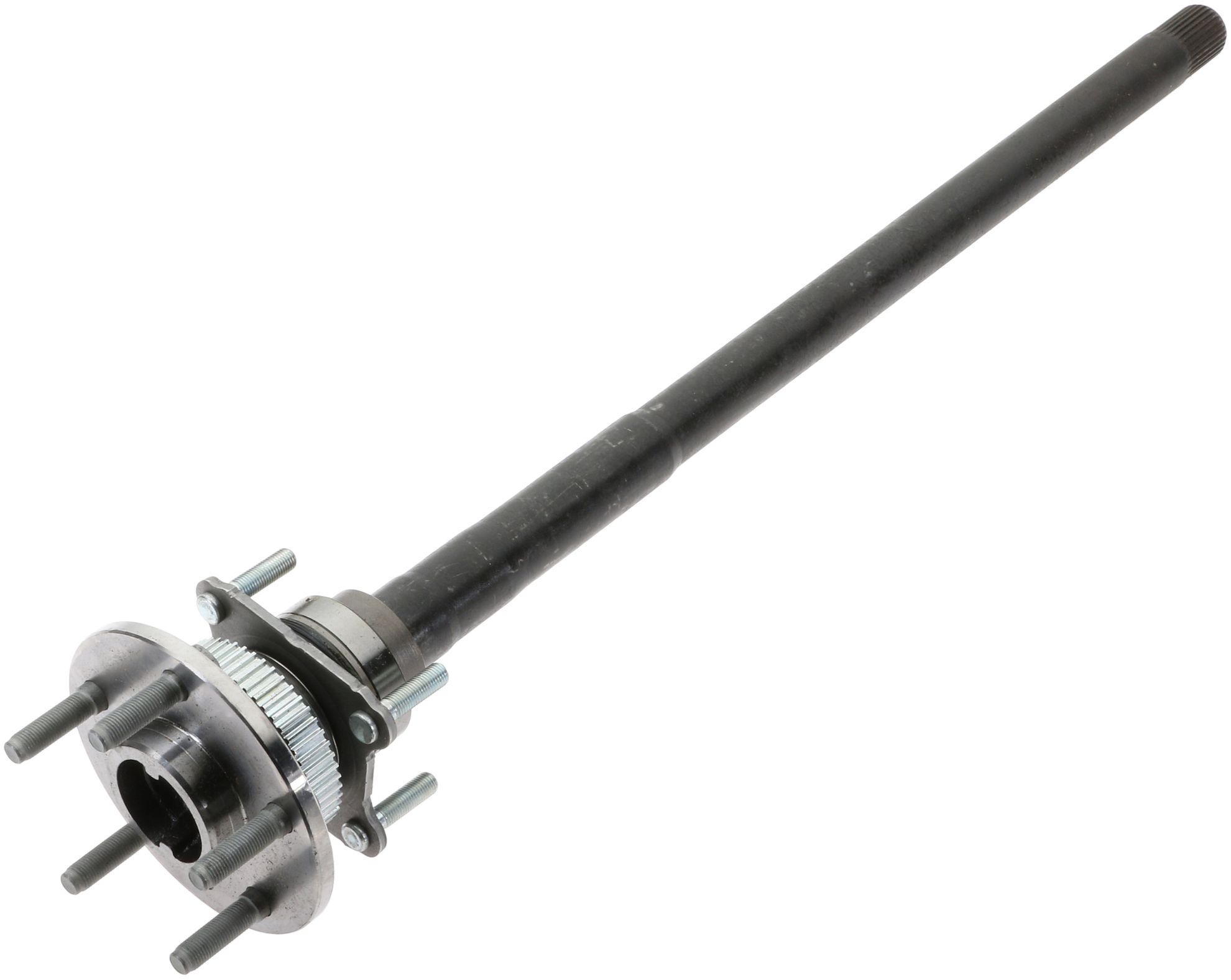

Spicer Drive Axle Shaft - 10043169

Name: Spicer Drive Axle Shaft - 10043169
SKU: 10043169
Availability: OutOfStock

Chromoly Axle Shaft-Wrangler JL and Gladiator JT-DANA 44 AdvanTEK Wide Track ELD

Manufacturer: Spicer

Manufacturer part number: 10043169

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engineered to deliver added strength and durability, Spicer Chromoly axle shafts meet the exacting demands of off-road. Utilizing SAE-4340 nickel chromoly provides additional toughness, high-temp strength and abrasion resistance, and the ability to maintain a specified hardenability. Hit the trail with the confidence that comes from knowing you are backed by the global leaders in driveline products.

Products specifications

Attribute name	Attribute value
Axle Model	DANA 44 AdvanTEK
Material	Nickel Chromoly
Spline Count	32
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Prop 65	Yes
ABS/Non-ABS	ABS
Length (in.)	33.960
Location	Rear
Includes Tone	Y
Cover Bolt Quantity	12
Quantity	1
ABS Sensor Ring Included	Yes
ABS Sensor Ring Installed	Y
Axle Shaft Included	Y
Bearing Included	Y
Full-Floating Or Semi-Floating	Semi-Floating
Number Of Wheel Lugs	5
Retainer Ring Included	Y
Seal Included	Y
Wheel Bearing Included	Y
Wheel Nuts Included	N
Wheel Studs Included	Y
Installation Kit Included?	N
Brake Pilot Diameter (In)	0.610
Wheel Stud Hole Diameter (In)	5 X 5.00
Country of Origin	US
Condition	New
