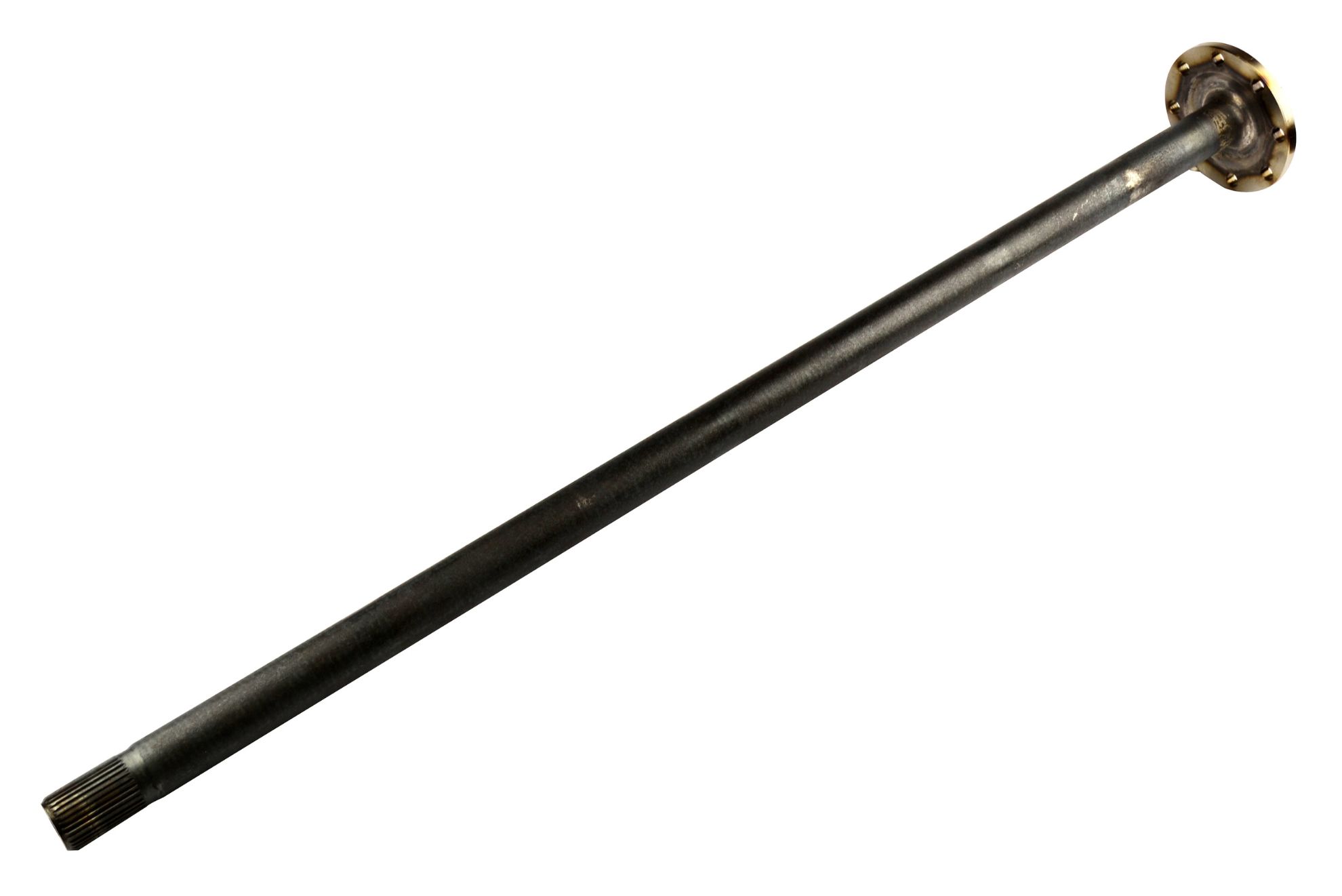

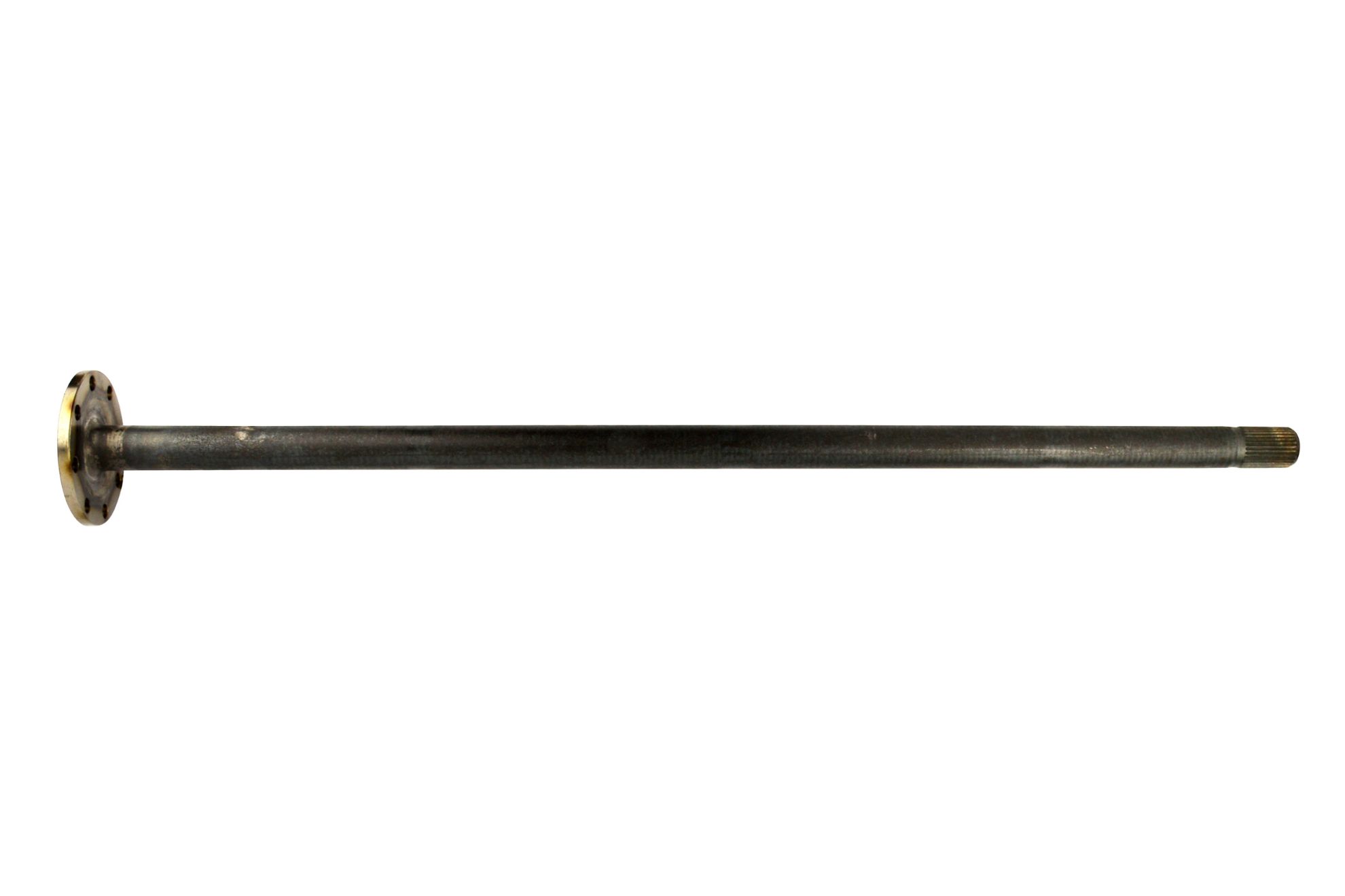

Spicer Drive Axle Shaft - 43811-4

Name: Spicer Drive Axle Shaft - 43811-4
SKU: 43811-4
Availability: OutOfStock

AXLE SHAFT - DANA 70

Manufacturer: Spicer

Manufacturer part number: 43811-4

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Genuine Spicer light vehicle axle products are manufactured to the same high standards as original equipment (OE) parts because they are OE parts. That means when an automotive axle part is replaced with a genuine Spicer part, you are getting the same performance and reliability you have come to expect. And because Dana is constantly revolutionizing the technology behind its Dana axles and Spicer products, the replacement car axle or component you purchase today may even exceed the standards set for the original equipment part that you are replacing.

Products specifications

Attribute name	Attribute value
Axle Model	Dana 70
Material	Steel
Spline Count	32 Inboard
Prop 65	NO
Wheel Stud Hole Diameter (In)	0.450
Cover Bolt Quantity	10
Full-Floating Or Semi-Floating	Full-Floating
Inner Axle Included	Y
Number Of Wheel Lugs	8
Outer Axle Included	Y
Retainer Ring Included	N
Seal Included	N
Seal Kit Included	N
U-Joint Included	N
Bearing Included	N
Axle Shaft Included	Y
ABS Sensor Ring Installed	N
ABS Sensor Ring Included	No
Quantity	1
Axle Type	Complete Assembly
Wheel Bearing Included	N
Wheel Bolt Prep Kit Included	N
Wheel Nuts Included	N
Wheel Studs Included	N
Axle Length (Mm)	949.960
ABS/Non-ABS	Non-ABS
Length (in.)	37.400
Location	RH
Axle Spline Count	32 Inboard
Axle Cover Bolt Hole Qty	10
Axle Length (In)	37.400
Bearing Pilot Diameter (In)	1.375
Bolt Pattern	8 X 3.96
Brake Pilot Diameter (In)	3.015
Includes Tone	N
Length [mm]	949.960
Country of Origin	MX
Condition	New
