Spicer Drive Axle Shaft Universal Joint - SPL30-7166XC

Name: Spicer Drive Axle Shaft Universal Joint - SPL30-7166XC
SKU: SPL30-7166XC
Availability: InStock

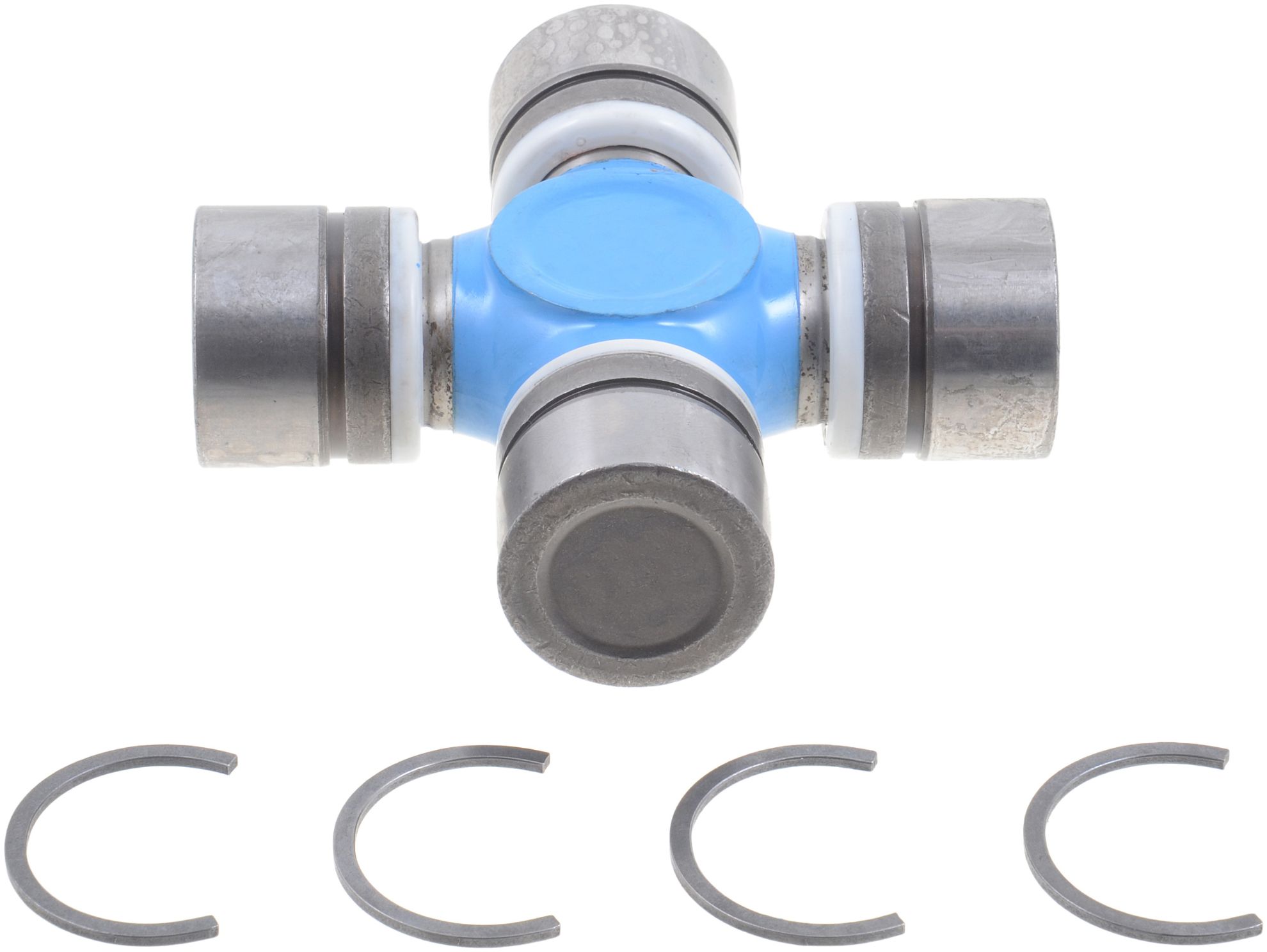

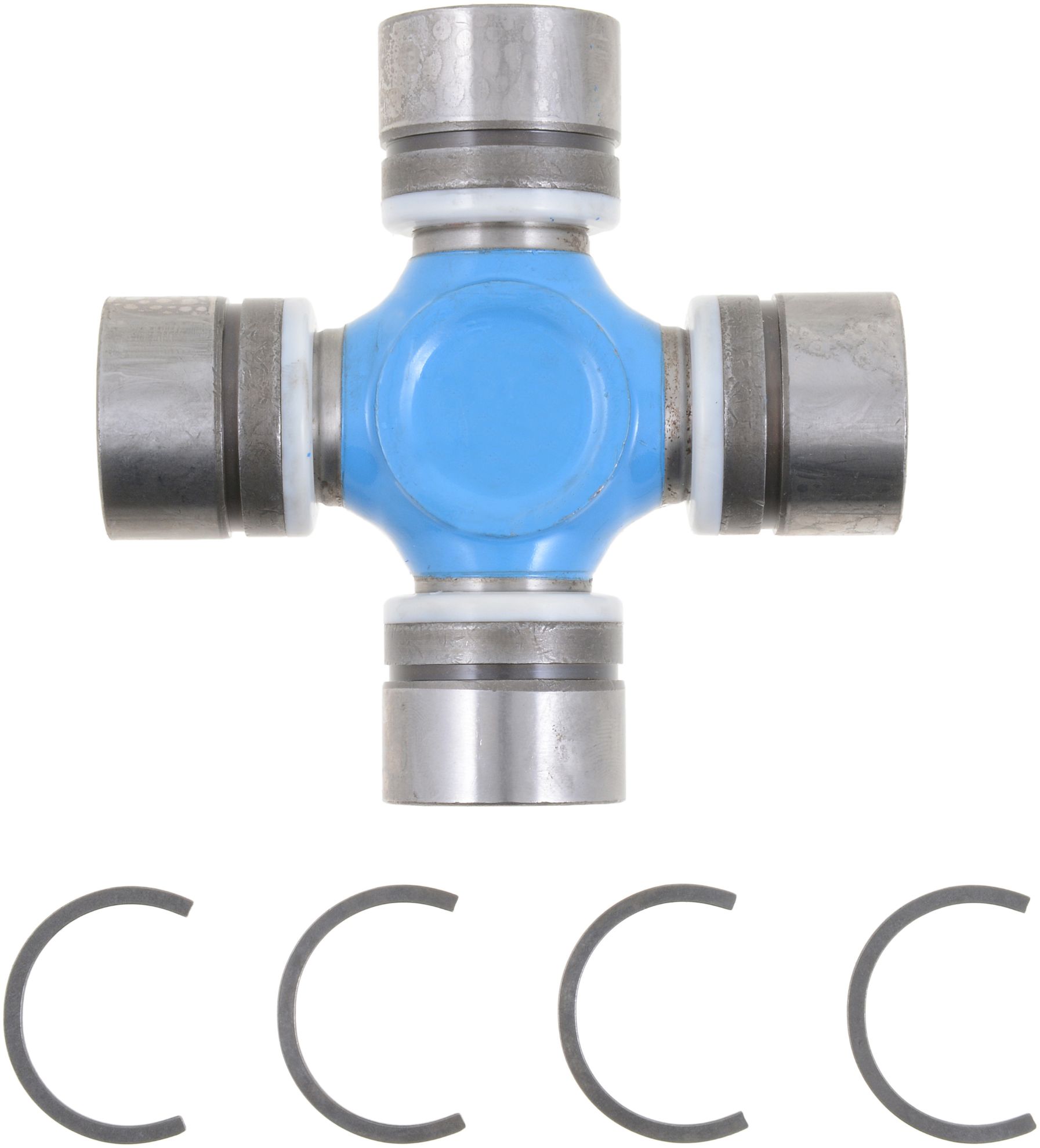

Axle Shaft U-Joint; Non-Greaseable; Blue Coated U-Joint Kit SPL30/1350 ISR WJ

Manufacturer: Spicer

Manufacturer part number: SPL30-7166XC

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Made in the USA. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.188
OEM Mfg	Spicer
OEM Series	1350WJ
Type	ISR Style
Bearing Cap Diameter (2)	1.188
Bearing Cap Type	Round with ISR Groove
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Not Required
Pre-Greased	Yes
Seal Color/Finish	Blue
Greaseable	No
Bearing Cap Diameter A (mm)	30.175
Bearing Cap Diameter B (mm)	30.175
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Hardware Included	No
Length A (In)	2.406
Length A (mm)	61.112
Length B (In)	2.406
Length B (mm)	61.112
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Mounting Hardware Included	No
Prop 65	Yes
Distance Btw Snap Ring Grooves	2.406
Distance Btw Snap Ring Grooves (ISR) (2)	2.406
Country of Origin	US
Condition	New
Quantity per Application	2
