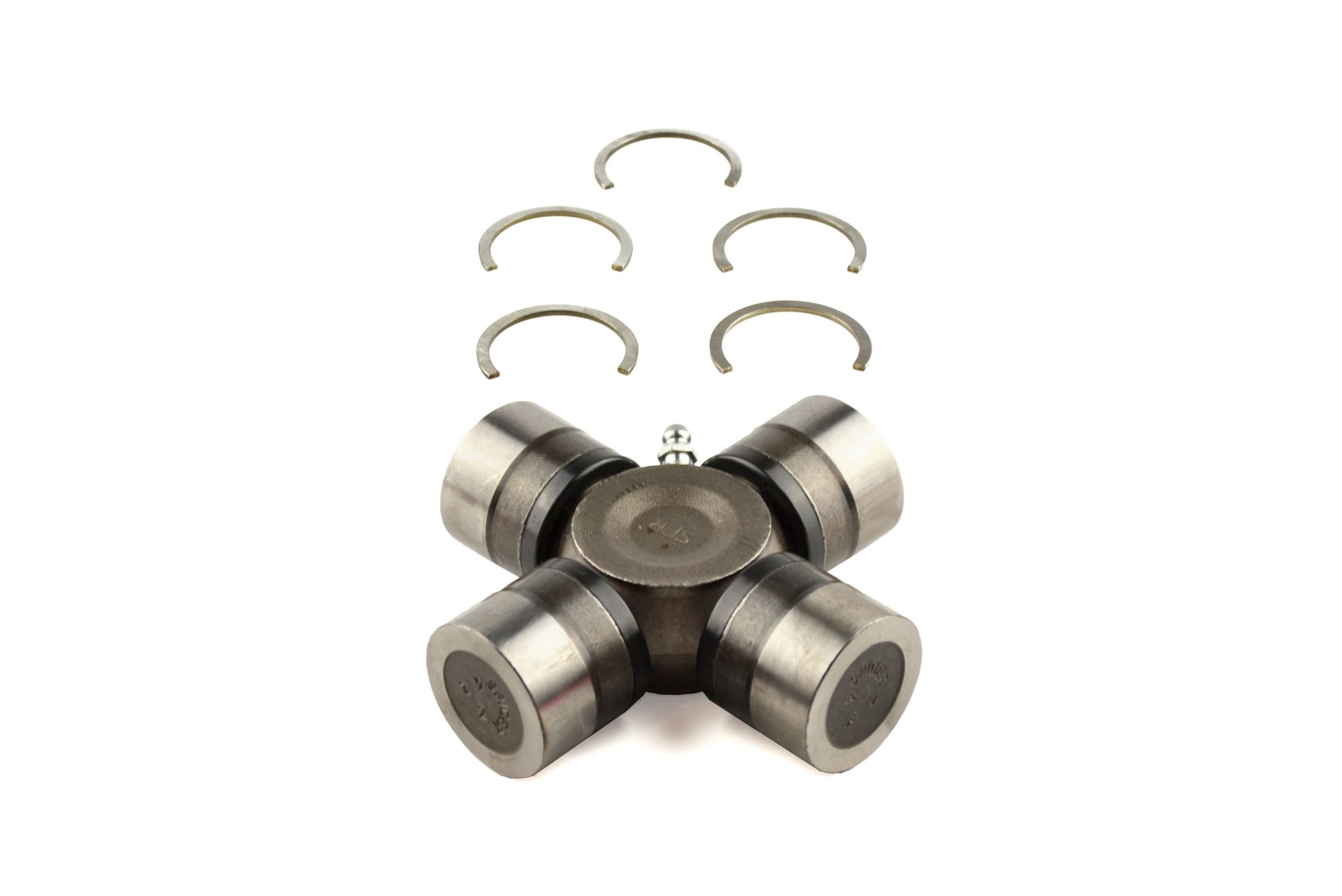

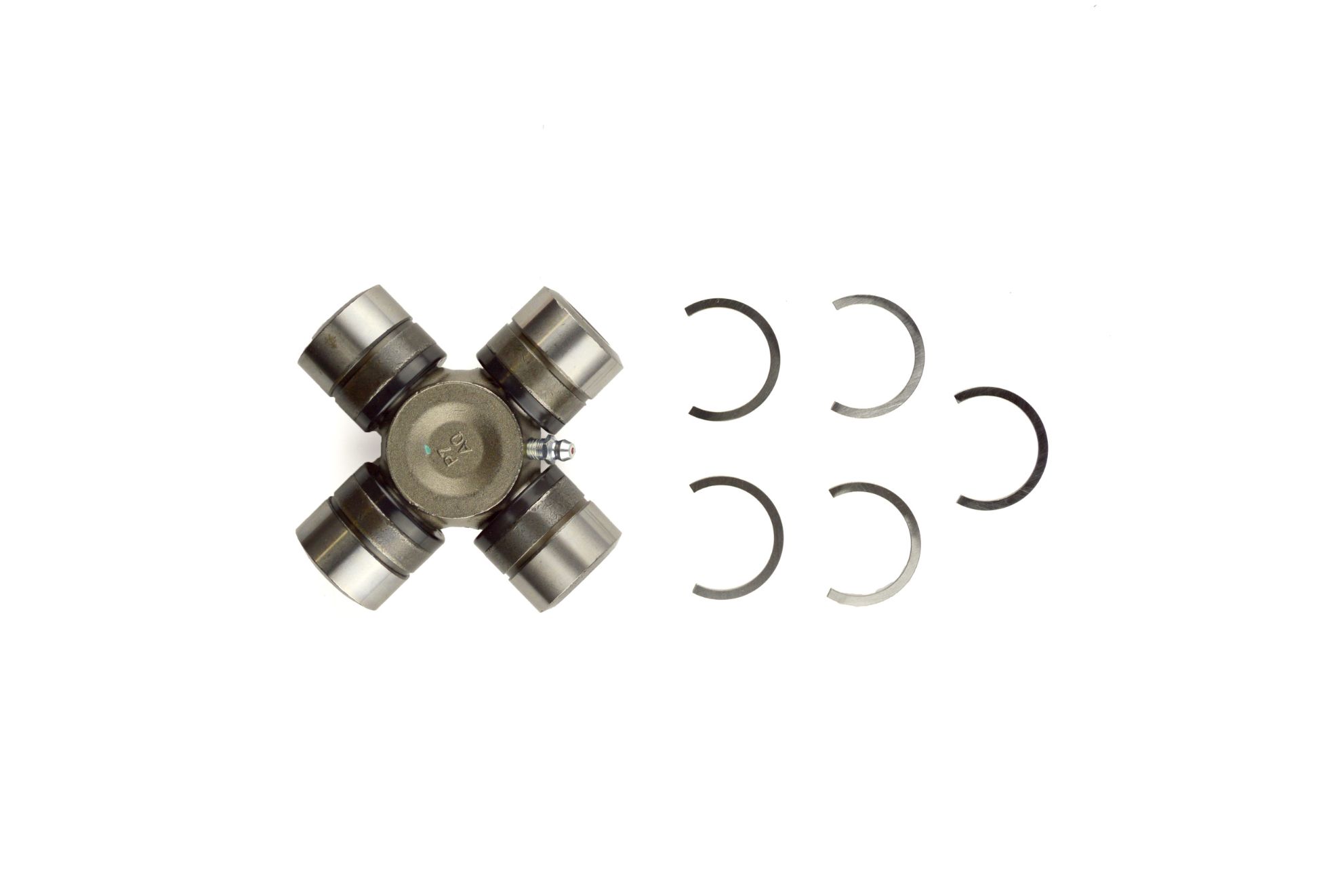

Spicer Drive Axle Shaft Universal Joint - SPL55-4X

Name: Spicer Drive Axle Shaft Universal Joint - SPL55-4X
SKU: SPL55-4X
Availability: InStock

Axle Shaft Universal Joint; Greaseable

Manufacturer: Spicer

Manufacturer part number: SPL55-4X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.375
OEM Mfg	Spicer
OEM Series	SPL55/1480WJ
Type	ISR Style
Bearing Cap Diameter (2)	1.375
Bearing Cap Type	Round with ISR Groove
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Yes
Pre-Greased	No
Bearing Cap Finish	Ground
Coating Type	None
Grease Fitting Location	Side of Cross
Grease Type	N.L.G.I. Grade 2
Model Number	Spicer 1480 WJ (SPL55)
Seal Color/Finish	Black
Seal Material	Rubber
Greaseable	Yes
Bearing Cap Diameter A (mm)	34.925
Bearing Cap Diameter B (mm)	34.925
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Hardware Included	No
Length A (In)	3.000
Length A (mm)	76.200
Length B (In)	3.000
Length B (mm)	76.200
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Mounting Hardware Included	No
Prop 65	Yes
Distance Btw Snap Ring Grooves	3.000
Distance Btw Snap Ring Grooves (ISR) (2)	3.000
Country of Origin	US
Condition	New
Quantity per Application	2
