Spicer Drive Shaft Companion Flange - 2-1-293

Name: Spicer Drive Shaft Companion Flange - 2-1-293
SKU: 2-1-293
Availability: InStock

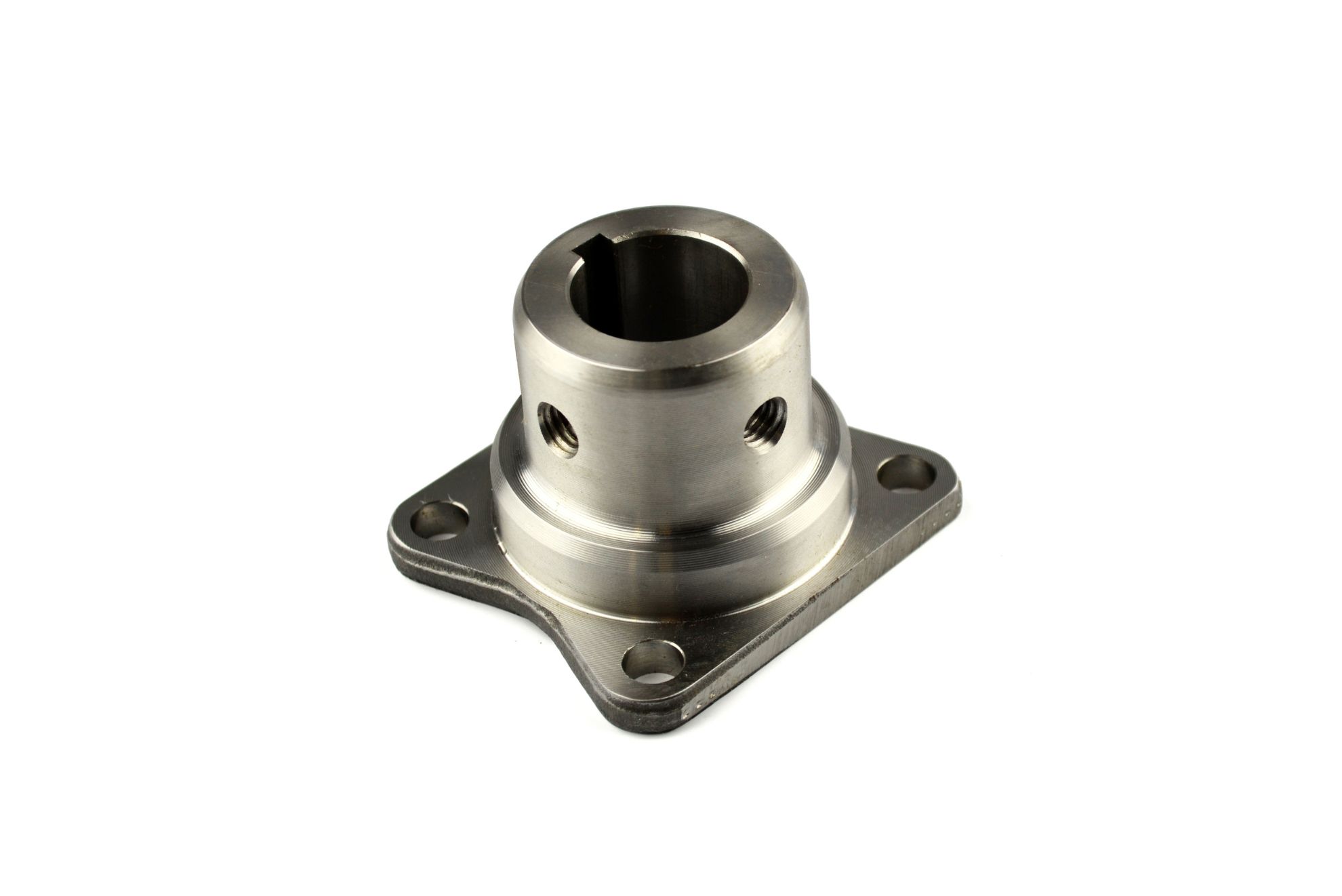

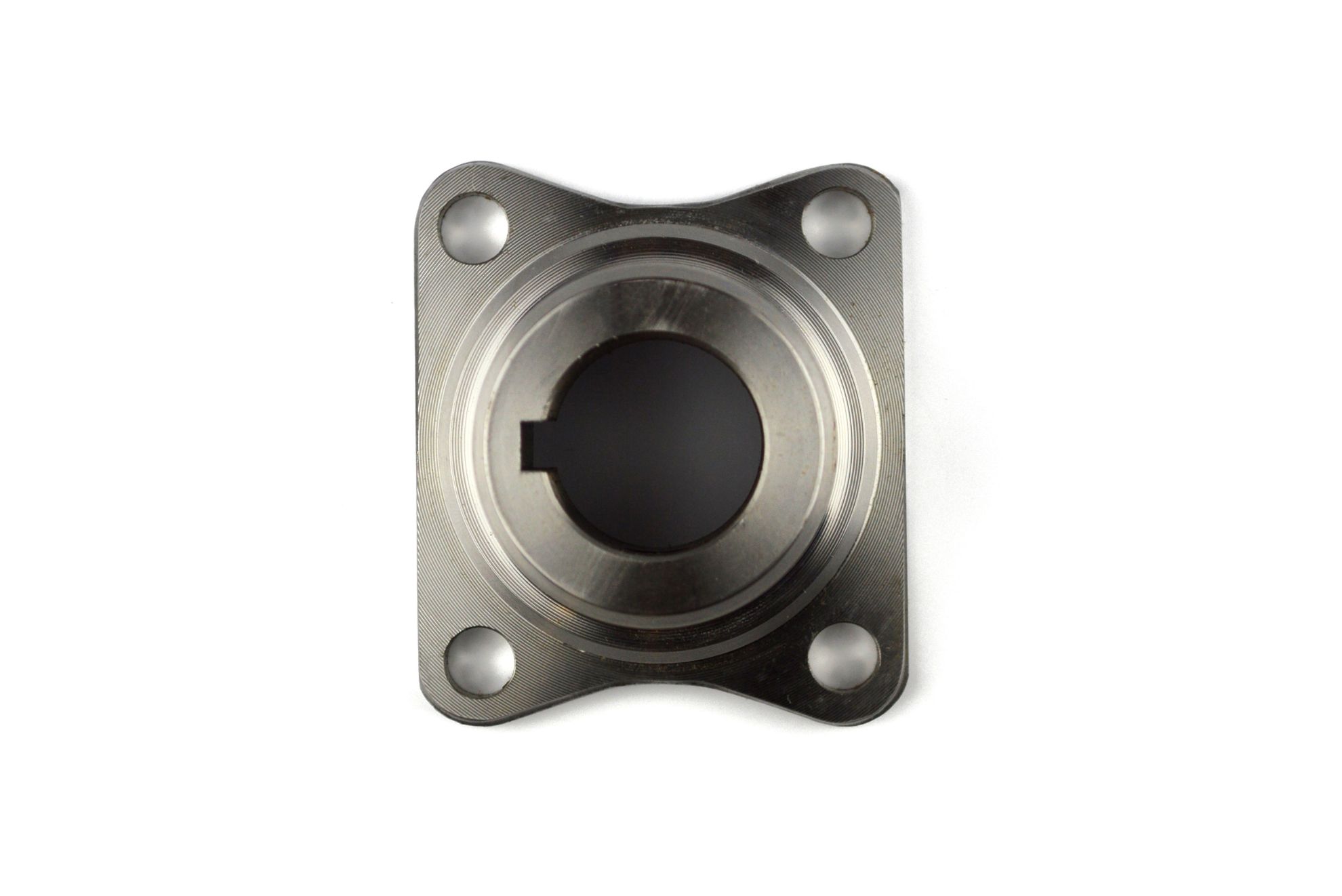

Drive Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 2-1-293

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Flange Type	Rectangular
Prop 65	NO
Number Of Holes	4
Pilot Diameter (C) In.	2.375 - FEMALE
Bolt Circle Diameter (B) In.	3.125
Actual Hole Diameter (Max)	1.1255
Actual Hole Diameter (Min)	1.1245
Actual Keyway Width (Max)	0.253
Actual Keyway Width (Min)	0.251
Bore Diameter (D) In.	1.125
Circ Flnge Face To End Of Hub	2.062
Flange Width Diameter (A) In.	3.875
Hub Diameter (E) In.	1.875
Key Width (K) In.	0.250
Rect Flnge Face End Of Hub (G)	2.062
Rect Lngth Thru Hole (F)	1.500
Set Loc. ( Hub & Keyway At 12)	6&9
Set Screw Hole Diameter (In)	0.375
Country of Origin	US
Condition	New
