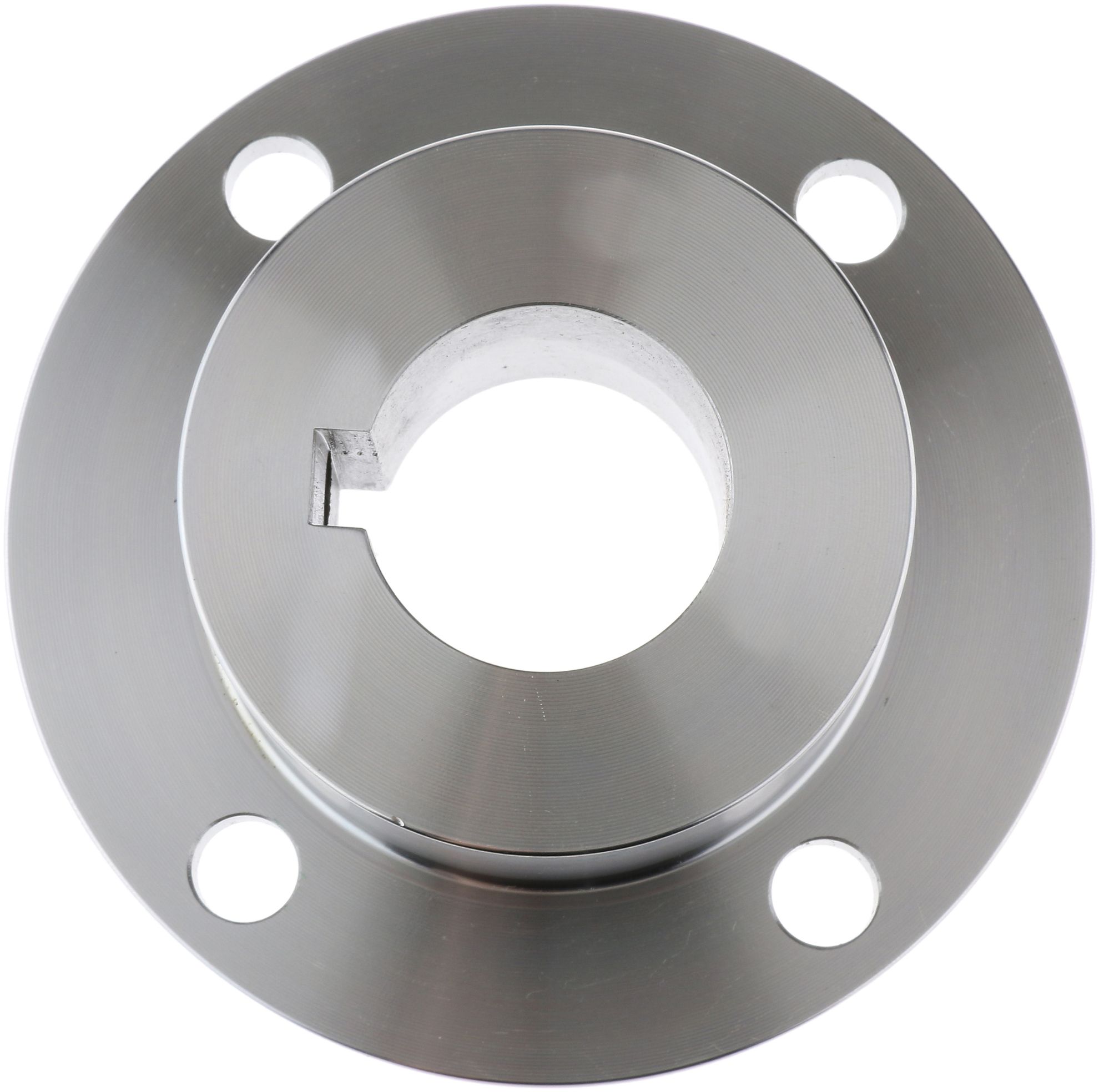

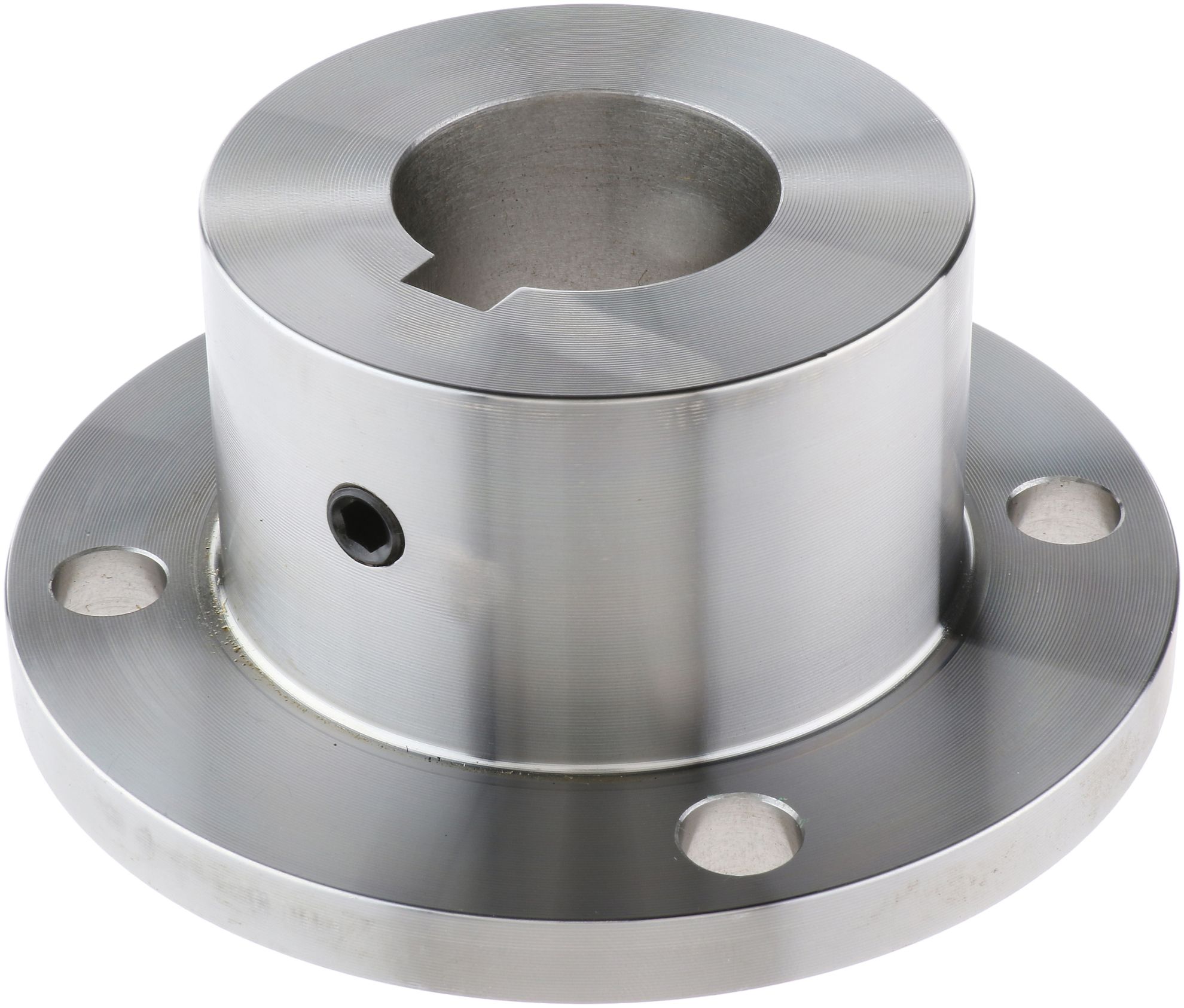

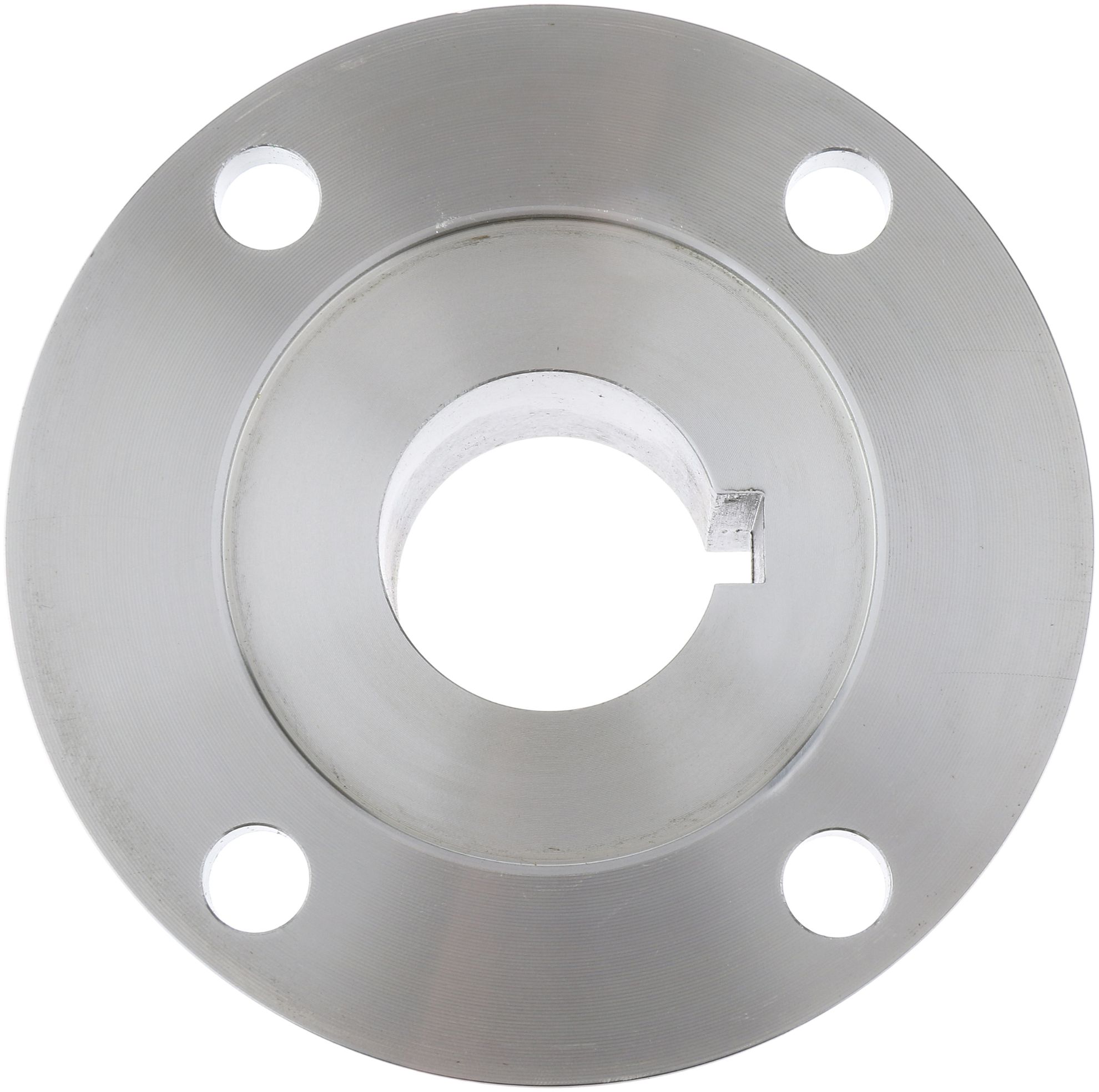

Spicer Drive Shaft Companion Flange - 3-1-1013-7

Name: Spicer Drive Shaft Companion Flange - 3-1-1013-7
SKU: 3-1-1013-7
Availability: InStock

Drive Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 3-1-1013-7

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1350
Material	Steel
Flange Type	Circular
Prop 65	NO
Number Of Holes	4
Pilot Diameter (C) In.	2.750 - FEMALE
Bolt Circle Diameter (B) In.	3.750
Actual Hole Diameter (Max)	1.439
Actual Hole Diameter (Min)	1.438
Bore Diameter (D) In.	1.438
Circ Flnge Face To End Of Hub	2.000
Flange Width Diameter (A) In.	4.56
Hub Diameter (E) In.	2.875
Key Width (K) In.	0.375
Set Screw Hole Diameter (In)	0.375
Bolt Hole Diameter (In)	.438 - DRILLED
Country of Origin	US
Condition	New
