Spicer Drive Shaft Companion Flange - 3-1-604

Name: Spicer Drive Shaft Companion Flange - 3-1-604
SKU: 3-1-604
Availability: OutOfStock

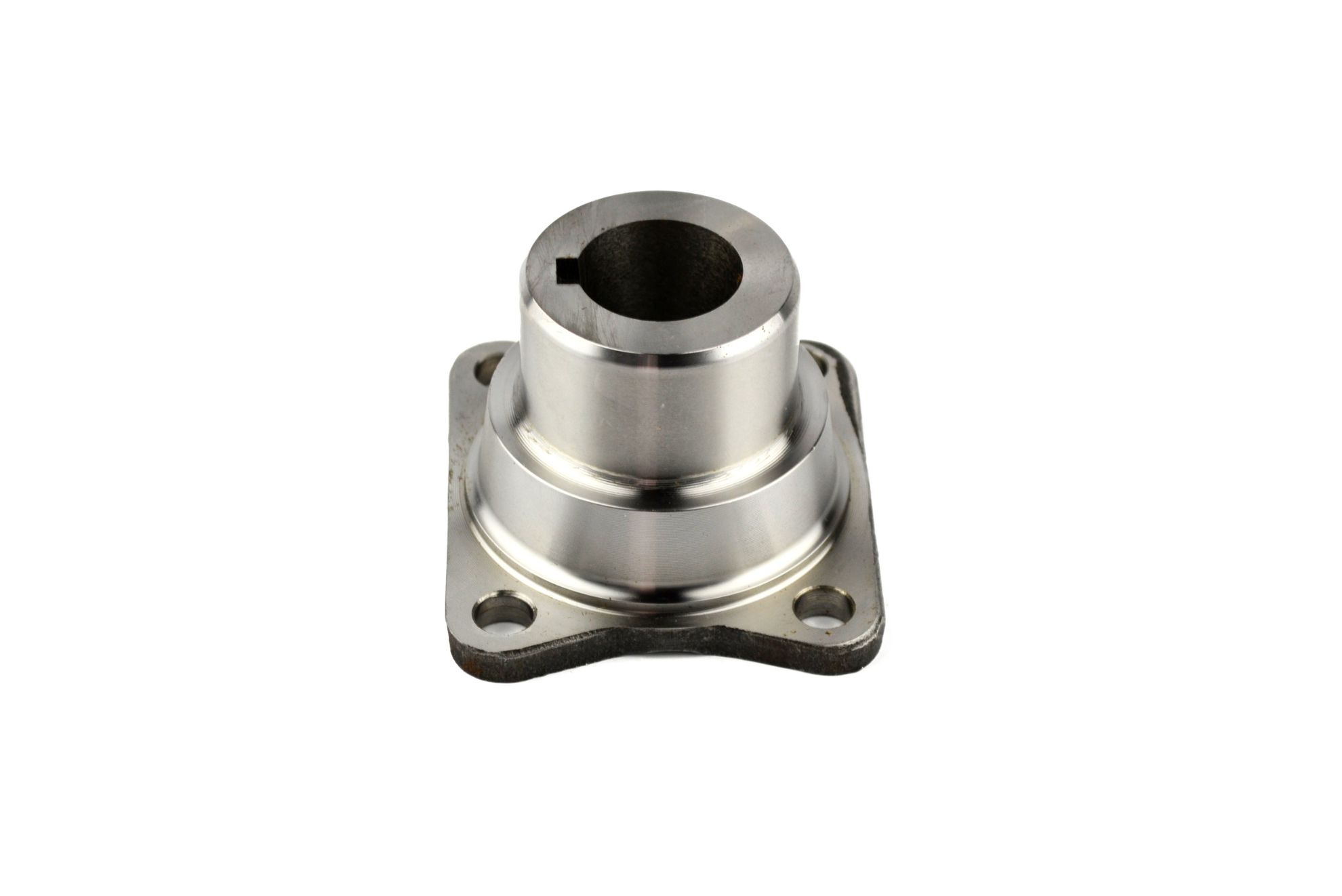

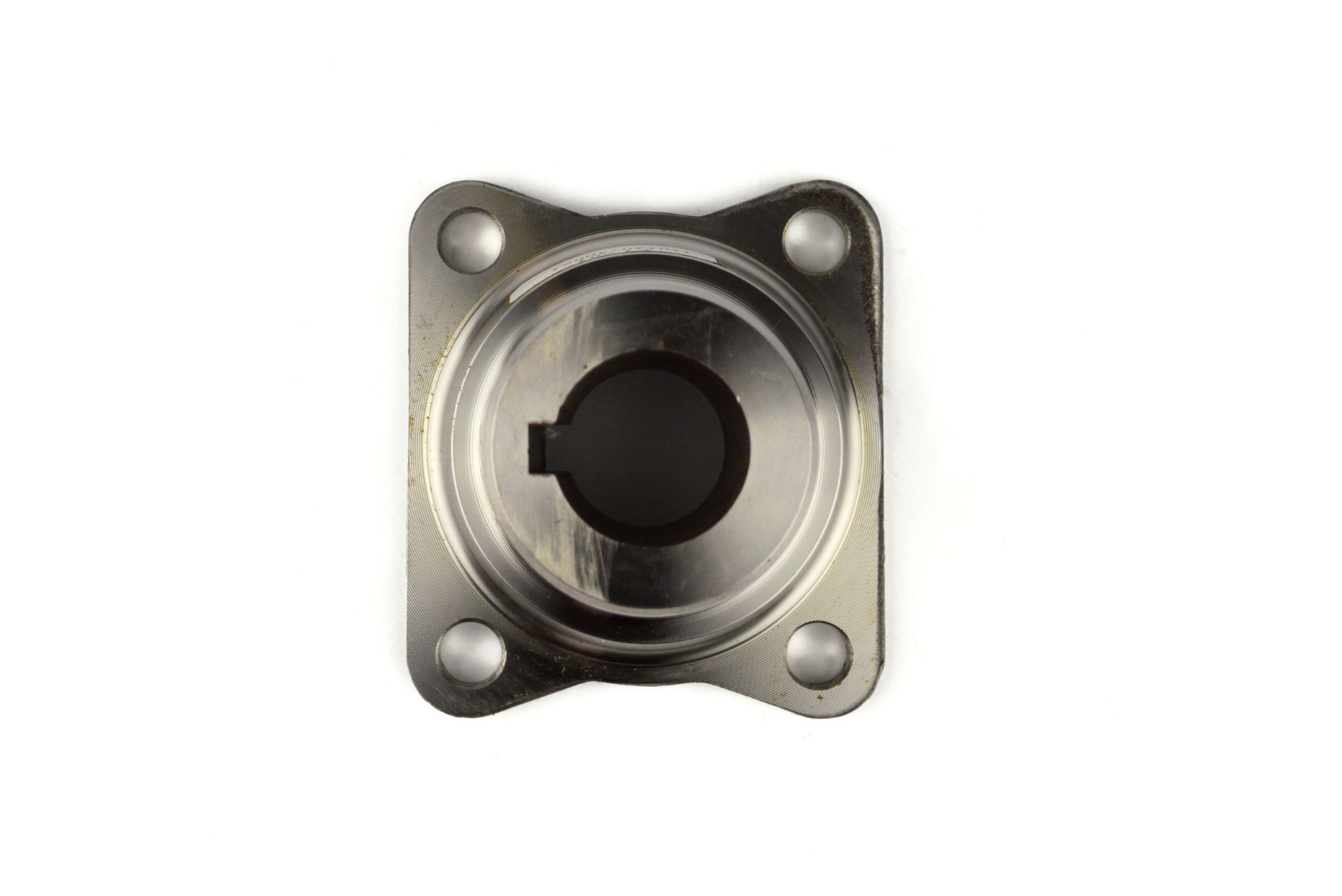

Drive Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 3-1-604

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1350
Flange Type	Rectangle
Prop 65	NO
Length Thru Hole (F) In.	1.500
Number Of Holes	4
Bolt Hole Circle Diameter In	3.750
Flange Diameter/Width	4.625
Flange Hole Diameter	0.438
Ground Hub Diameter (E) In.	2.125
Keyway Width In.	0.312
Major Bore Diameter (D) In.	1.250
Pilot Diameter(in)	2.750 - FEMALE
SAE Taper	1.250 SAE TAPER
Brake Drum Pilot Diameter	3.000
Flange Face To End Of Hub (G)	2.437
Country of Origin	US
Condition	New
