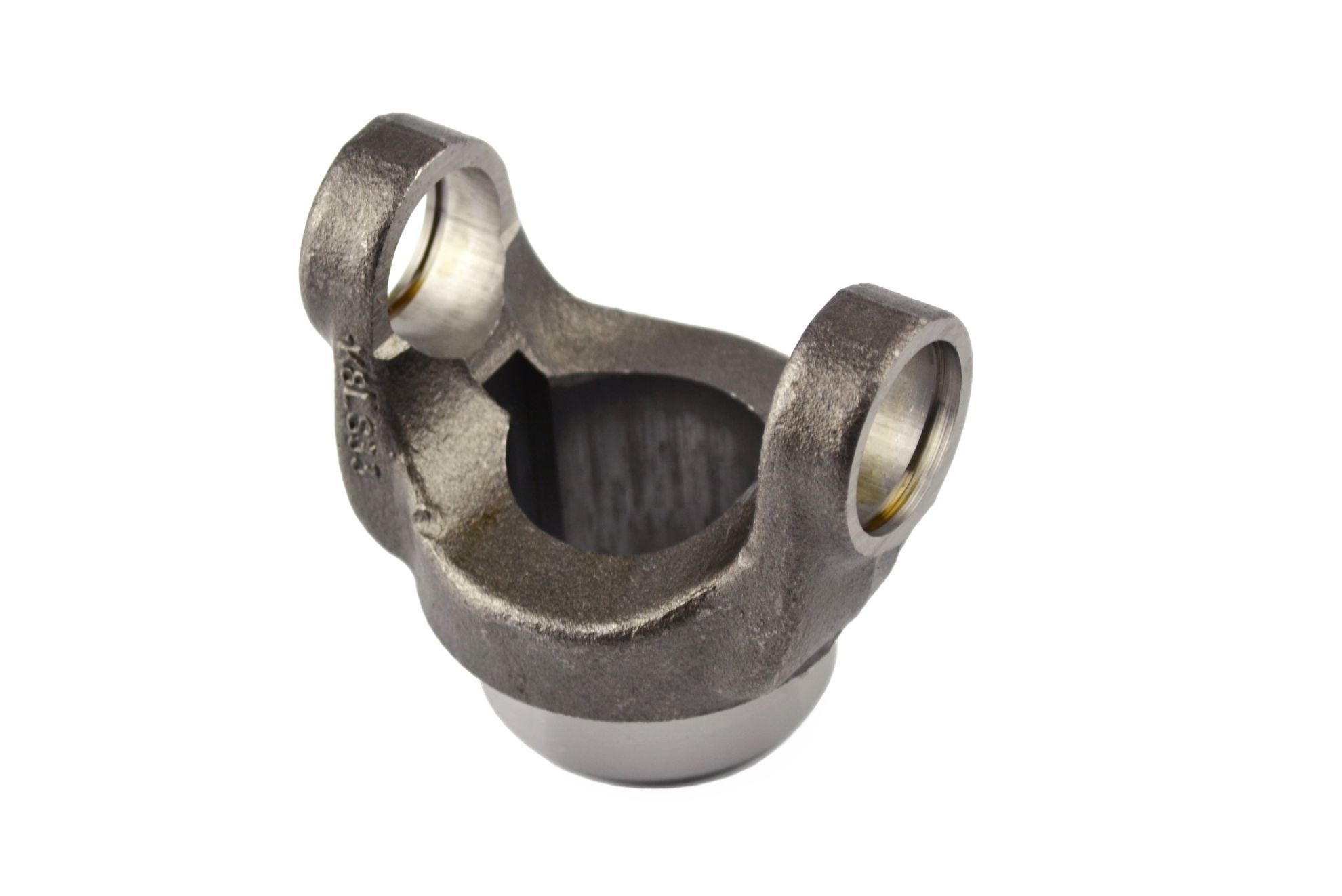

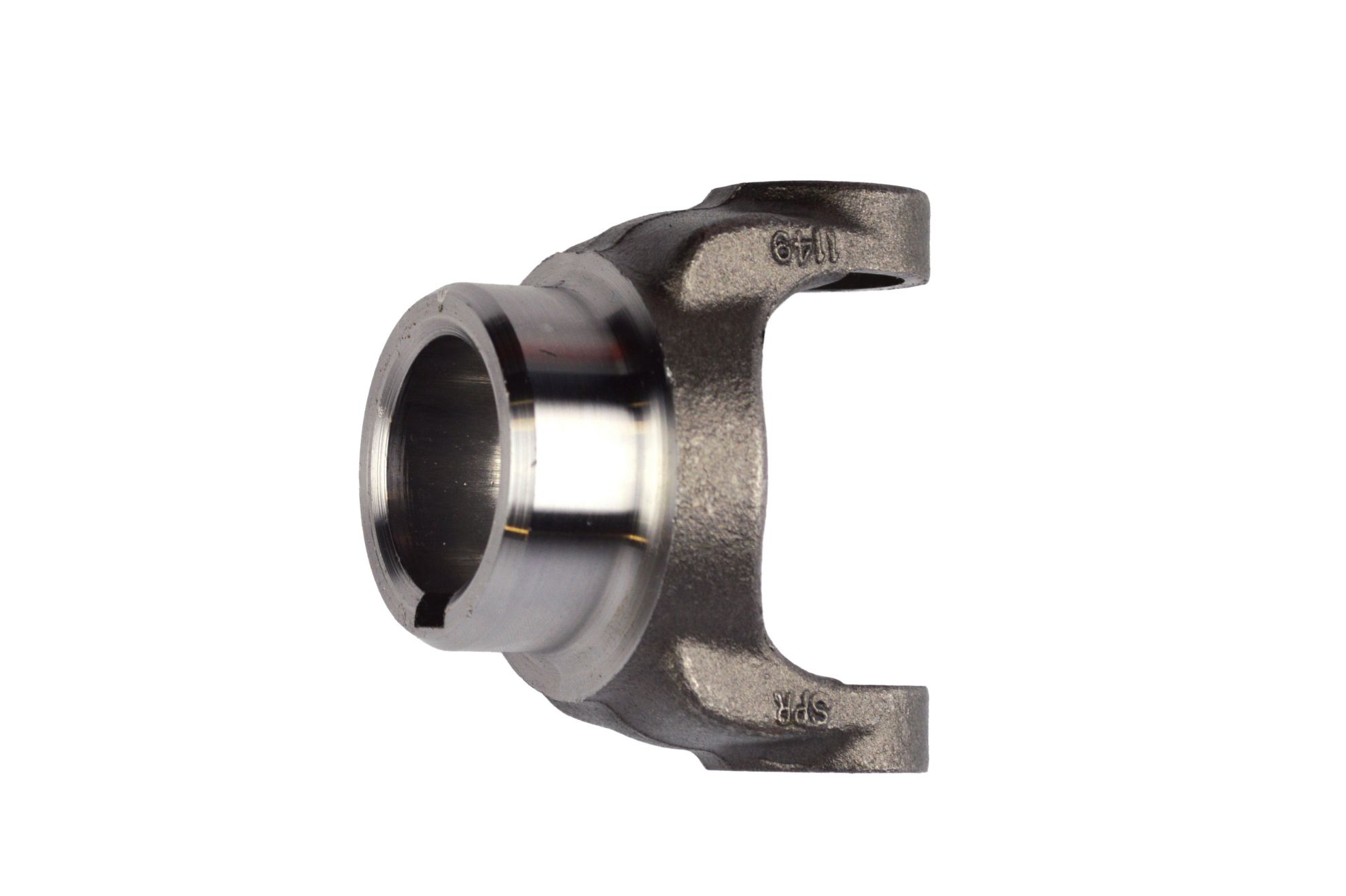

Spicer Drive Shaft End Yoke - 2-4-1233

Name: Spicer Drive Shaft End Yoke - 2-4-1233
SKU: 2-4-1233
Availability: OutOfStock

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 2-4-1233

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
C/L To End Hub S	2.562
Joint Angle #1	17
Prop 65	NO
Material	Steel
Type	Straight Round Hole
Hub Diameter R	2.125
Involute Spline	N
Outside Yoke Dimension In.(E)	3.469
Yoke Bearing Dimension (In) D	1.062
Set Screw Hole Diameter (In)	0.375
Set Screw Location W	6
Sae Keyway Width (In) X	0.375
Yoke Style	SR
Hole Diameter (In) P	1.500
Keyway Location W	12
Hole Diameter - Min	1.4995
Keyway Width - Max	0.375
Keyway Width - Min	0.374
Hole Diameter - Max	1.5005
Country of Origin	US
Condition	New
