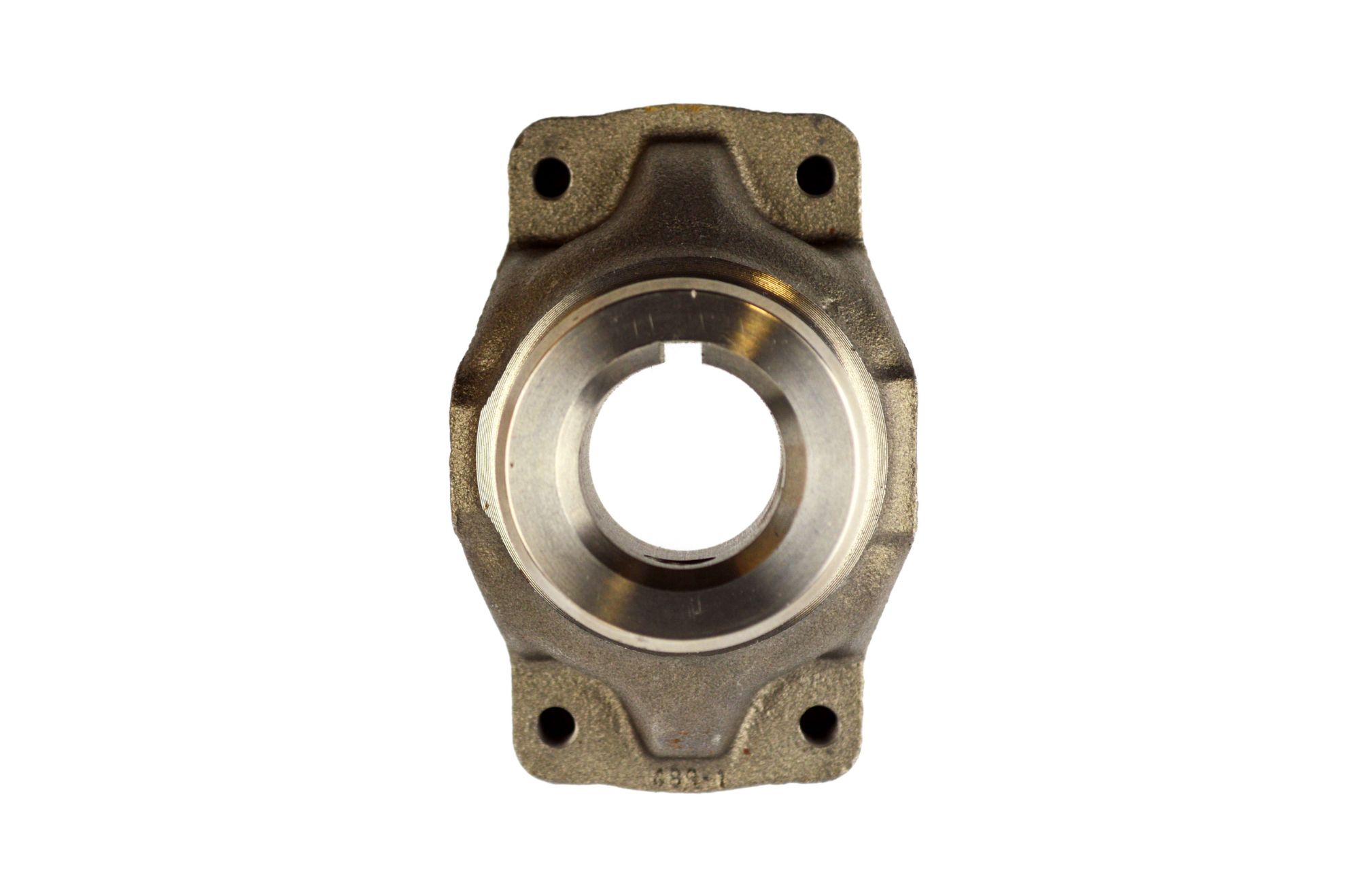

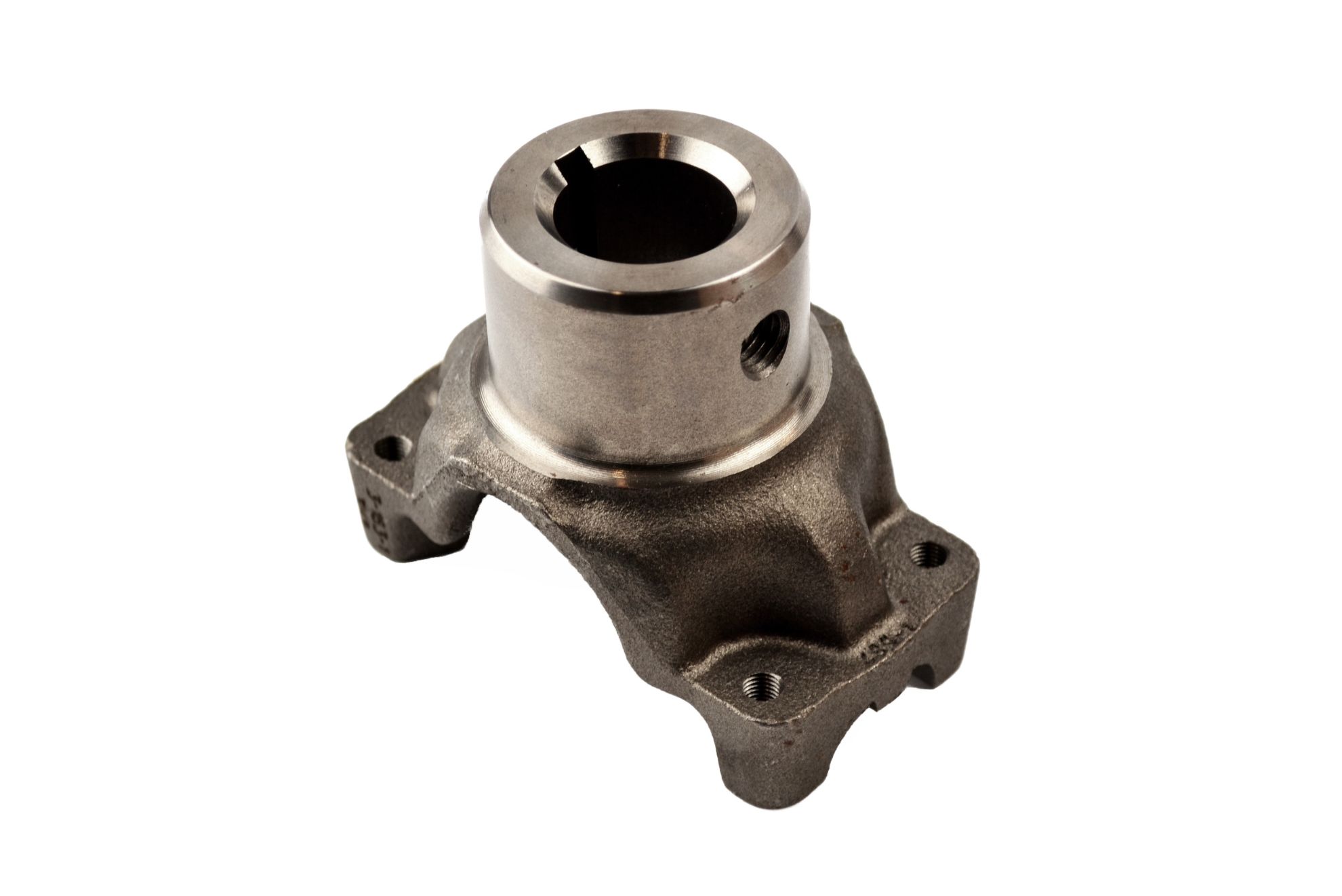

Spicer Drive Shaft End Yoke - 3-4-163-1

Name: Spicer Drive Shaft End Yoke - 3-4-163-1
SKU: 3-4-163-1
Availability: OutOfStock

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 3-4-163-1

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1410
Material	Steel
Type	Straight Round Hole
Hub Diameter R	2.250
Involute Spline	N
Outside Yoke Dimension In.(E)	4.188
Yoke Bearing Dimension (In) D	1.188
Yoke Style	BS
C/L To End Hub S	3.700
Prop 65	NO
Sae Keyway Width (In) X	0.250
Set Screw Location W	6
Set Screw Hole Diameter (In)	0.500
Hole Diameter - Max	1.2505
Hole Diameter - Min	1.2495
Keyway Width - Max	0.253
Keyway Width - Min	0.251
Hole Diameter (In) P	1.250
Keyway Location W	12
Country of Origin	US
Condition	New
