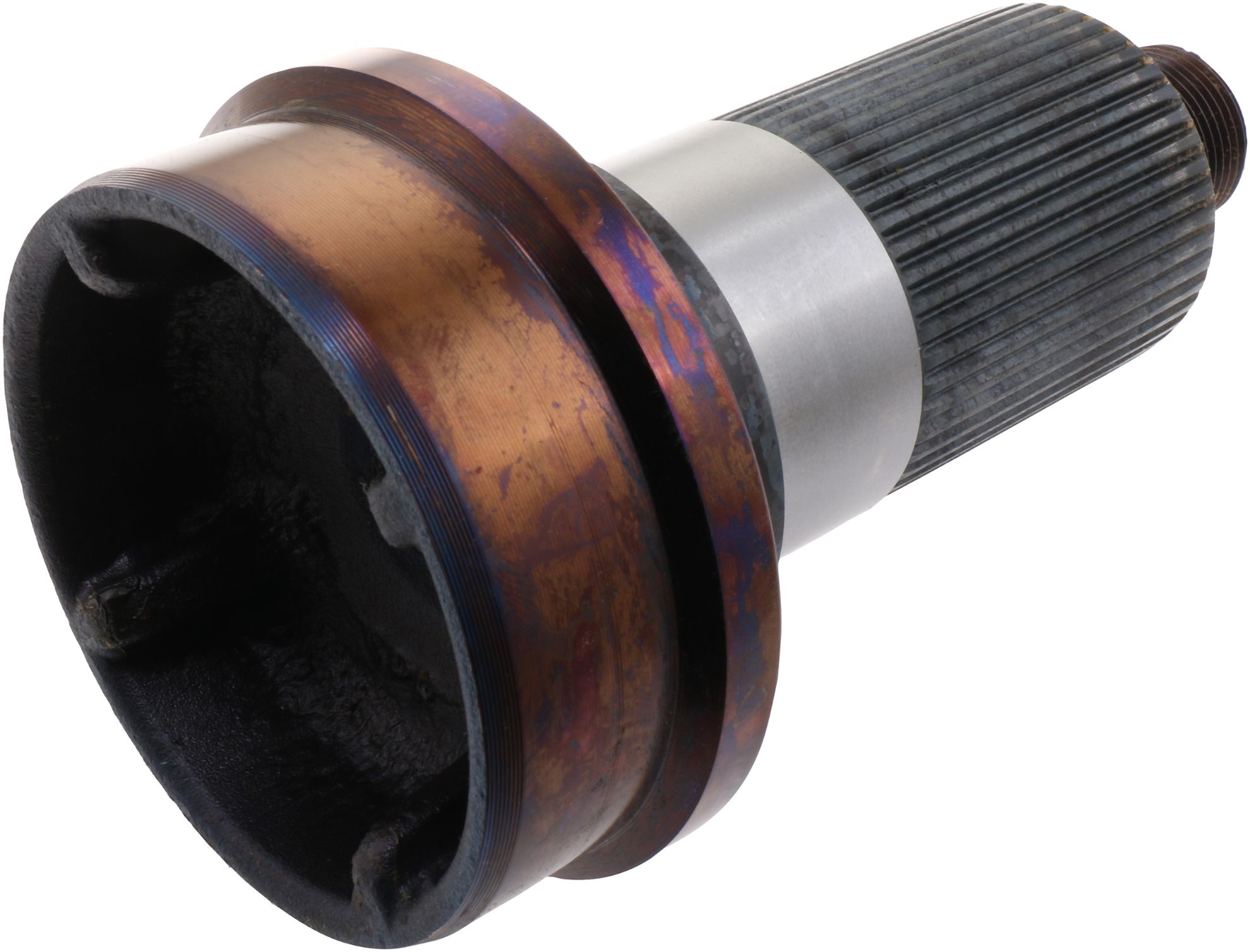

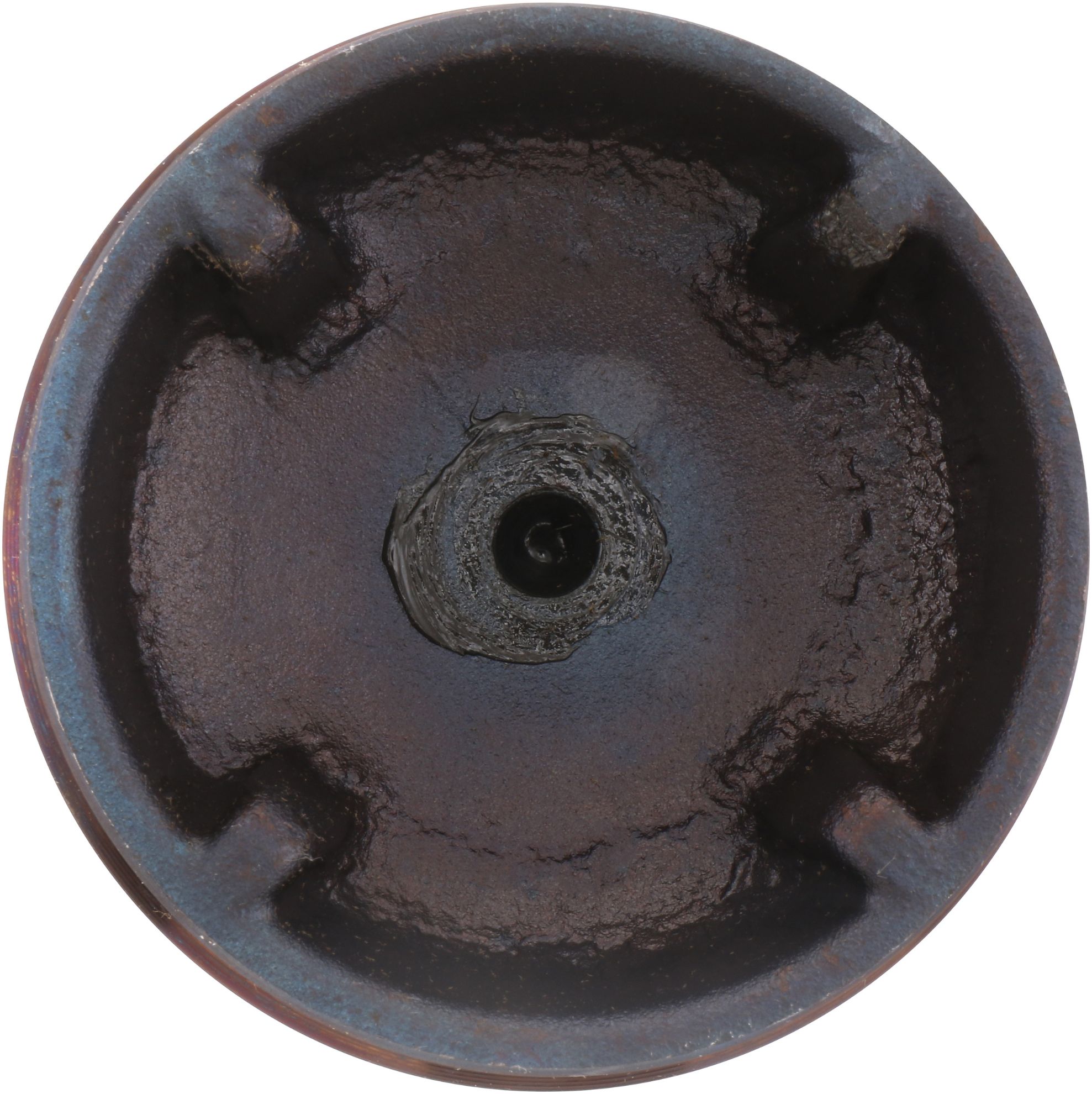

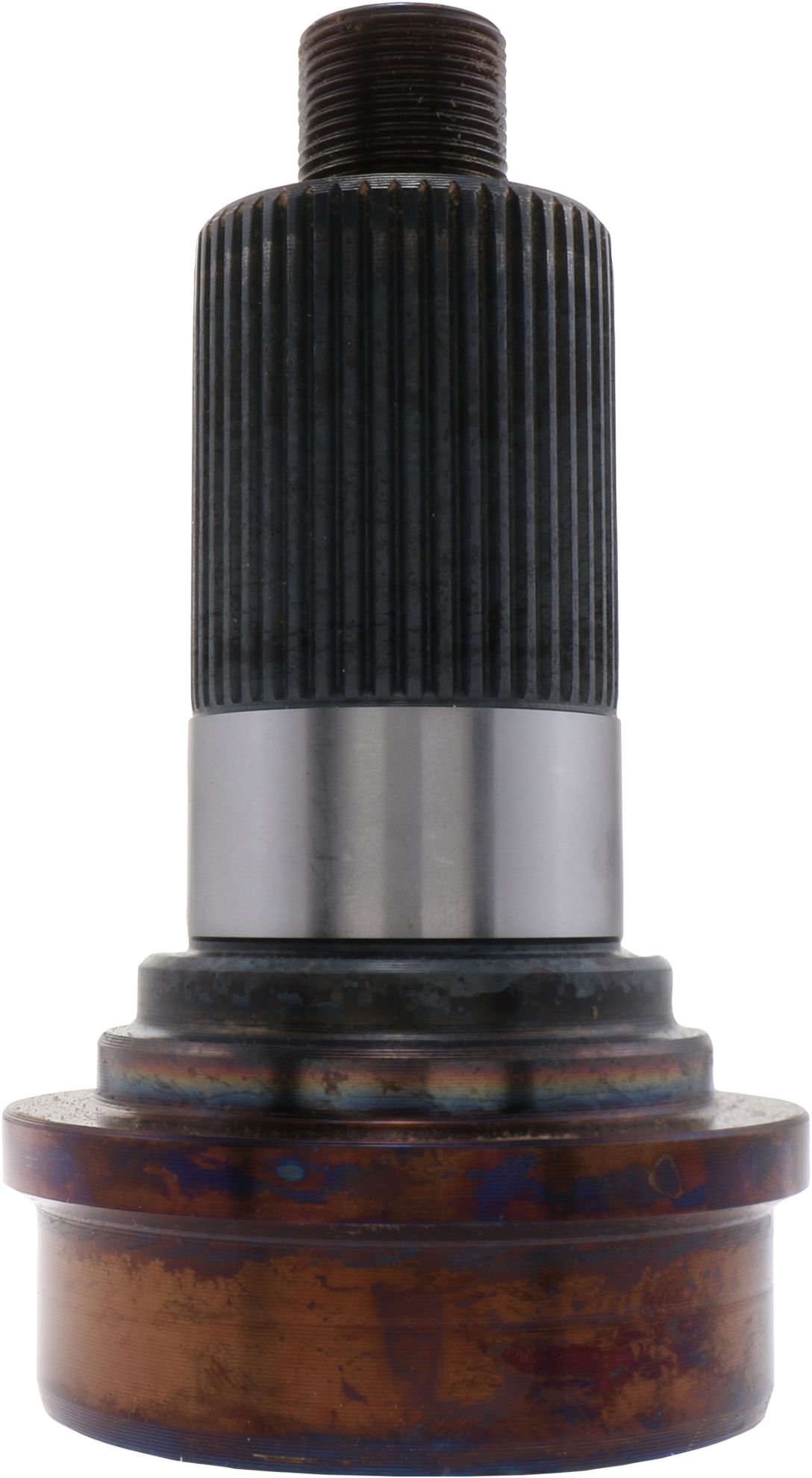

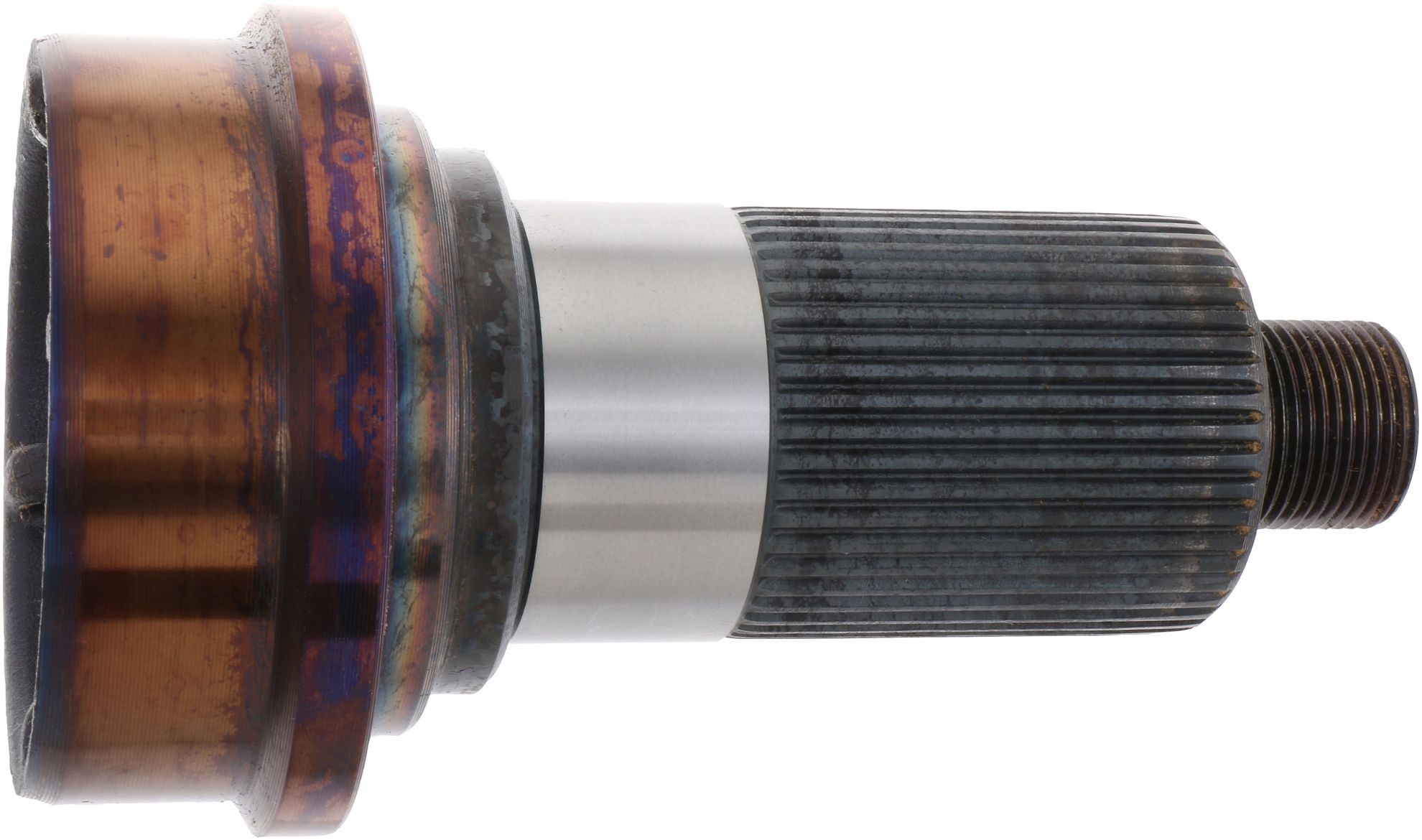

Spicer Drive Shaft Midship Stub Shaft - 140-53-21

Name: Spicer Drive Shaft Midship Stub Shaft - 140-53-21
SKU: 140-53-21
Availability: InStock

Drive Shaft Midship Stub Shaft

Manufacturer: Spicer

Manufacturer part number: 140-53-21

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Thread Size	M30X2-6G
Spline O.D.	2.350
Prop 65	NO
Fits Tube Diameter	4.330
Involute	Y
Fits Tube Wall	.197
Butt Diameter	3.957
Bearing Diameter (C) In.	2.362
Bearing Diameter (Max)	2.3622
Spline End To Weld (K) In.	5.311
Spline Length (L) In	2.618
Bearing Diameter (Min)	2.3617
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.886
Shoulder Length (G) In.	.811
Spline End To Brg Shoulder (Y)	4.000
Number of Splines	46 I
Country of Origin	US
Condition	New
