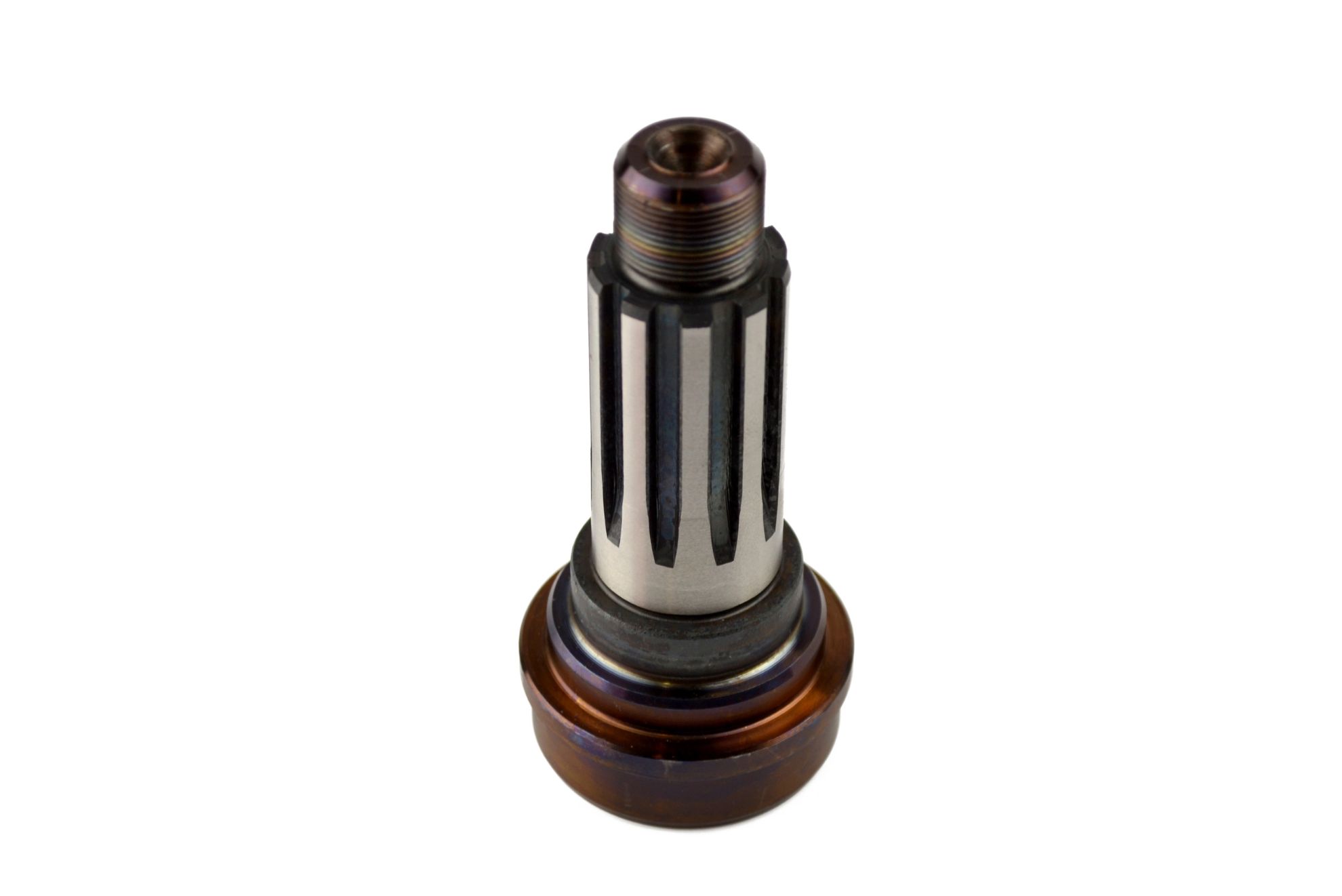

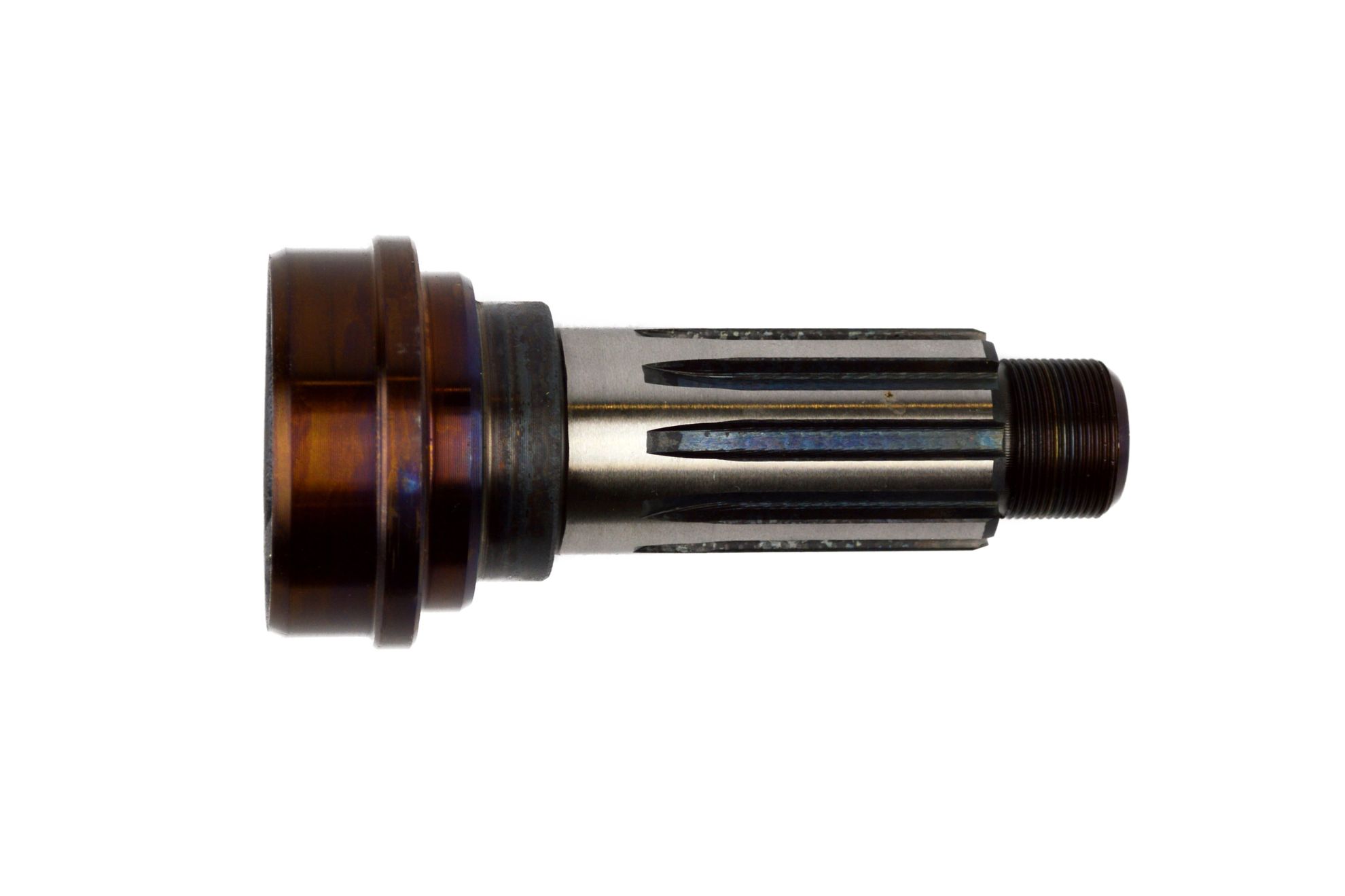

Spicer Drive Shaft Midship Stub Shaft - 2-53-1191

Name: Spicer Drive Shaft Midship Stub Shaft - 2-53-1191
SKU: 2-53-1191
Availability: OutOfStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 2-53-1191

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1210-1350
Material	Steel
Thread Size	1.000-20
Style	2
Prop 65	NO
Spline O.D.	1.375
Spline End To Weld (K) In.	3.750
Spline Length (L) In	1.781
Bearing Diameter (Min)	1.3779
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	1.688
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	2.688
Number of Splines	10
Fits Tube Diameter	2.500
Involute	N
Fits Tube Wall	.065
Butt Diameter	2.345
Bearing Diameter (C) In.	1.378
Bearing Diameter (Max)	1.3784
Country of Origin	MX
Condition	New
