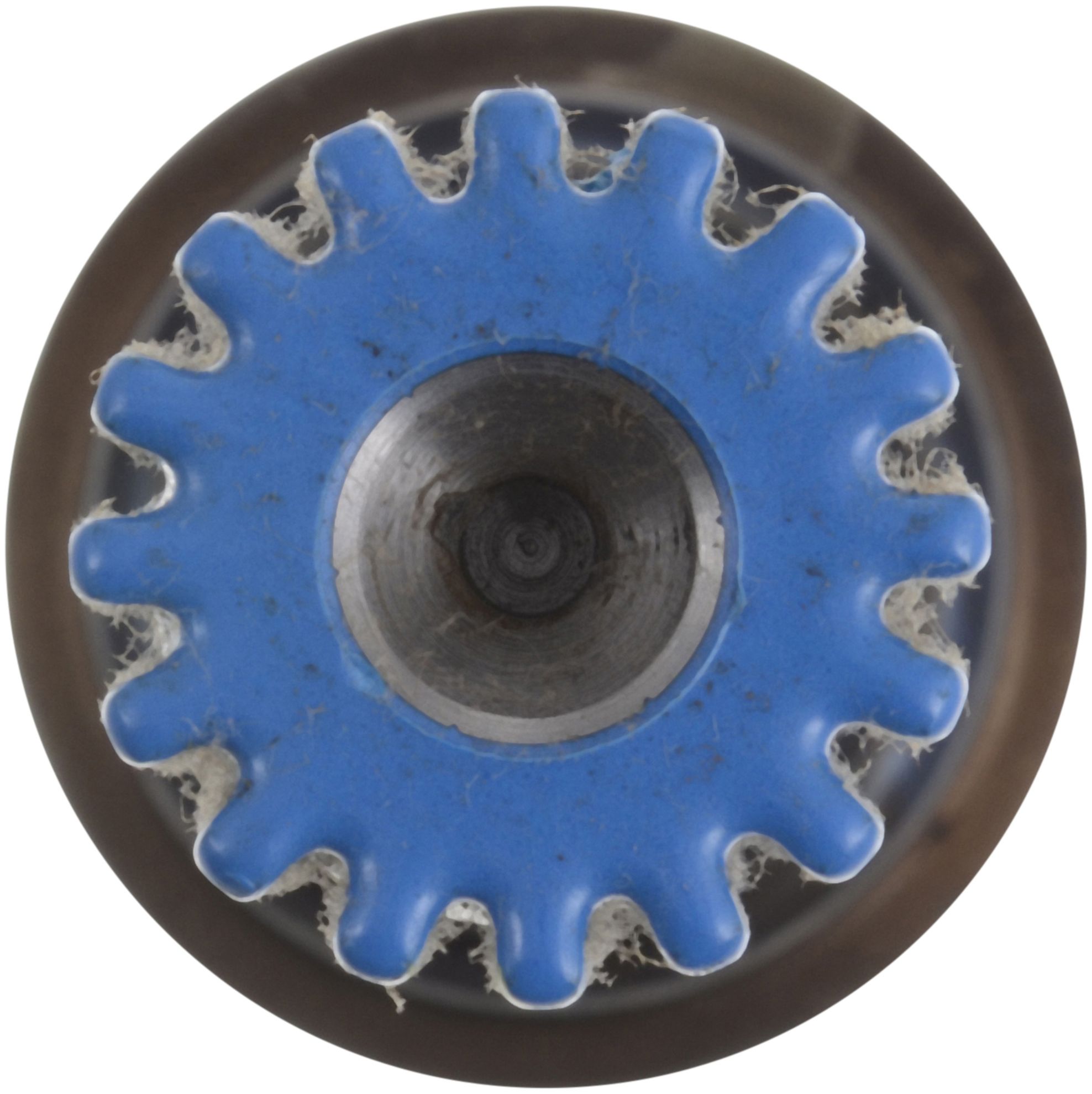

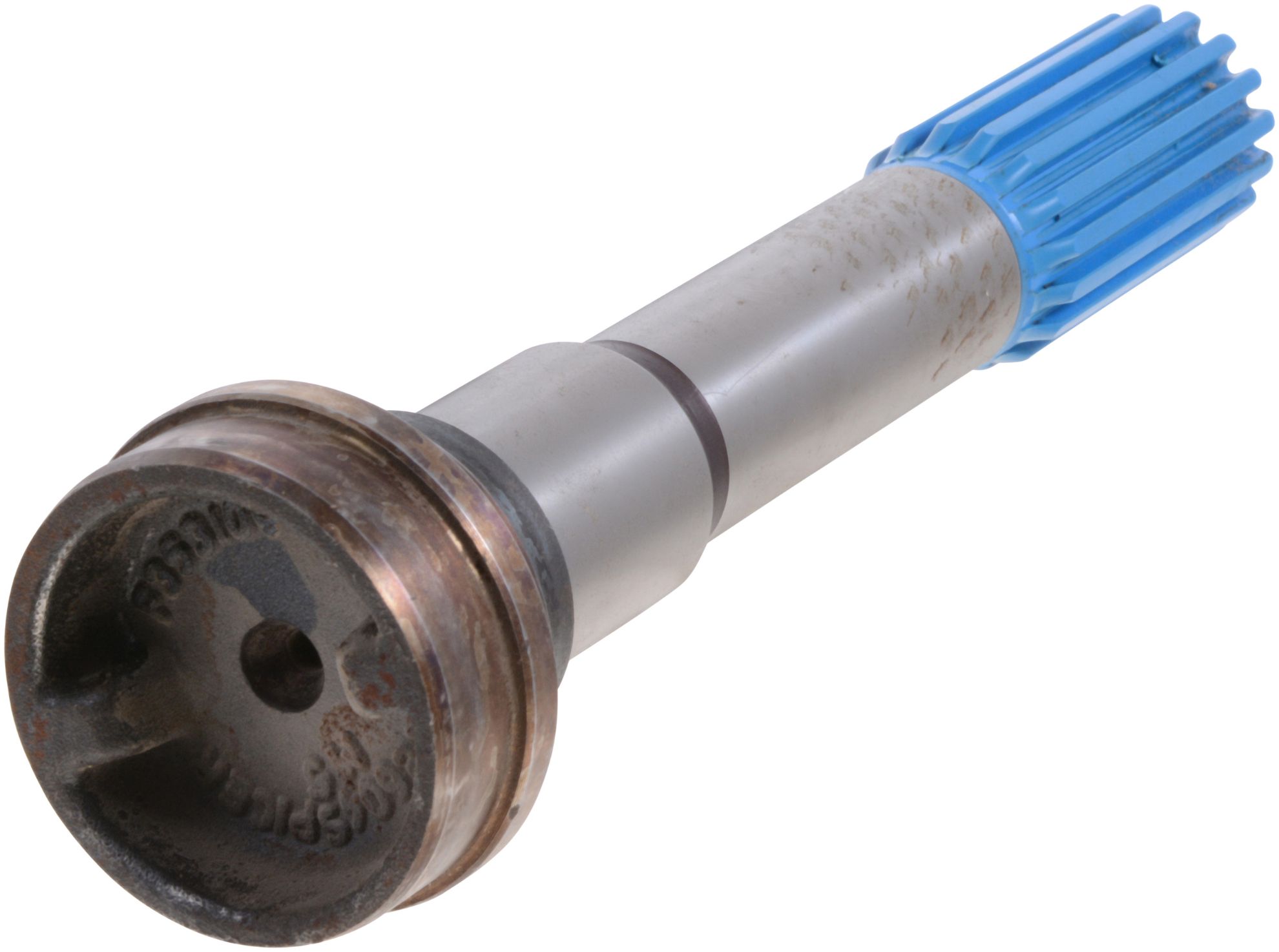

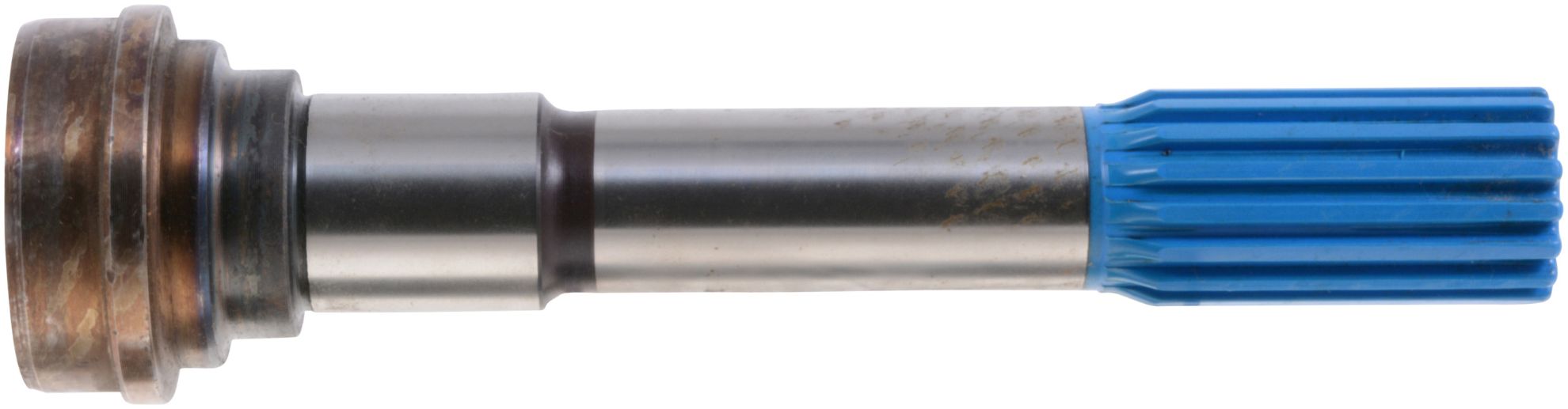

Picture of Spicer Drive Shaft Midship Stub Shaft - 2-53-681
Picture of Spicer Drive Shaft Midship Stub Shaft - 2-53-681 Picture of Spicer Drive Shaft Midship Stub Shaft - 2-53-681 Picture of Spicer Drive Shaft Midship Stub Shaft - 2-53-681

Spicer Drive Shaft Midship Stub Shaft - 2-53-681

DRIVE SHAFT MIDSHIP STUB SHAFT
Manufacturer: Spicer
Manufacturer part number: 2-53-681
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name Attribute value
Series 1210-1350
Material Steel
Style 2
Prop 65 NO
Spline O.D. 1.3750
For Use With Outboard Slip Yoke
Shoulder Diameter (B) In. 1.688
Shoulder Length (G) In. 0.812
Spline End To Brg Shoulder (Y) 7.812
Bearing Diameter Length 1.54
Bearing Diameter Radius 0.19
Fits Tube Diameter 2.5
Involute N
Fits Tube Wall 0.083
Butt Diameter 2.345
Bearing Diameter (C) In. 1.378
Bearing Diameter (Max) 1.3784
Spline End To Weld (K) In. 8.875
Spline Length (L) In 2.500
Bearing Diameter (Min) 1.3779
Number of Splines 15/16
Country of Origin MX
Condition New
