Spicer Drive Shaft Midship Stub Shaft - 250-53-11

Name: Spicer Drive Shaft Midship Stub Shaft - 250-53-11
SKU: 250-53-11
Availability: InStock

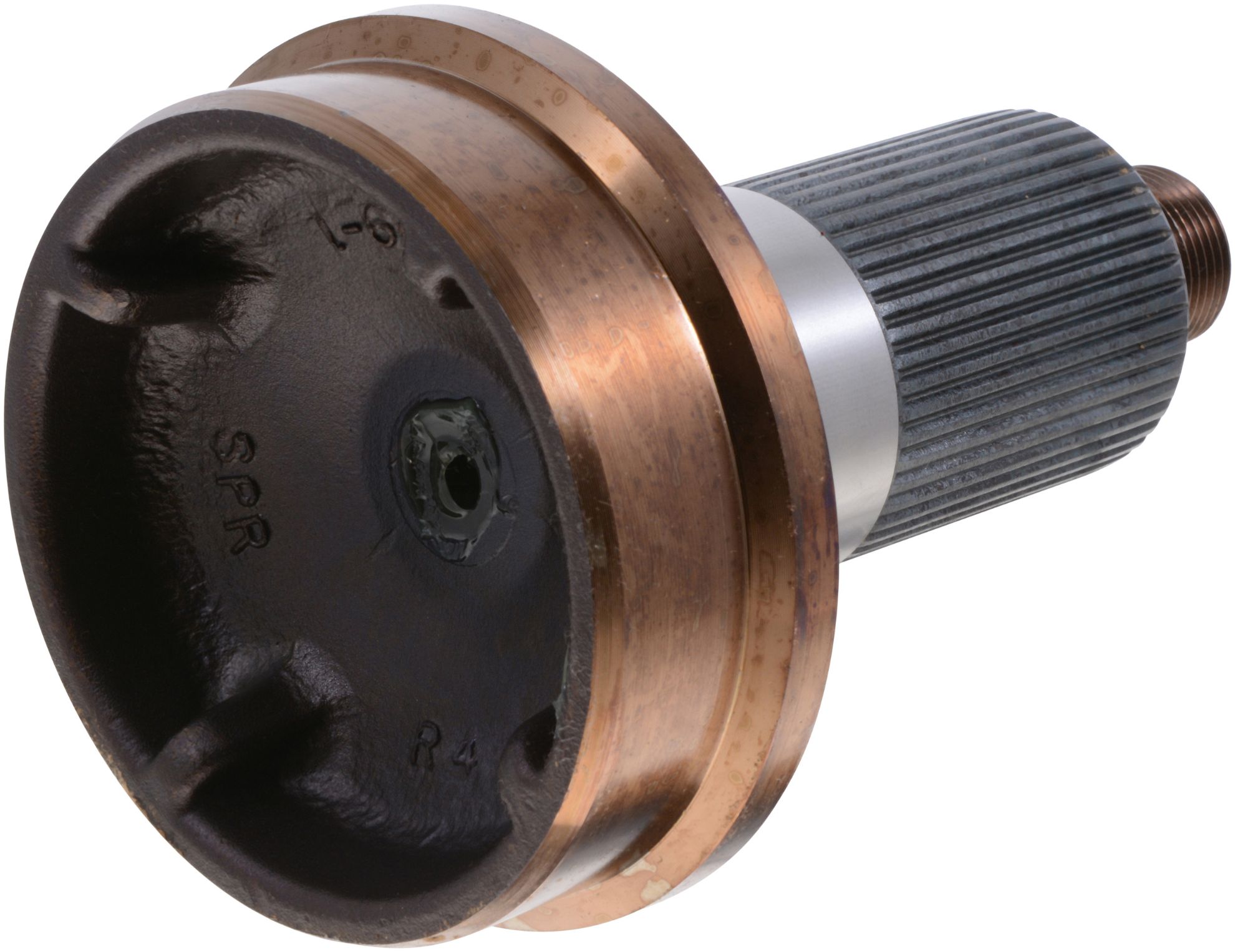

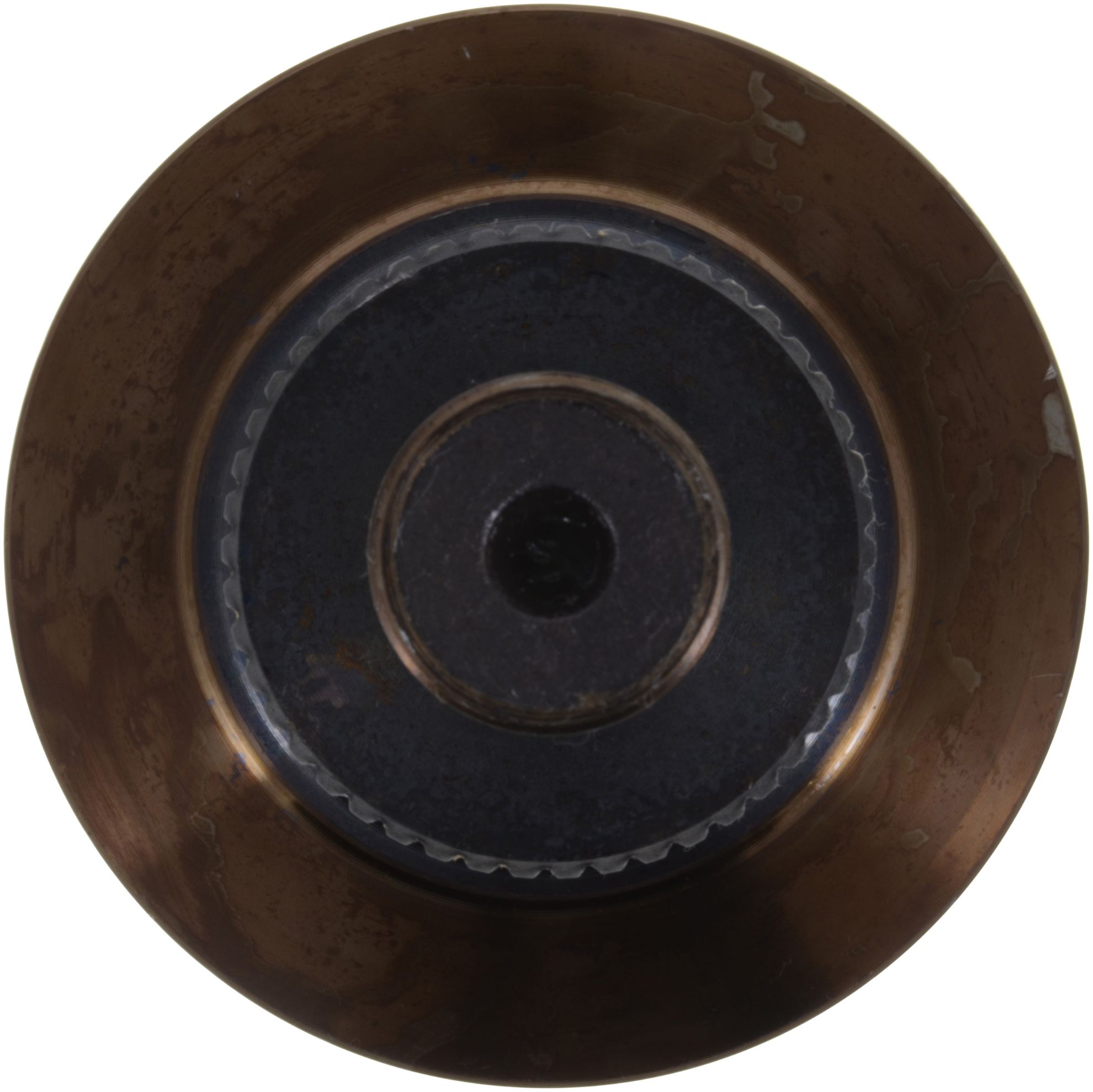

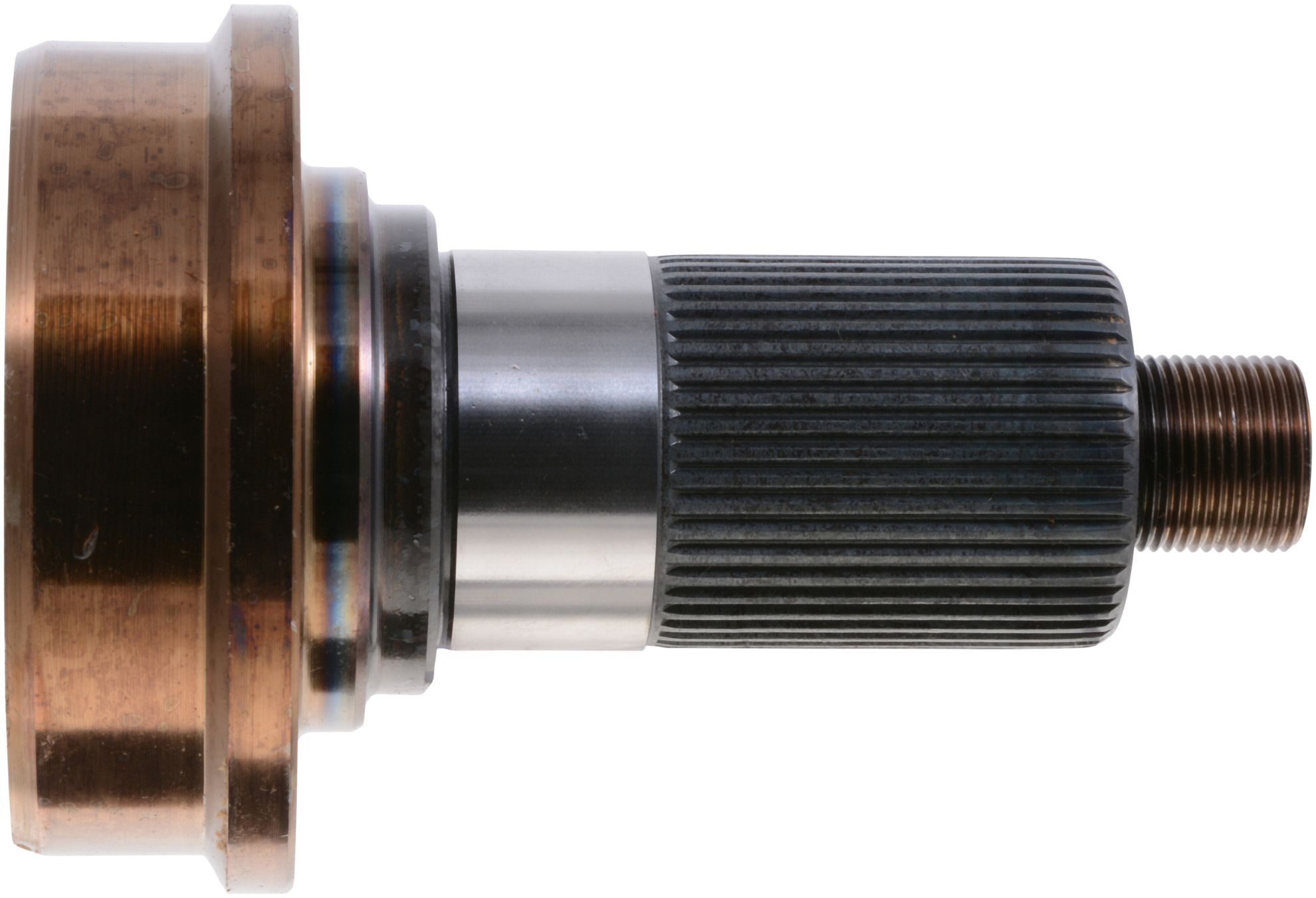

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 250-53-11

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL250
Material	Steel
Style	2
Thread Size	M30X2-6G
Prop 65	NO
Spline O.D.	2.350
Fits Tube Diameter	5.197
Involute	Y
Fits Tube Wall	.157
Butt Diameter	4.746
Bearing Diameter (C) In.	2.362
Bearing Diameter (Max)	2.3622
Spline End To Weld (K) In.	5.291
Spline Length (L) In	2.618
Bearing Diameter (Min)	2.3617
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.886
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	3.980
Number of Splines	46 I
Country of Origin	IN
Condition	New
