Picture of Spicer Drive Shaft Midship Stub Shaft - 3-53-1191
Picture of Spicer Drive Shaft Midship Stub Shaft - 3-53-1191 Picture of Spicer Drive Shaft Midship Stub Shaft - 3-53-1191 Picture of Spicer Drive Shaft Midship Stub Shaft - 3-53-1191

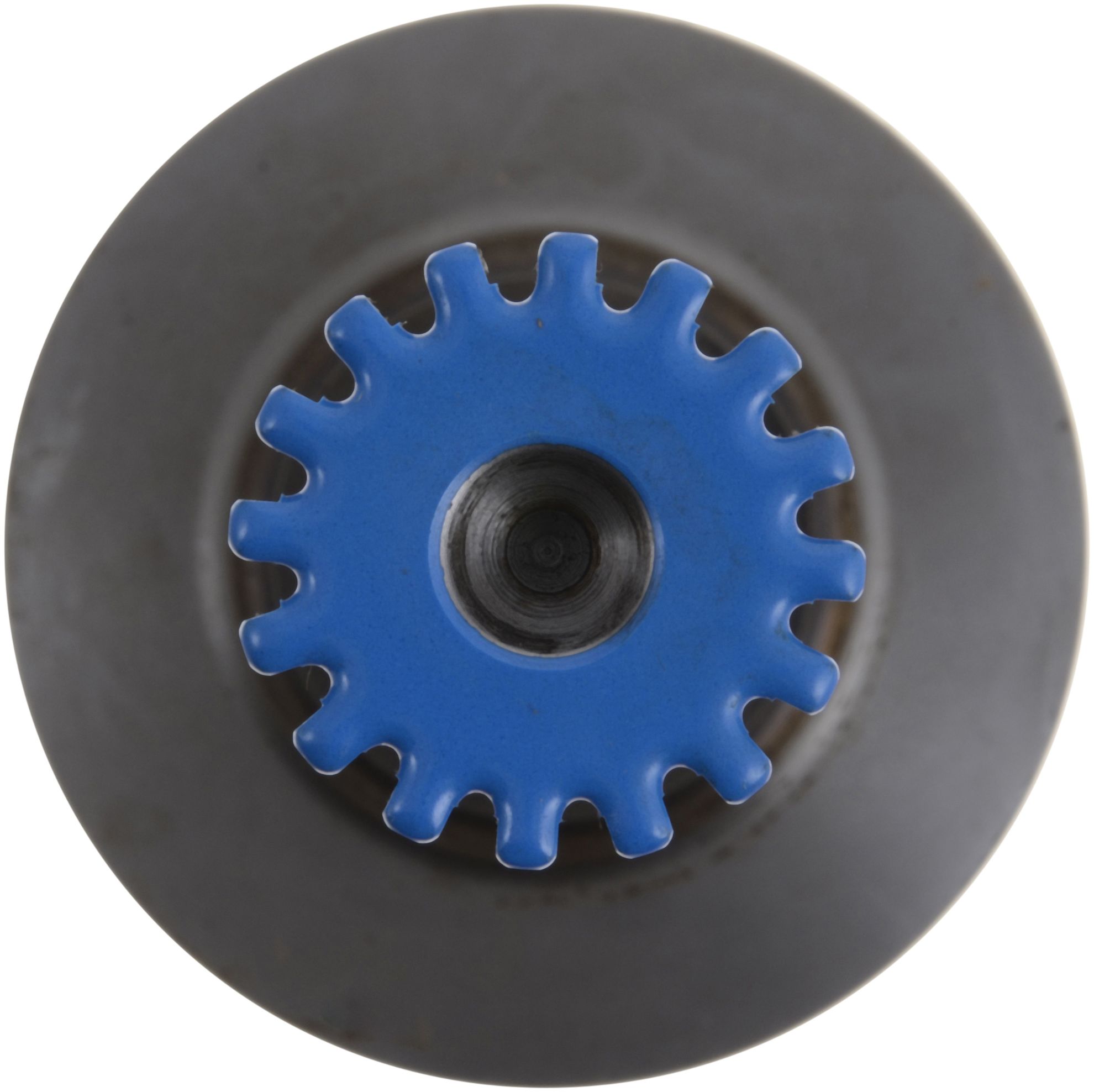

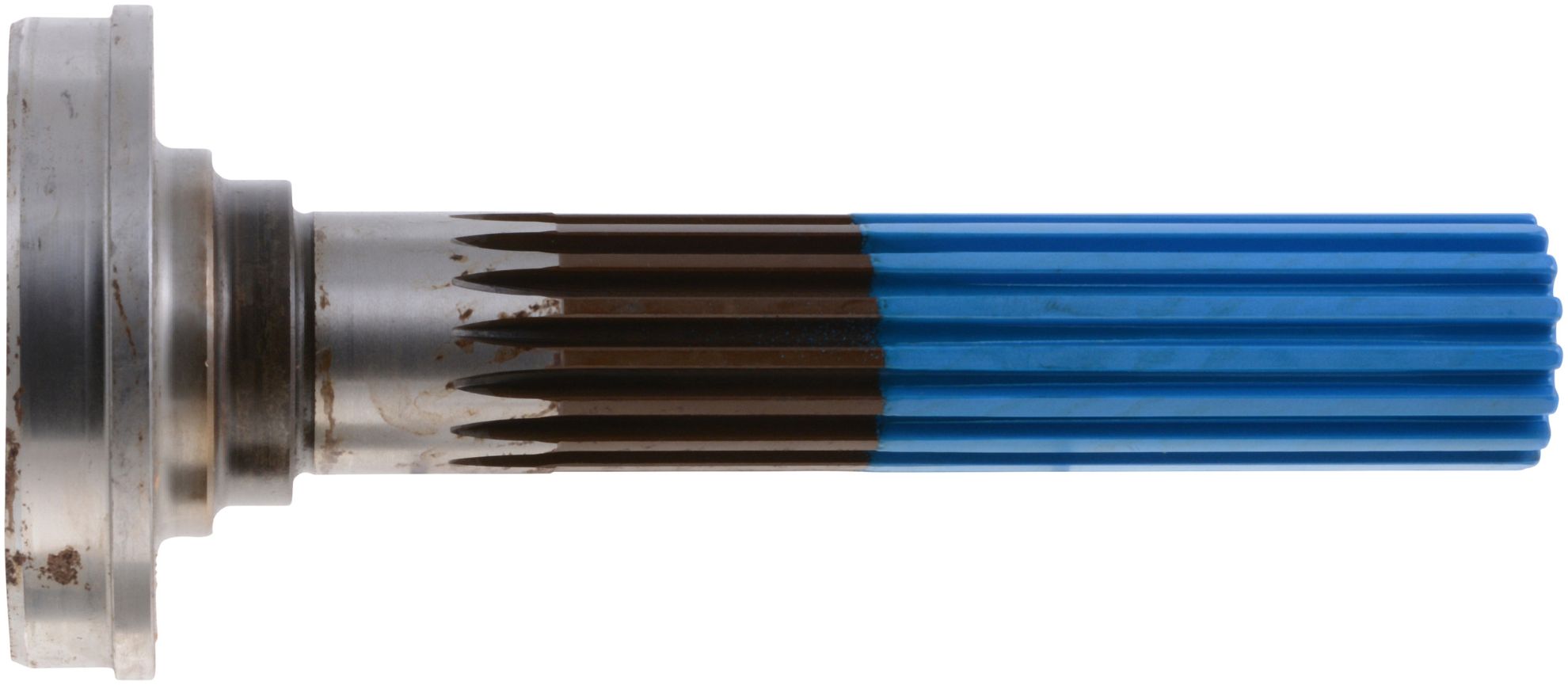

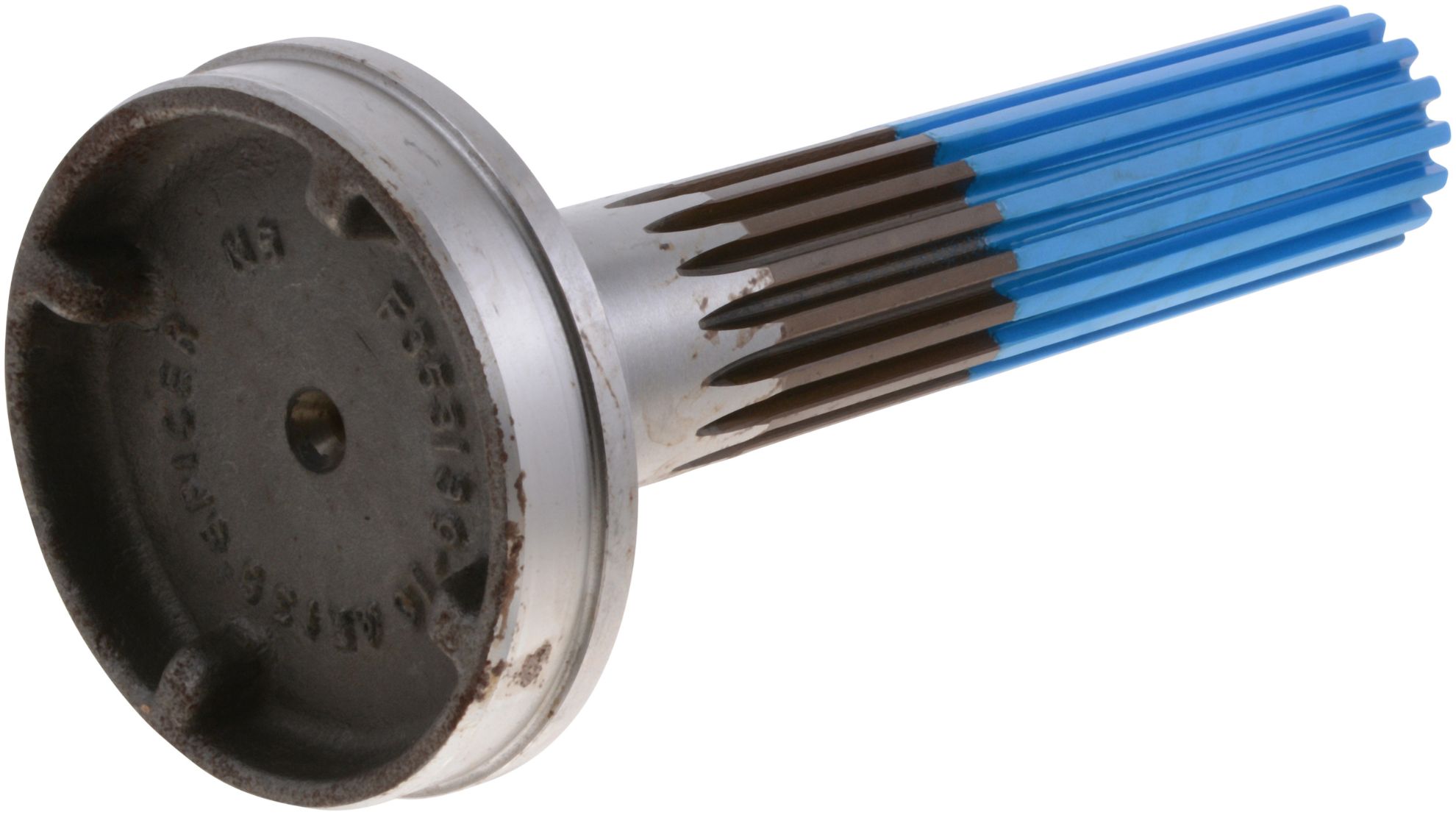

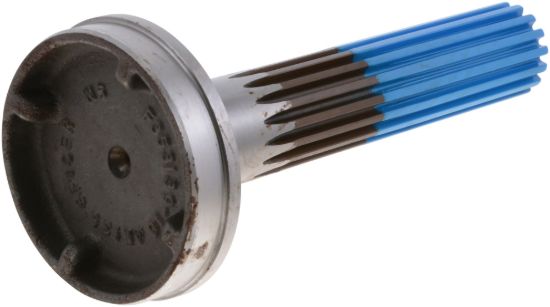

Spicer Drive Shaft Midship Stub Shaft - 3-53-1191

DRIVE SHAFT MIDSHIP STUB SHAFT
Manufacturer: Spicer
Manufacturer part number: 3-53-1191
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name Attribute value
Series 1310-1550
Material Steel
Style 1
Prop 65 NO
Fits Tube Diameter 4
Involute N
Fits Tube Wall 0.083
Bearing Diameter (Min) 1.5747
For Use With Outboard Slip Yoke
Shoulder Diameter (B) In. 1.940
Shoulder Length (G) In. 0.812
Spline End To Brg Shoulder (Y) 7.470
Bearing Diameter Length 1.53
Spline Length (L) In 5.938
Spline End To Weld (K) In. 8.531
Bearing Diameter (Max) 1.5752
Bearing Diameter (C) In. 1.575
Butt Diameter 3.845
Number of Splines 16
Spline O.D. 1.5620
Country of Origin MX
Condition New
